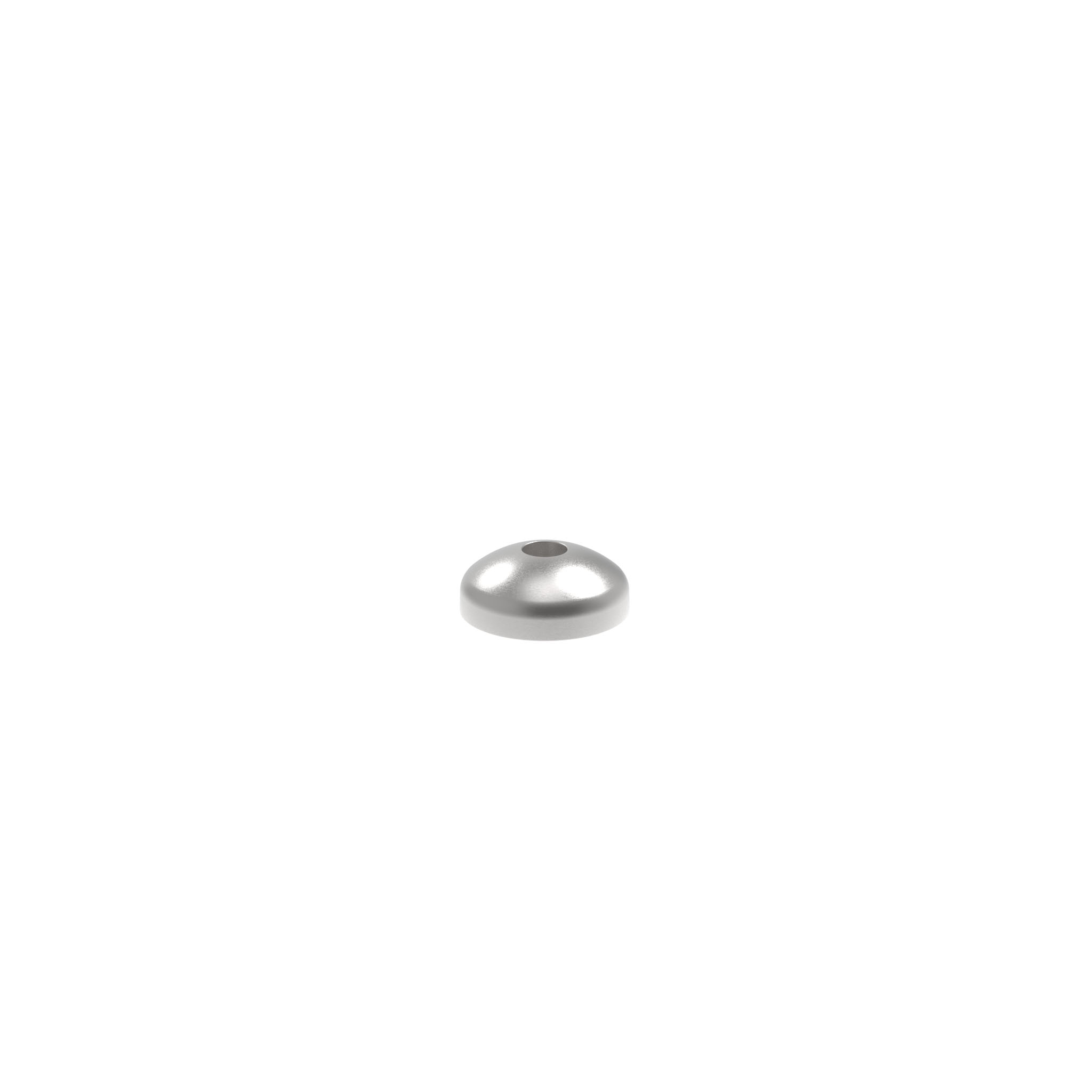

Base acier inox para patas ECO
0,00 €
Número de producto:
098E030E
Cantidad por Paquete:
100 piezas
Información sobre el producto "Base acier inox para patas ECO"
Países de Entrega:
En todo el mundo
Description:
Economical leveling foot for strong positioning on slightly uneven floors
Material:
Acero inoxidable SS316
Specials:
Other sizes, glued anti-slip plate on request
Superficie:
Liso
Tip:
Compatible Threaded Rod see 098EM08025E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip-Plate see 098EG030;
(ECO feet are provided factory assembled)
En todo el mundo
Description:
Economical leveling foot for strong positioning on slightly uneven floors
Material:
Acero inoxidable SS316
Specials:
Other sizes, glued anti-slip plate on request
Superficie:
Liso
Tip:
Compatible Threaded Rod see 098EM08025E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip-Plate see 098EG030;
(ECO feet are provided factory assembled)
| Model: | Acero inoxidable |
|---|---|
| Cantidad por Paquete: | 100 piezas |
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Peso (g): | 20.0 |
| (ECLASS 6.0): | 90900102 |
| (ECLASS 7.0): | 90900102 |
| (ECLASS 8.0): | 90900102 |
| (ECLASS 9.0): | 90900102 |
| (ECLASS 10.0): | 90900102 |
| (ECLASS 11.0): | 90900102 |
| (ECLASS 12.0): | 90900102 |
| (ECLASS 13.0): | 90900102 |
| (ECLASS 15.0): | 90900102 |
| (ECLASS 16.0): | 23010704 |
| ECLASS_V14.0: | 90900102 |
| Numero de ERP: | 104498 |
| Zolltarifnummer: | 73269098900 |
Variantes

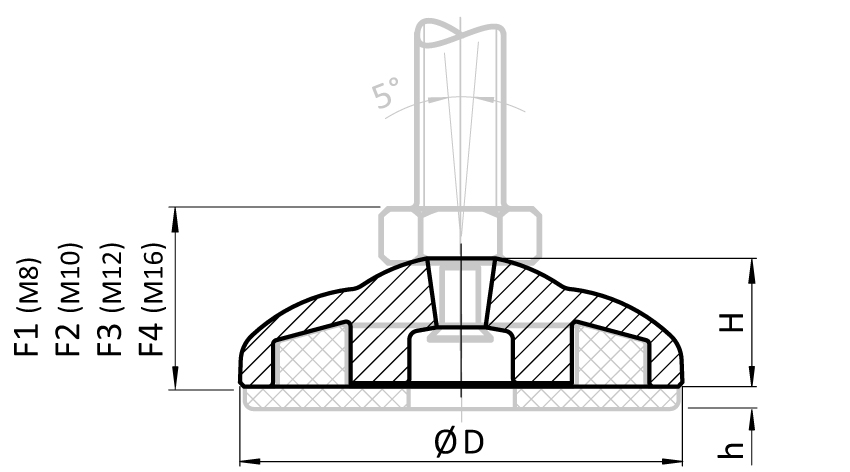

| Número de producto | Version | Base | Fmax (N) | D (mm) | F1 (mm) | F2 (mm) | F3 (mm) | F4 (mm) | H (mm) | h (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 098E030E | without anti-slip plate | 30 | 21580 | 29 | 16.0 | 16.5 | 17.5 | 20.0 | 11.5 | 2.0 |
| 098E030EG | with anti-slip plate | 30 | 21580 | 29 | 16.0 | 16.5 | 17.5 | 20.0 | 11.5 | 2.0 |
| 098E040E | without anti-slip plate | 40 | 23500 | 39 | 16.5 | 17.0 | 18.0 | 20.5 | 12.0 | 2.5 |
| 098E040EG | with anti-slip plate | 40 | 23500 | 39 | 16.5 | 17.0 | 18.0 | 20.5 | 12.0 | 2.5 |
| 098E050E | without anti-slip plate | 50 | 25500 | 50 | 19.0 | 19.5 | 20.5 | 23.0 | 15.3 | 3.0 |
| 098E050EG | with anti-slip plate | 50 | 25500 | 50 | 19.0 | 19.5 | 20.5 | 23.0 | 15.3 | 3.0 |
