Base acier inox para patas ECO

Información sobre el producto "Base acier inox para patas ECO"

Países de Entrega:
En todo el mundo

Description:

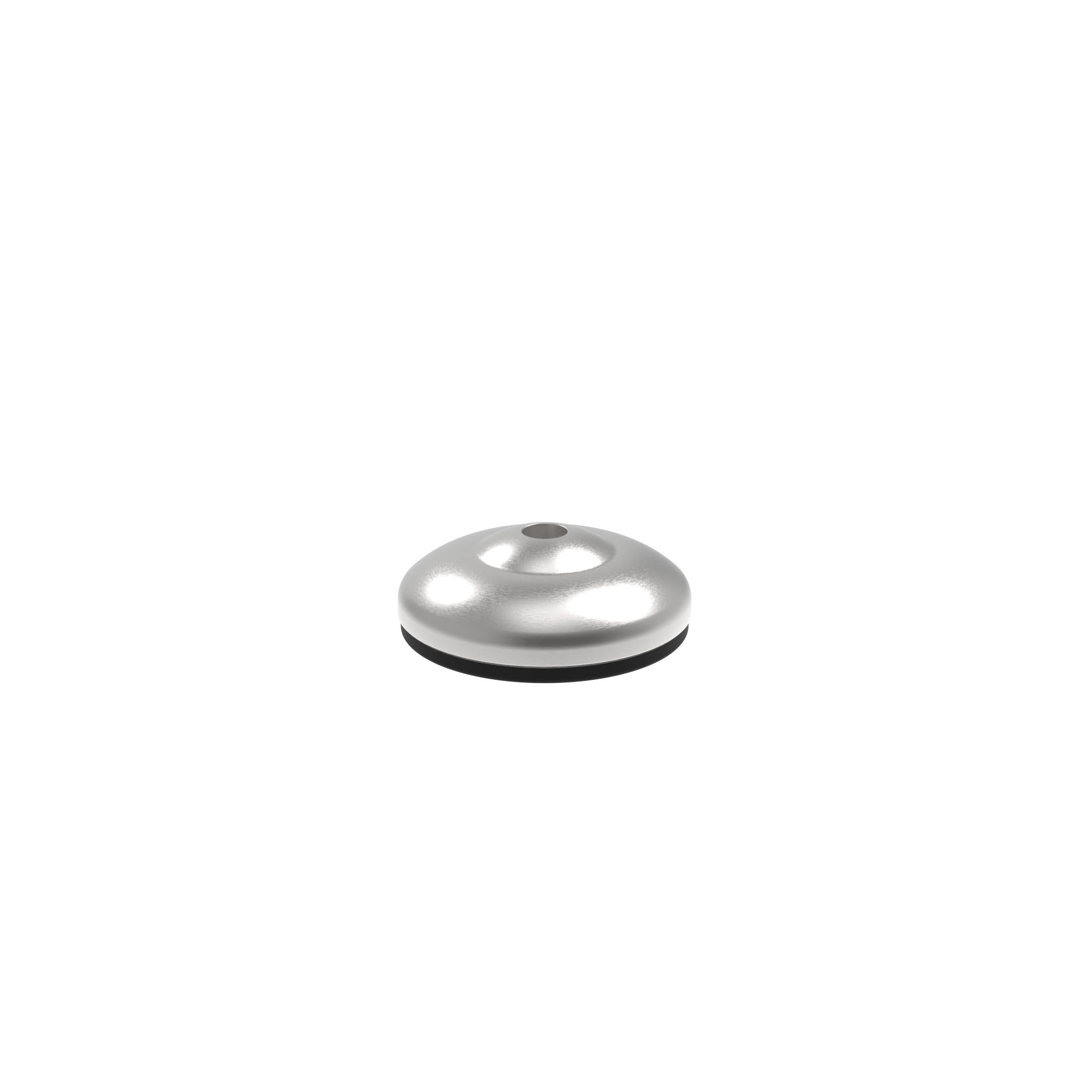

Economical leveling foot for strong positioning on slightly uneven floors

Material:
Acero inoxidable SS316

Specials:
Other sizes, glued anti-slip plate on request

Superficie:
Liso

Tip:
Compatible Threaded Rod see 098EM08025E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip-Plate see 098EG030;
(ECO feet are provided factory assembled)
Cantidad por Paquete: 100 piezas
Model: Acero inoxidable
Peso (g): 70.0
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 73269098900
Número de Arancel Aduanero de Exportación: 73269098
Numero de ERP: 104531

Variantes

Número de producto Base Fmax (N) D (mm) Version H (mm) F1 (mm) F2 (mm) F3 (mm) h (mm) F4 (mm)
098E030E 30 21580 29 without anti-slip plate 11.5 16.0 16.5 17.5 2.0 20.0
098E030EG 30 21580 29 with anti-slip plate 11.5 16.0 16.5 17.5 2.0 20.0
098E040E 40 23500 39 without anti-slip plate 12.0 16.5 17.0 18.0 2.5 20.5
098E040EG 40 23500 39 with anti-slip plate 12.0 16.5 17.0 18.0 2.5 20.5
098E050E 50 25500 50 without anti-slip plate 15.3 19.0 19.5 20.5 3.0 23.0
098E050EG 50 25500 50 with anti-slip plate 15.3 19.0 19.5 20.5 3.0 23.0
