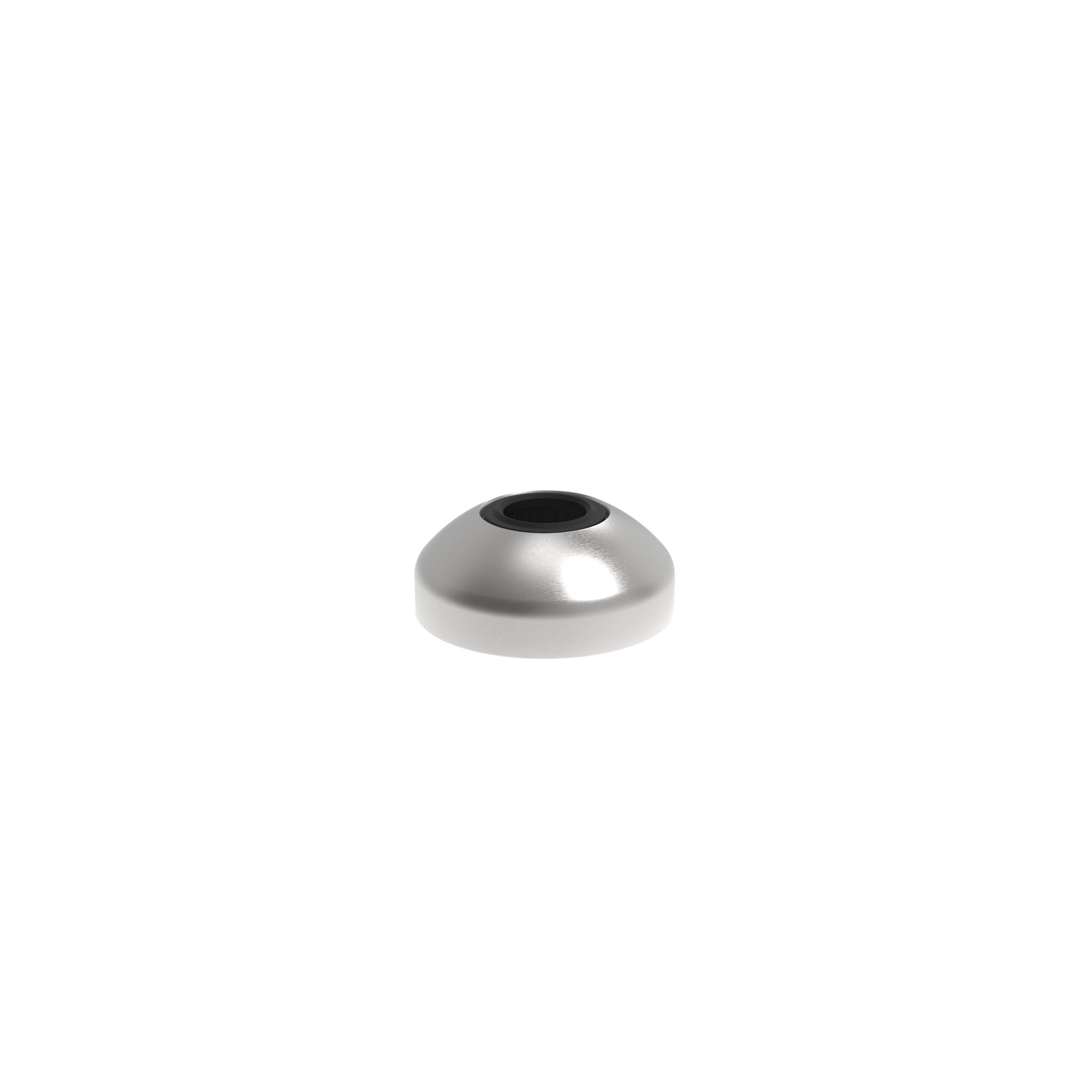

Base acier inox para patas giratorias, rótula 15

Información sobre el producto "Base acier inox para patas giratorias, rótula 15"

Países de Entrega:
En todo el mundo

Description:
A swiveling leveling foot for strong positioning on uneven floors

Material:
Acero inoxidable SS303

Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request

Superficie:
Liso

Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030
Cantidad por Paquete: 10 piezas
Model: Stainless steel, without bolt-down holes
Peso (g): 123.0
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 73269098900
Número de Arancel Aduanero de Exportación: 73269098
Numero de ERP: 103870

Variantes

Número de producto Base Fmax (N) D (mm) Version F1 (mm) F2 (mm) F3 (mm)
098D030E 30 19600 29 without anti-slip plate 29.5 32.5 33.5
098D030EG 30 19600 29 with anti-slip plate 29.5 32.5 33.5
098D040E 40 29400 39 without anti-slip plate 29.5 32.5 33.5
098D040EG 40 29400 39 with anti-slip plate 29.5 32.5 33.5
098D045E 45 29400 44 without anti-slip plate 29.5 32.5 33.5
098D045EG 45 29400 44 with anti-slip plate 29.5 32.5 33.5
098D050E 50 34300 49 without anti-slip plate 29.5 32.5 33.5
098D050EG 50 34300 49 with anti-slip plate 29.5 32.5 33.5
098D060E 60 34300 59 without anti-slip plate 29.5 32.5 33.5
098D060EG 60 34300 59 with anti-slip plate 29.5 32.5 33.5
098D080E 80 34300 79 without anti-slip plate 29.5 32.5 33.5
098D080EG 80 34300 79 with anti-slip plate 29.5 32.5 33.5
098D100E 100 39200 99 without anti-slip plate 29.5 32.5 33.5
098D100EG 100 39200 99 with anti-slip plate 29.5 32.5 33.5
098D120E 120 39200 119 without anti-slip plate 29.5 32.5 33.5
098D120EG 120 39200 119 with anti-slip plate 29.5 32.5 33.5
