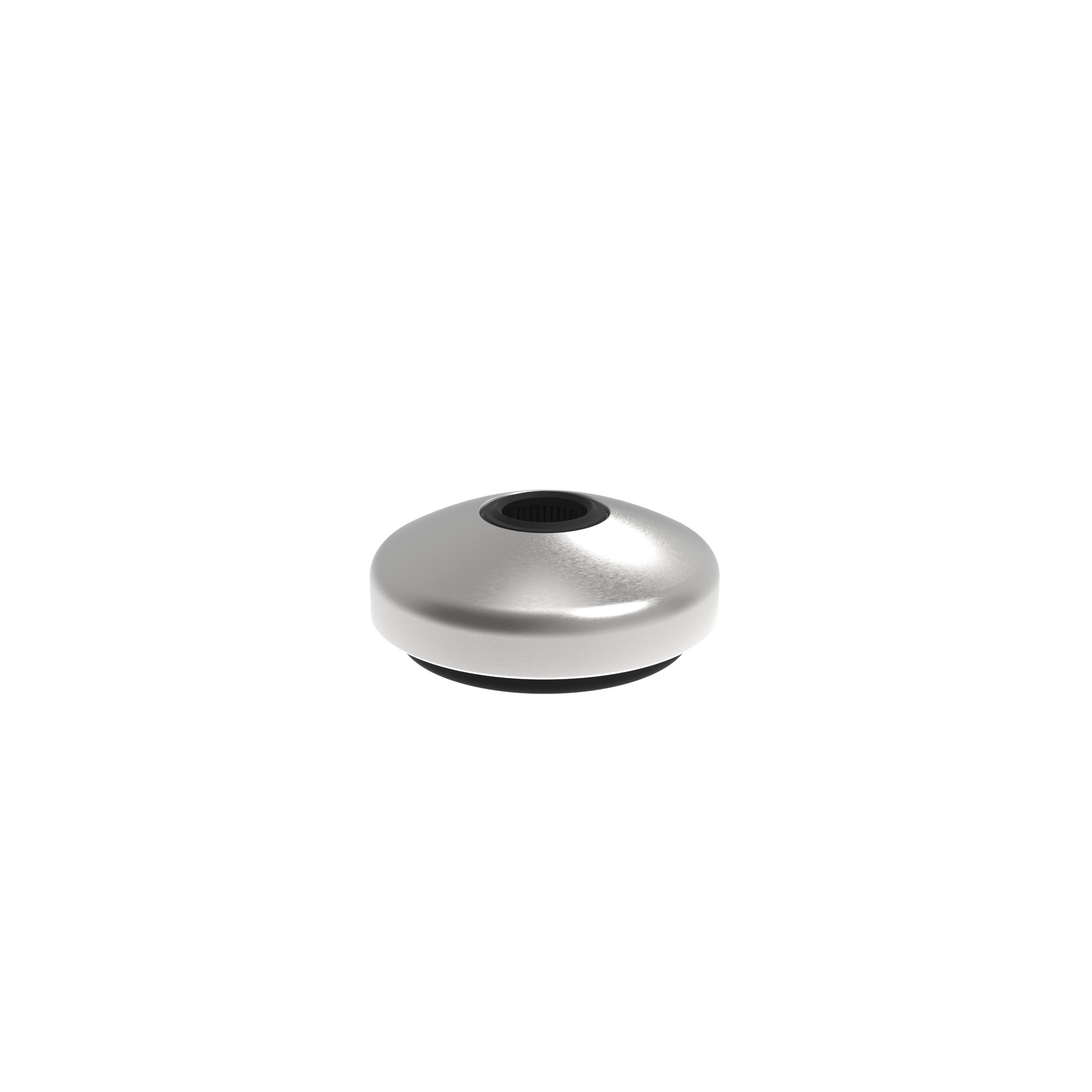

Base acier inox para patas giratorias, rótula 15
0,00 €
Número de producto:
098D060EG
Cantidad por Paquete:
10 piezas
Información sobre el producto "Base acier inox para patas giratorias, rótula 15"
Países de Entrega:
En todo el mundo
Description:
A swiveling leveling foot for strong positioning on uneven floors
Material:
Acero inoxidable SS303
Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request
Superficie:
Liso
Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030
En todo el mundo
Description:
A swiveling leveling foot for strong positioning on uneven floors
Material:
Acero inoxidable SS303
Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request
Superficie:
Liso
Tip:
Compatible Threaded Rod see 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate see 098DG030
| Model: | Stainless steel, without bolt-down holes |
|---|---|
| Cantidad por Paquete: | 10 piezas |
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Peso (g): | 230.0 |
| (ECLASS 6.0): | 90900102 |
| (ECLASS 7.0): | 90900102 |
| (ECLASS 8.0): | 90900102 |
| (ECLASS 9.0): | 90900102 |
| (ECLASS 10.0): | 90900102 |
| (ECLASS 11.0): | 90900102 |
| (ECLASS 12.0): | 90900102 |
| (ECLASS 13.0): | 90900102 |
| (ECLASS 15.0): | 90900102 |
| (ECLASS 16.0): | 23010704 |
| ECLASS_V14.0: | 90900102 |
| Numero de ERP: | 103899 |
| Zolltarifnummer: | 73269098900 |
Variantes
| Número de producto | Version | Base | Fmax (N) | D (mm) | F1 (mm) | F2 (mm) | F3 (mm) |
|---|---|---|---|---|---|---|---|
| 098D030E | without anti-slip plate | 30 | 19600 | 29 | 29.5 | 32.5 | 33.5 |
| 098D030EG | with anti-slip plate | 30 | 19600 | 29 | 29.5 | 32.5 | 33.5 |
| 098D040E | without anti-slip plate | 40 | 29400 | 39 | 29.5 | 32.5 | 33.5 |
| 098D040EG | with anti-slip plate | 40 | 29400 | 39 | 29.5 | 32.5 | 33.5 |
| 098D045E | without anti-slip plate | 45 | 29400 | 44 | 29.5 | 32.5 | 33.5 |
| 098D045EG | with anti-slip plate | 45 | 29400 | 44 | 29.5 | 32.5 | 33.5 |
| 098D050E | without anti-slip plate | 50 | 34300 | 49 | 29.5 | 32.5 | 33.5 |
| 098D050EG | with anti-slip plate | 50 | 34300 | 49 | 29.5 | 32.5 | 33.5 |
| 098D060E | without anti-slip plate | 60 | 34300 | 59 | 29.5 | 32.5 | 33.5 |
| 098D060EG | with anti-slip plate | 60 | 34300 | 59 | 29.5 | 32.5 | 33.5 |
| 098D080E | without anti-slip plate | 80 | 34300 | 79 | 29.5 | 32.5 | 33.5 |
| 098D080EG | with anti-slip plate | 80 | 34300 | 79 | 29.5 | 32.5 | 33.5 |
| 098D100E | without anti-slip plate | 100 | 39200 | 99 | 29.5 | 32.5 | 33.5 |
| 098D100EG | with anti-slip plate | 100 | 39200 | 99 | 29.5 | 32.5 | 33.5 |
| 098D120E | without anti-slip plate | 120 | 39200 | 119 | 29.5 | 32.5 | 33.5 |
| 098D120EG | with anti-slip plate | 120 | 39200 | 119 | 29.5 | 32.5 | 33.5 |
