Base extendida 80 PA para patas giratorias, rótula 15

Información sobre el producto "Base extendida 80 PA para patas giratorias, rótula 15"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:

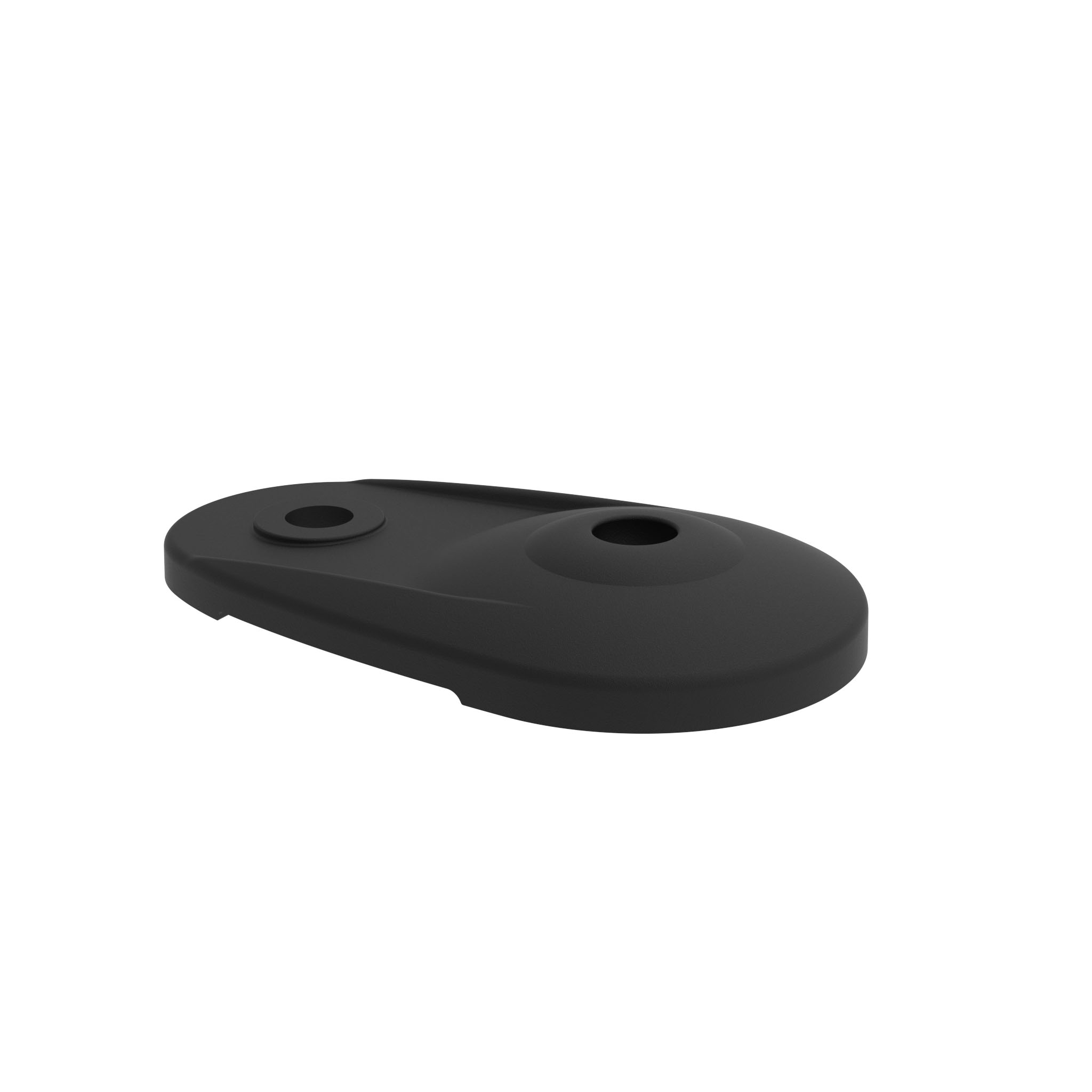

Extended swiveling leveling foot which can be fixed to the floor

Material:
Plástico PA, bola de vidrio reforzado

Specials:
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;

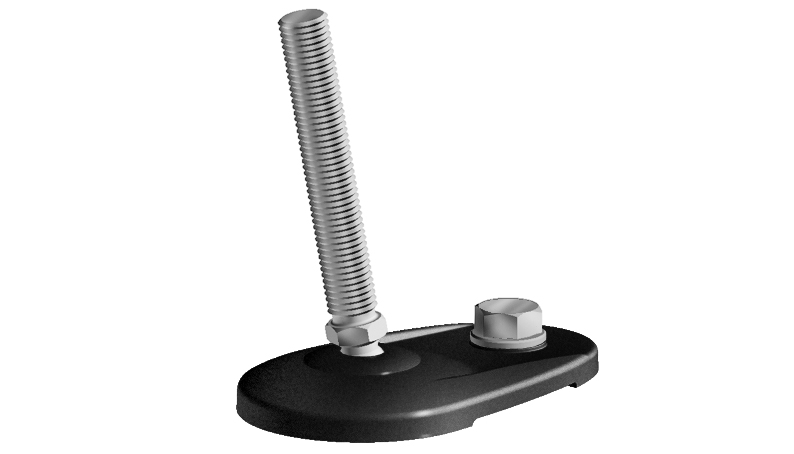

as factory assembled leveling foot on request

Tip:
Compatible Threaded Rod see 098DM08025M et sq. or 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. or 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG080 and 098AG060
Model: Plástico PA
Cantidad por Paquete: 10 piezas
Número de Arancel Aduanero de Exportación: 39269097
Peso (g): 58.8
(ECLASS 6.0): 90900102
(ECLASS 7.0): 90900102
(ECLASS 8.0): 90900102
(ECLASS 9.0): 90900102
(ECLASS 10.0): 90900102
(ECLASS 11.0): 90900102
(ECLASS 12.0): 90900102
(ECLASS 13.0): 90900102
(ECLASS 14.0): 90900102
(ECLASS 15.0): 90900102
(ECLASS 16.0): 23010704
Numero de ERP: 111780
Zolltarifnummer: 39269097900

Variantes

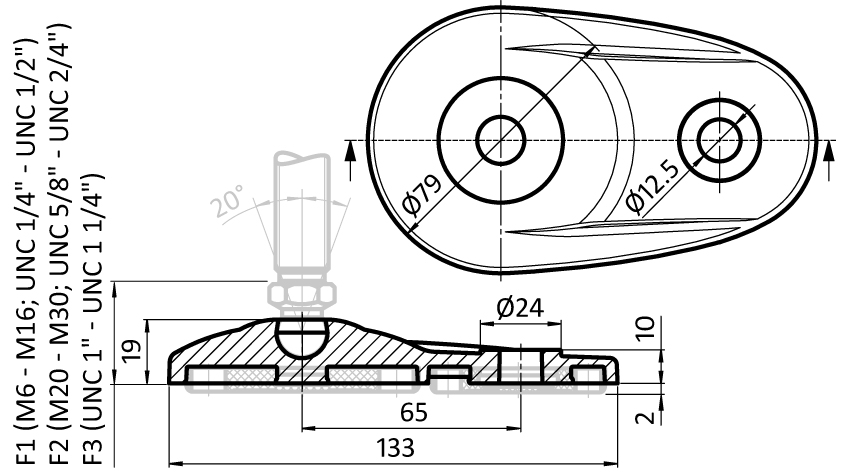

Número de producto Version Base Fmax (N) F1 (mm) F2 (mm) F3 (mm)
098DA080K without anti-slip plate 80 9800 30.5 33.5 34.5
098DA080KG with anti-slip plate 80 9800 30.5 33.5 34.5
