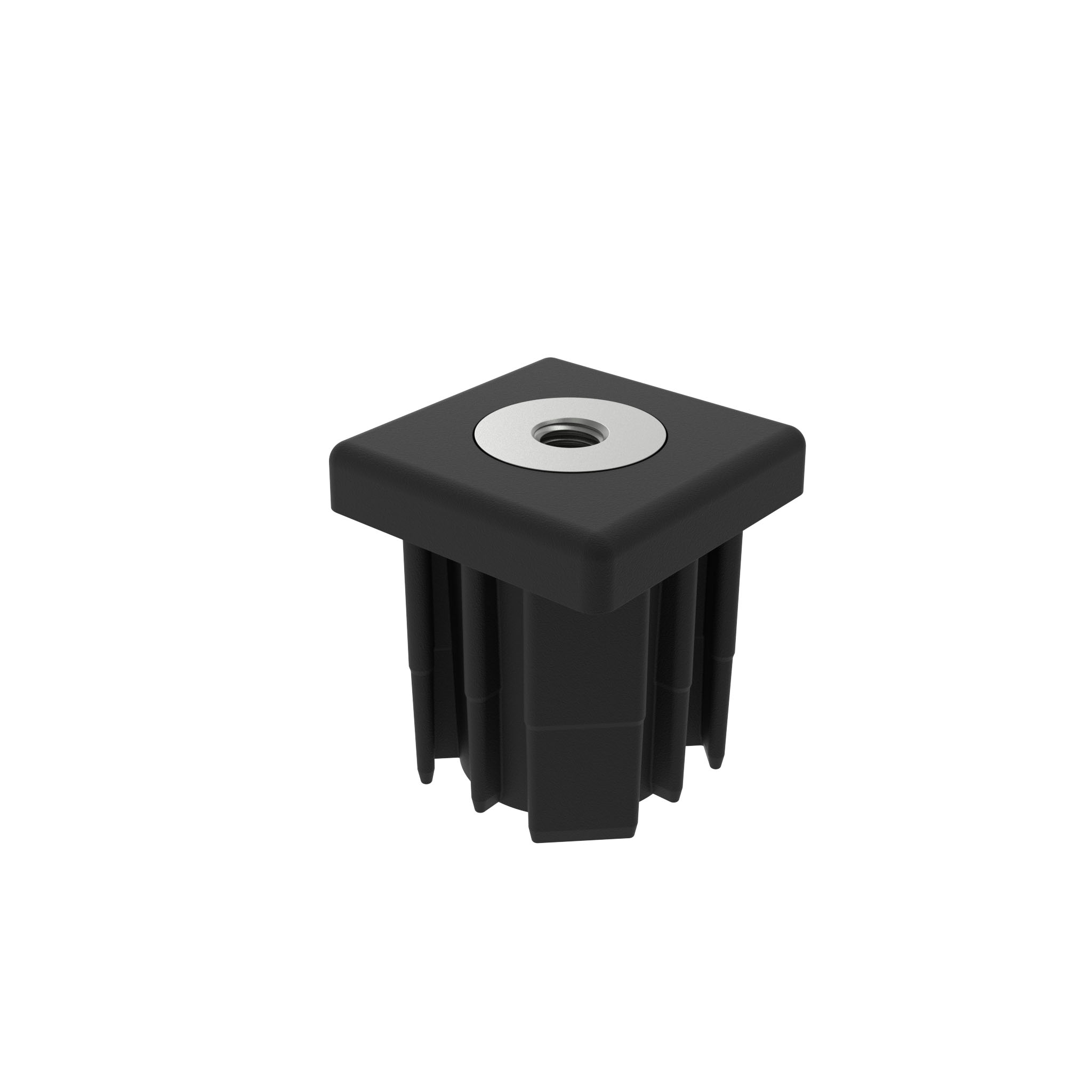

Casquillo roscado para tubo cuadrado 40 x 40

Información sobre el producto "Casquillo roscado para tubo cuadrado 40 x 40"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:
To fit leveling feet to square, non-threaded tubes

Material:
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass

Especiales:
Descarga electrostática ESD, otros tamaños, otros colores bajo pedido

Cantidad por Paquete:	10 piezas
Model:	Plastic PA, with brass threaded insert
Peso (g):	93.0
ECLASS 6.0:	23111190
ECLASS 7.0:	23111190
ECLASS 8.0:	23111190
ECLASS 9.0:	23111190
ECLASS 10.0:	23111190
ECLASS 11.0:	23111190
ECLASS 12.0:	23111190
ECLASS 13.0:	23111190
Zolltarifnummer:	39269097900
Número de Arancel Aduanero de Exportación:	39269097
Numero de ERP:	104973

Variantes

Número de producto	Fmax (N)	Version	B (mm)	L (mm)	M	S (mm)	b (mm)	Tubo Cuadrado (mm)
098V401508	7840	40 x 40, R5	40	43	-	35	37.5	40 x 40 x 1.5
098V401510	7840	40 x 40, R5	40	43	M10	35	37.5	40 x 40 x 1.5
098V401512	7840	40 x 40, R5	40	43	M12	35	37.5	40 x 40 x 1.5
098V401514	7840	40 x 40, R5	40	43	M14	35	37.5	40 x 40 x 1.5
098V401516	7840	40 x 40, R5	40	43	M16	35	37.5	40 x 40 x 1.5
098V401520	7840	40 x 40, R5	40	43	M20	35	37.5	40 x 40 x 1.5
098V402008	9800	40 x 40, R5	40	43	-	35	36.5	40 x 40 x 2.0
098V402010	9800	40 x 40, R5	40	43	M10	35	36.5	40 x 40 x 2.0
098V402012	9800	40 x 40, R5	40	43	M12	35	36.5	40 x 40 x 2.0
098V402014	9800	40 x 40, R5	40	43	M14	35	36.5	40 x 40 x 2.0
098V402016	9800	40 x 40, R5	40	43	M16	35	36.5	40 x 40 x 2.0
098V402020	9800	40 x 40, R5	40	43	M20	35	36.5	40 x 40 x 2.0
098V402508	9800	40 x 40, R5	40	43	-	35	35.5	40 x 40 x 2.5
098V402510	9800	40 x 40, R5	40	43	M10	35	35.5	40 x 40 x 2.5
098V402512	9800	40 x 40, R5	40	43	M12	35	35.5	40 x 40 x 2.5
098V402516	9800	40 x 40, R5	40	43	M16	35	35.5	40 x 40 x 2.5
098V402520	9800	40 x 40, R5	40	43	M20	35	35.5	40 x 40 x 2.5
098V403008	9800	40 x 40, R5	40	43	-	35	34.5	40 x 40 x 3.0
098V403010	9800	40 x 40, R5	40	43	M10	35	34.5	40 x 40 x 3.0
098V403012	9800	40 x 40, R5	40	43	M12	35	34.5	40 x 40 x 3.0
098V403014	9800	40 x 40, R5	40	43	M14	35	34.5	40 x 40 x 3.0
098V403016	9800	40 x 40, R5	40	43	M16	35	34.5	40 x 40 x 3.0
098V403020	9800	40 x 40, R5	40	43	M20	35	34.5	40 x 40 x 3.0
098V404008	9800	40 x 40, R5	40	43	-	35	32.5	40 x 40 x 4.0
098V404010	9800	40 x 40, R5	40	43	M10	35	32.5	40 x 40 x 4.0
098V404012	9800	40 x 40, R5	40	43	M12	35	32.5	40 x 40 x 4.0
098V404014	9800	40 x 40, R5	40	43	M14	35	32.5	40 x 40 x 4.0
098V404016	9800	40 x 40, R5	40	43	M16	35	32.5	40 x 40 x 4.0
098V404020	9800	40 x 40, R5	40	43	M20	35	32.5	40 x 40 x 4.0
