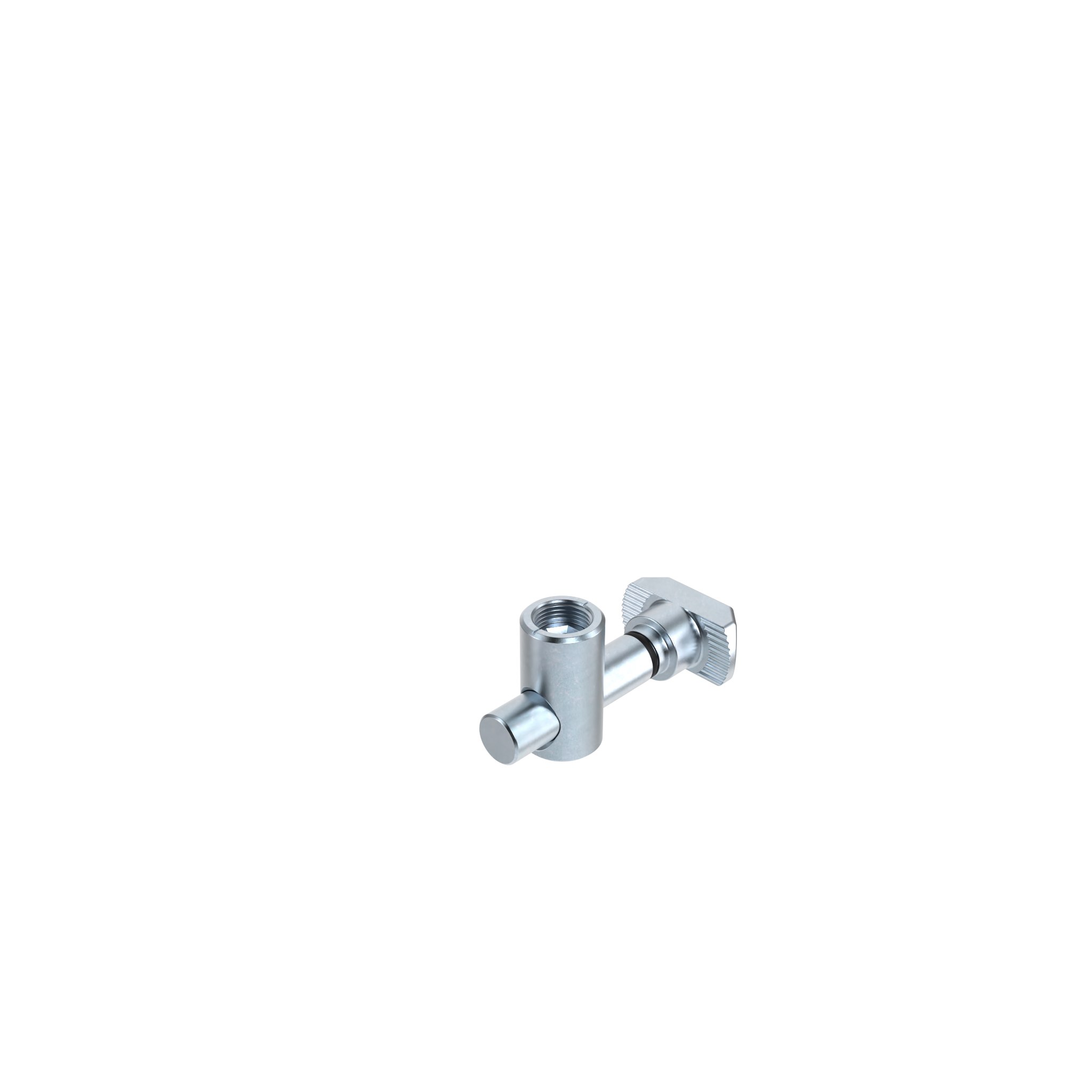

Central Connector B, Slot 8 and Slot 10

Información sobre el producto "Central Connector B, Slot 8 and Slot 10"

Países de Entrega:
En todo el mundo

Description:
To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screw

Material:
Galvanizado / liso

Superficie:
Galvanizado

Tip:
* (1) = profile 40; (2) = profile 45; (3) = profile 50

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Cantidad por Paquete:	10 piezas
Cantidad por Paquete (1):	10
Model:	Galvanizado / liso
Peso (g):	26.0

Variantes

ID de producto	Profile	d (mm)	L (mm)	Version	A (mm)	B (mm)	b (mm)	t (mm)	Ranura N (mm)	SW (mm)	D (mm)
091107	B	Ø17		Cover cap
091108	B	Ø17		Cover cap
099B08110700	B	Ø11	33.0	0°	15.5	4.8	18.0	22.0	8	4	7.1
099B08110700S01	B	Ø11	40.0	0°	19.6	5.5	18.0	22.0	8 / 10	4	7.1
099B08110790	B	Ø11	33.0	90°	15.5	4.8	18.0	22.0	8	4	7.1
099B08110790S01	B	Ø11	40.0	90°	19.6	5.5	18.0	22.0	8 / 10	4	7.1
099B10171000	B	Ø17	45.5	0°	19.6	5.5	22.5	31.0 (1) 34.0 (2) 36.0 (3) 41.0 (4)	10	6	9.8
099B10171090	B	Ø17	45.5	90°	19.6	5.5	22.5	31.0 (1) 34.0 (2) 36.0 (3) 41.0 (4)	10	6	9.8
