Patas niveladoras
Base para patas de pato M20
Países de Entrega:En todo el mundoDescription:A strong and cost efficient leveling foot commonly used for conveyor systemsMaterial:Aluminio fundido a presiónSuperficie:LisoTip:Compatible Cover Caps see 098F01, please use 1 piece out of this set
Base para patas giratorias selladas, rótula 15
Color:Anti-slip Plate: light gray ≈ RAL 7035Países de Entrega:En todo el mundoDescription:Adjustable Pivot foot to equalize uneven floors; With integrated anti-slip plate; Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degreeMaterial:Base: Stainless steel SS304 Anti-slip Plate: TPE ≈ 75 Shore A, water and oil resistant (up to 60°C), with antibacterial and antimicrobial protectionSpecials:As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq.
Base trapezoidal para patas giratorias, rótula 15
Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc fundido a presiónSpecials:Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate see 098DG030 f., Compatible Floor Mounting see 098BI060ZS
Base trapezoidal para patas pivotantes, gris
Color:Aluminio blanco ≈ RAL 9006Países de Entrega:En todo el mundoDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc fundido a presiónSpecials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050
Base trapezoidal para patas pivotantes, negra
Color:NegroPaíses de Entrega:En todo el mundoDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc fundido a presiónSpecials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050
Base ZN BDH para patas giratorias, rótula 15
Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Zinc fundido a presiónSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate see 098DG030
Base ZN BDH para patas pivotantes
Color:NegroPaíses de Entrega:En todo el mundoDescription:A leveling foot which can be fixed to the floorMaterial:Zinc fundido a presiónSpecials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050

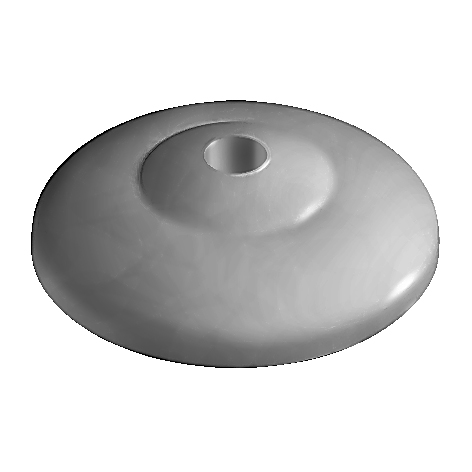

Base ZN para patas ECO
Color:Negro, -Países de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc fundido a presiónSpecials:Other surfaces, other sizes, other colors, glued anti-slip plate on requestSuperficie:Polvo cubierto / zincado azulTip:Compatible Threaded Rod see 098EM08025M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip-Plate see 098EG030; (ECO feet are provided factory assembled)
Base ZN para patas giratorias, rótula 15
Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc fundido a presiónSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.
Base ZN para patas pivotantes
Color:NegroPaíses de Entrega:En todo el mundoDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc fundido a presiónSpecials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050
Juego de ensamble para patas de pato (Juego)
Países de Entrega:En todo el mundoDescription:Assembling Set for Duck FeetMaterial:Acero / acero inoxidable A2Set:2x hexagon nut DIN EN ISO 4032 (DIN 934) 2x washer DIN EN ISO 7089 (DIN 125)Superficie:Galvanizado / liso
Juego de ensamble para patas fijas de uso rudo
Assembly Set 1:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 16 steel, zinc plated, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 - steel, zinc plated, 1 washer DIN 7349 – 17 - steel, zinc platedAssembly Set 2:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 16 stainless steel, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 - stainless steel, 1 washer DIN 7349 – 17 - stainless steelPaíses de Entrega:En todo el mundoDescription:To assemble heavy-duty fixed feetMaterial:Acero / acero inoxidableSuperficie:Galvanizado / lisoTip:Compatible threaded rod ST for heavy-duty fixed feet see 098KM16100M, Compatible threaded rod SS for heavy-duty fixed feet see 098KM16100E
Juego de ensamble para patas pivotantes
Assembly Set 1:1 collar screw with shank - M8 x 18 - steel, zinc plated, 1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - steel, zinc plated, 1 bumper washer - rubber EPDMAssembly Set 2:1 collar screw with shank - M8 x 18 - stainless steel, 1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - stainless steel, 1 bumper washer - rubber EPDMPaíses de Entrega:En todo el mundoDescription:To assemble pivot feetMaterial:Acero / acero inoxidable, caucho EPMSuperficie:Galvanizado / lisoTip:Compatible threaded rod ST metric for pivot feet see 098AM12066M, Compatible threaded rod SS metric for pivot feet see 098AM12066E, Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M, Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E
Juego de ensamble para patas pivotantes de uso rudo
Assembly Set 1:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 30 stainless steel, with polyamide thread locking dot, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 mm steel, zinc plated, 1 shaped washer – steel, zinc platedAssembly Set 2:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 30 stainless steel, with polyamide thread locking dot, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 stainless steel, 1 shaped washer – stainless steelPaíses de Entrega:En todo el mundoDescription:To assemble heavy-duty pivot feetMaterial:Acero / acero inoxidableSuperficie:Galvanizado / lisoTip:Compatible threaded rod ST metric for pivot feet see 098AM12066M, Compatible threaded rod SS metric for pivot feet see 098AM12066E, Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M, Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E
Montaje al piso para base de pata trapezoidal
Color:NegroPaíses de Entrega:En todo el mundoDescription:To securely fix the trapezoid leveling foot to the floor - can be mounted afterwardMaterial:Zinc fundido a presiónSuperficie:Polvo cubiertoTip:Compatible Trapezoid Base see 098DI060ZS and 098AI060ZS

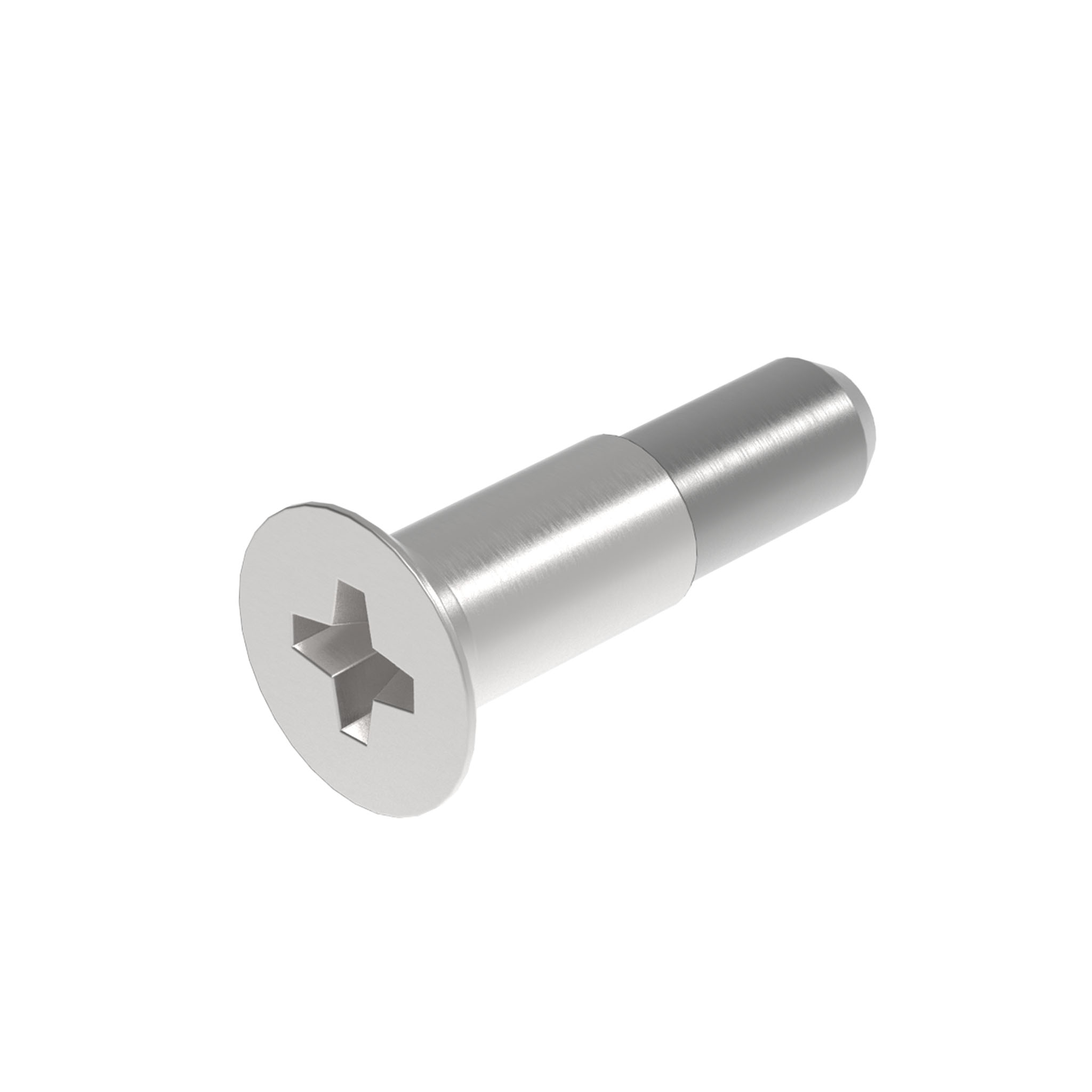

Pasador de ensamble para patas ECO
Países de Entrega:En todo el mundoDescription:To assemble ECO feetMaterial:Acero inoxidable SS304Superficie:LisoTip:Compatible threaded rod ST for ECO-Feet see 098EM08025M, Compatible threaded rod SS for ECO-Feet see 098EM08025E
Pata de pato con varilla roscada acier
Países de Entrega:En todo el mundoDescription:A strong and low cost leveling foot commonly used for conveyor systems; the threaded rod is fixedMaterial:Base: Aluminum die-cast Threaded rod: SteelSurface:Base: Plain Threaded rod: Zinc platedTip:Compatible Nut see 098F16MTip 2:Compatible Cover Caps see 098F01, please use 1 piece out of this set
Pata ECO, acier inox / acier inox
Países de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Stainless steel Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.
Pata ECO, PA / acier
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.
Pata ECO, PA / acier inox
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.
Pata ECO, ZN / acier
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Powder coated / zinc plated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.
Pata ECO, ZN / acier inox
Países de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Zinc plated Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.
Pata giratoria PA / acier - BDH - rótula 22
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.Tip 2:*Bolt-down holes closed
Pata giratoria trapezoidal, ZN / acier - rótula 15
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.
