Soportes de vallado de seguridad
Conector abrazadera para perfil 30 (Juego)
Color:Clamp profile connector: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 7380 (DIN 34805) - M6 x 16Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 30 (Set) see 093XWWC301N06

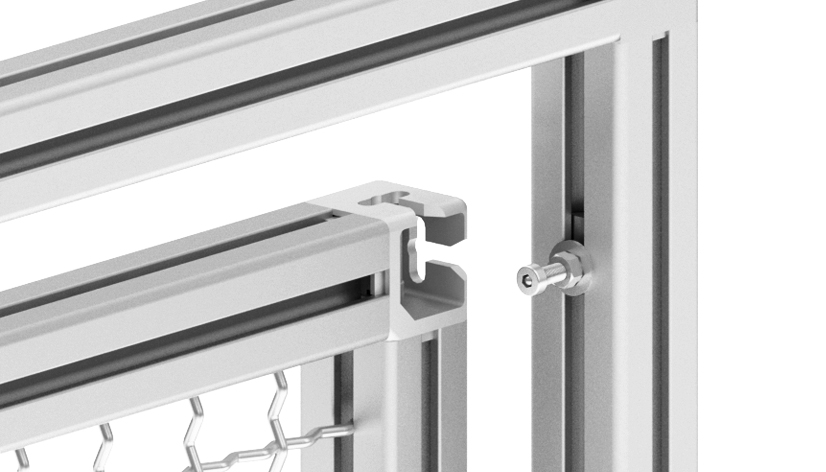

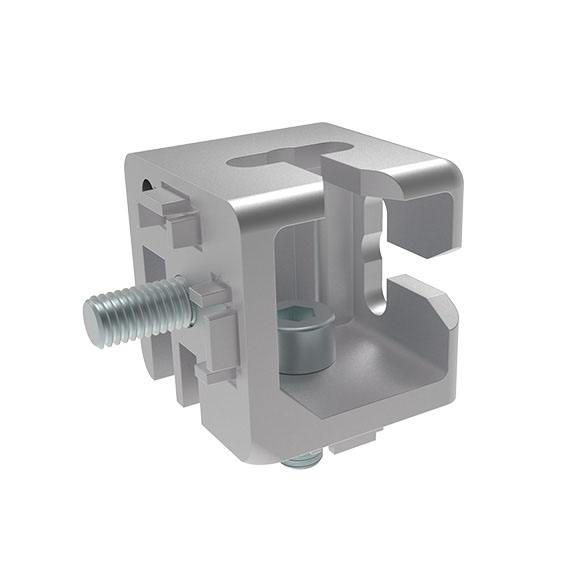

Conector abrazadera para perfil 40 (Juego)
Color:Clamp profile connector: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 20Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 40 (Set) see 093XWWC401N08
Montaje para conector abrazadera 30 (Juego)
Países de Entrega:En todo el mundoDescription:To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensatedMaterial:T-slot nut: Steel Shim: Steel Nut: Steel Screw: Steel Ball: Stainless steelSet:Mounting, completely preassembled: 1 T-slot nut - slot 6 - M5, 1 shim DIN EN ISO 7093 (DIN 9021) - 5.3, 1 nut DIN EN ISO 4032 (DIN 934) - M5, 1 screw DIN 7984 - M5 x 30, 1 ball Ø 4Surface:T-slot nut: Zinc plated Shim: Zinc plated Nut: Zinc plated Screw: Zinc plated Ball: PlainTip:Compatible Clamp Profile Connector 30 (Set) see 093WWC301N06S01

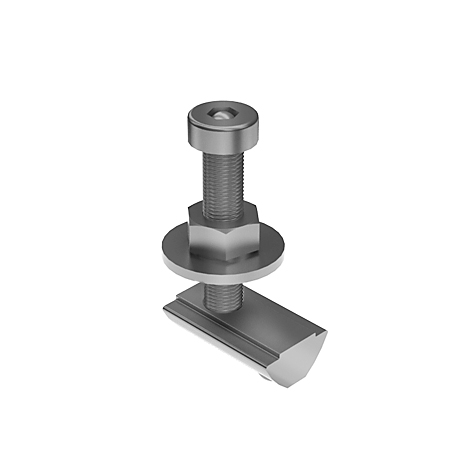

Montaje para conector abrazadera 40 (Juego)
Países de Entrega:En todo el mundoDescription:To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensatedMaterial:T-slot nut: Steel Shim: Steel Nut: Steel Screw: Steel Ball: Stainless steelSet:Mounting, completely preassembled: 1 T-slot nut - slot 8 - M6, 1 shim DIN EN ISO 7093 (DIN 9021) - 6.4, 1 nut DIN EN ISO 4032 (DIN 934) - M6, 1 screw DIN 7984 - M6 x 30, 1 ball Ø 4Surface:T-slot nut: Zinc plated Shim: Zinc plated Nut: Zinc plated Screw: Zinc plated Ball: PlainTip:Compatible Clamp Profile Connector 40 (Set) see 093WWC401N08S01

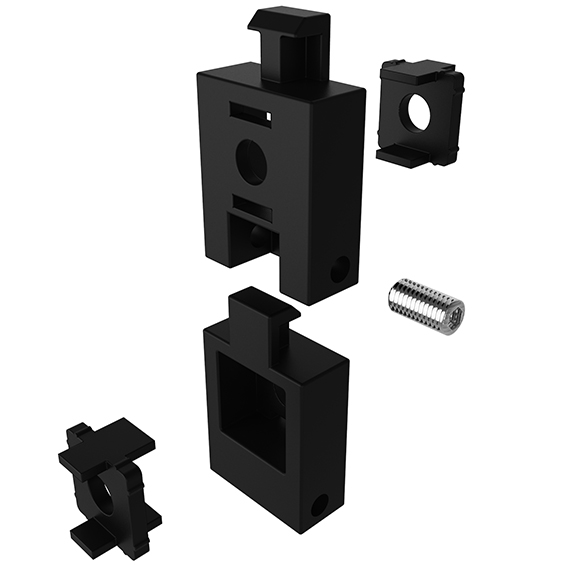

Percha 6-8 (Juego)
Color:NegroPaíses de Entrega:En todo el mundoDescription:For an extra sturdy fastening of panels to fencing postsMaterial:Zinc fundido a presiónSuperficie:Polvo cubierto

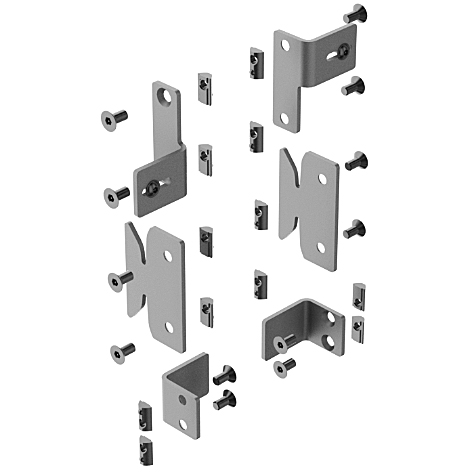

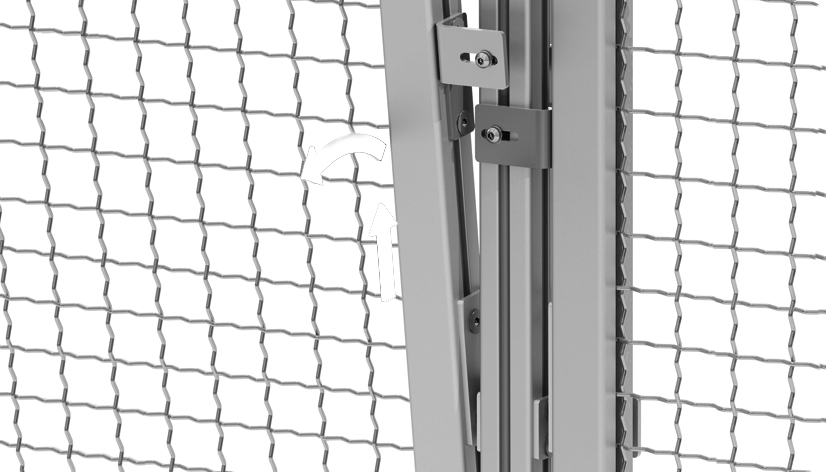

Percha de seguridad 8/8 (Juego)
Países de Entrega:En todo el mundoDescription:To comfortably hang on protective frame panels, according to Machinery Directive 2006/42/EC; gap distance 12 - 26 mmMaterial:Hanger: Steel Supporting hook: Steel Supporting angle: Steel Countersunk screws: Stainless steel T-slot nuts: SteelSet:2 hangers incl. calked safety fastening with pin, 2 supporting hooks, 2 supporting angles, 12 countersunk screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 - with pin, 12 T-slot nuts - slot 8 - M8Surface:Hanger: Zinc plated Supporting hook: Zinc plated Supporting angle: Zinc plated Countersunk screws: Plain T-slot nuts: Zinc plated

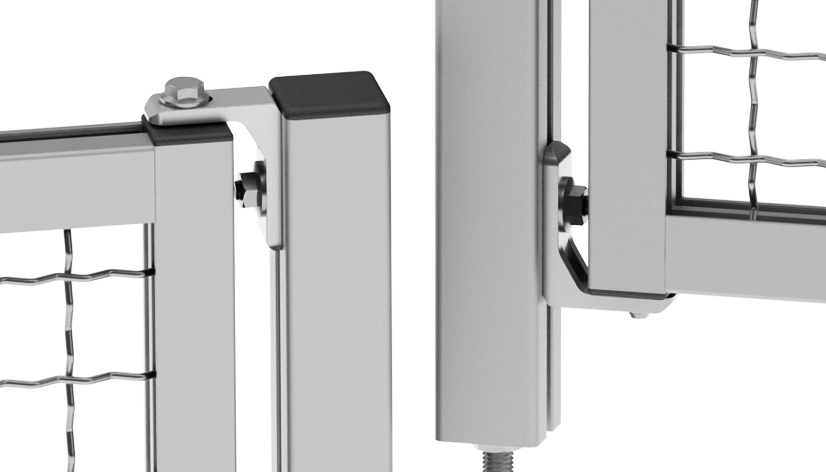

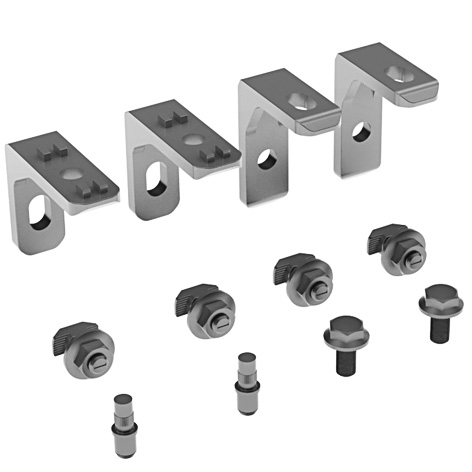

Soporte de suspensión (Juego)
Países de Entrega:En todo el mundoDescription:To attach a protective frame panel between two postsMaterial:Suspension Bracket: Zinc die-cast, Assembly set: SteelSet:4 suspension brackets, 4 flange nuts M8, 4 hammer head screws M8 x 20, 2 locking screws - Verbus Ripp B - M8 x 16, 2 knurled pins Ø 8.6, for core holeSurface:Suspension Bracket: Plain, Assembly set: Zinc plated
Soporte de suspensión CS (Juego)
Color:Safety strap: Black, Anti-loss washer: NaturalPaíses de Entrega:En todo el mundoDescription:To attach a protective frame panel betweentwo posts, according to Machinery Directive 2006/42/ECMaterial:Suspension Bracket: Zinc die-cast Assembly set: Steel Safety strap: Plastic PA Anti-loss washer: Plastic PASet:2 suspension brackets, 2 suspension brackets cs pre-assembled, 2 knurled pins Ø 8.6, for core hole, 2 locking screws - Verbus Ripp B - M8 x 25, 2 safety straps, 2 anti-loss washers, 4 hammer head screws M8 x 20, 4 flange nuts M8Surface:Suspension Bracket: Plain, Assembly set: Zinc plated
