Connection Plates

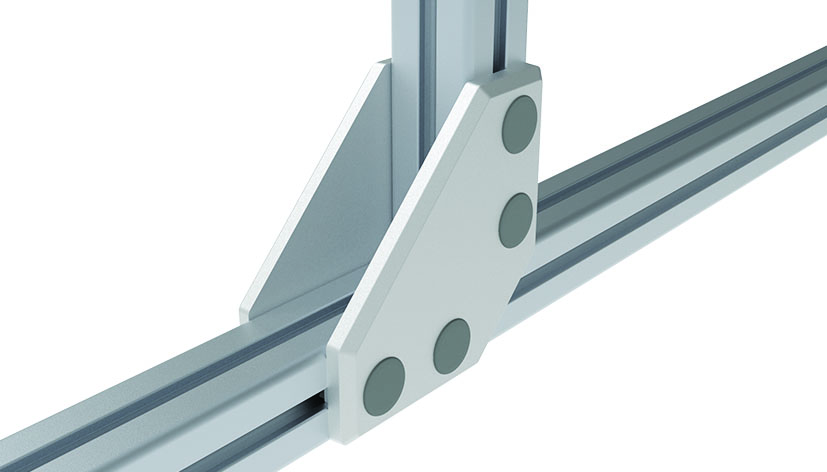

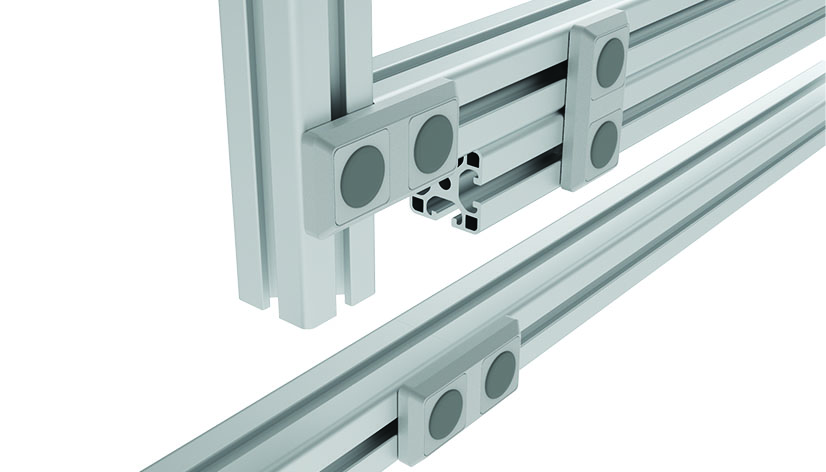

Aluminum Die-cast, Connection Plates

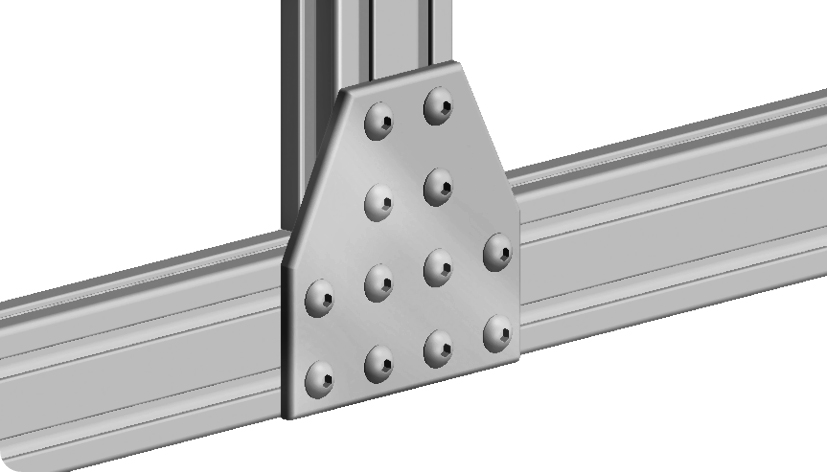

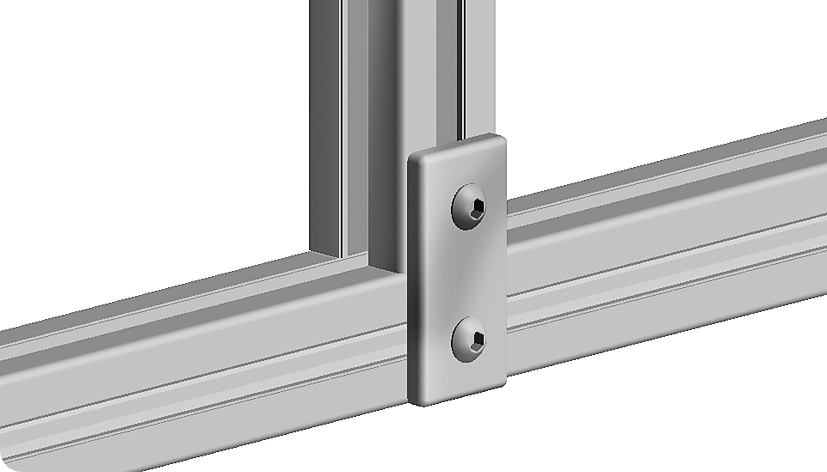

Aluminum, Connection Plates

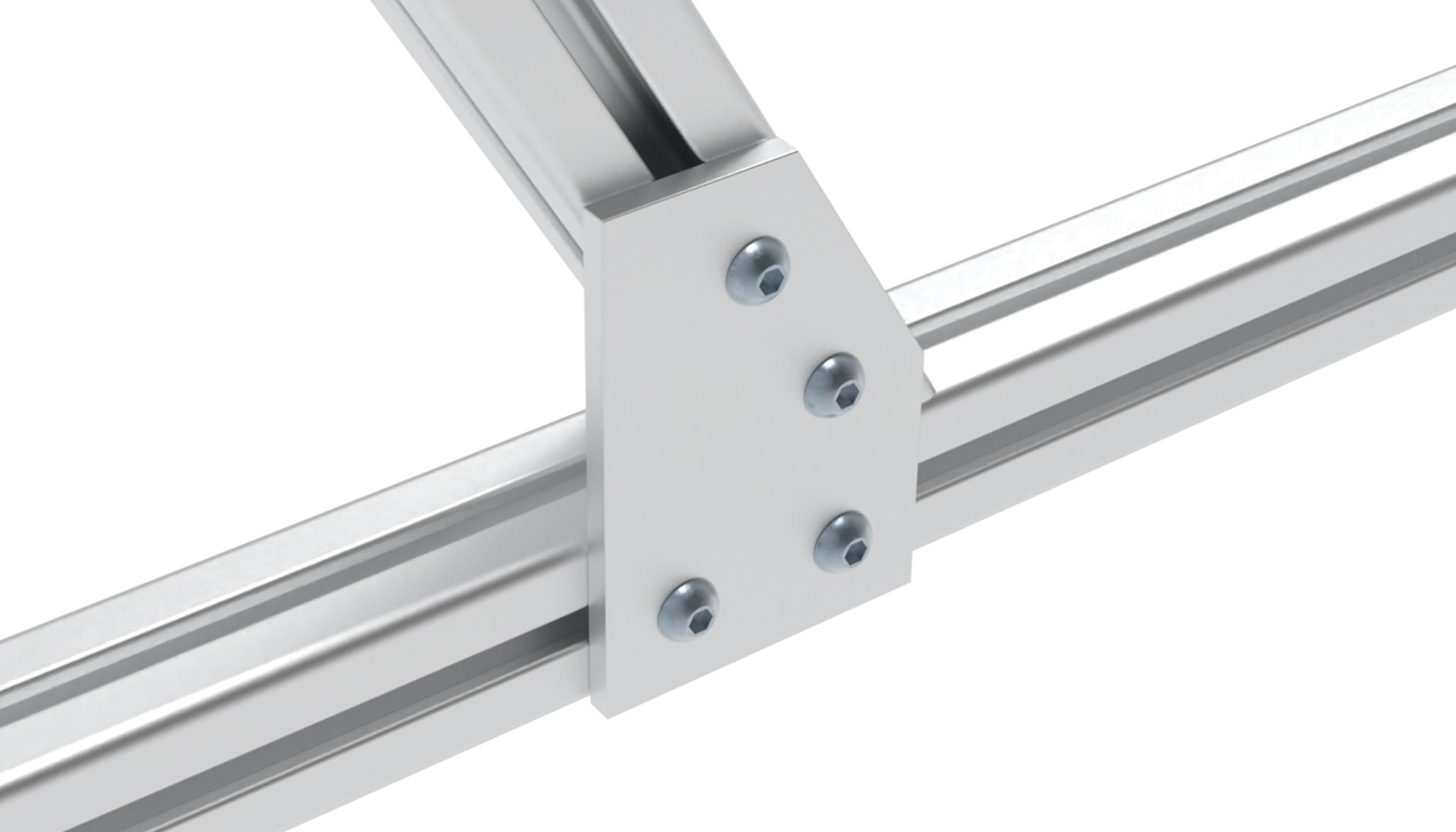

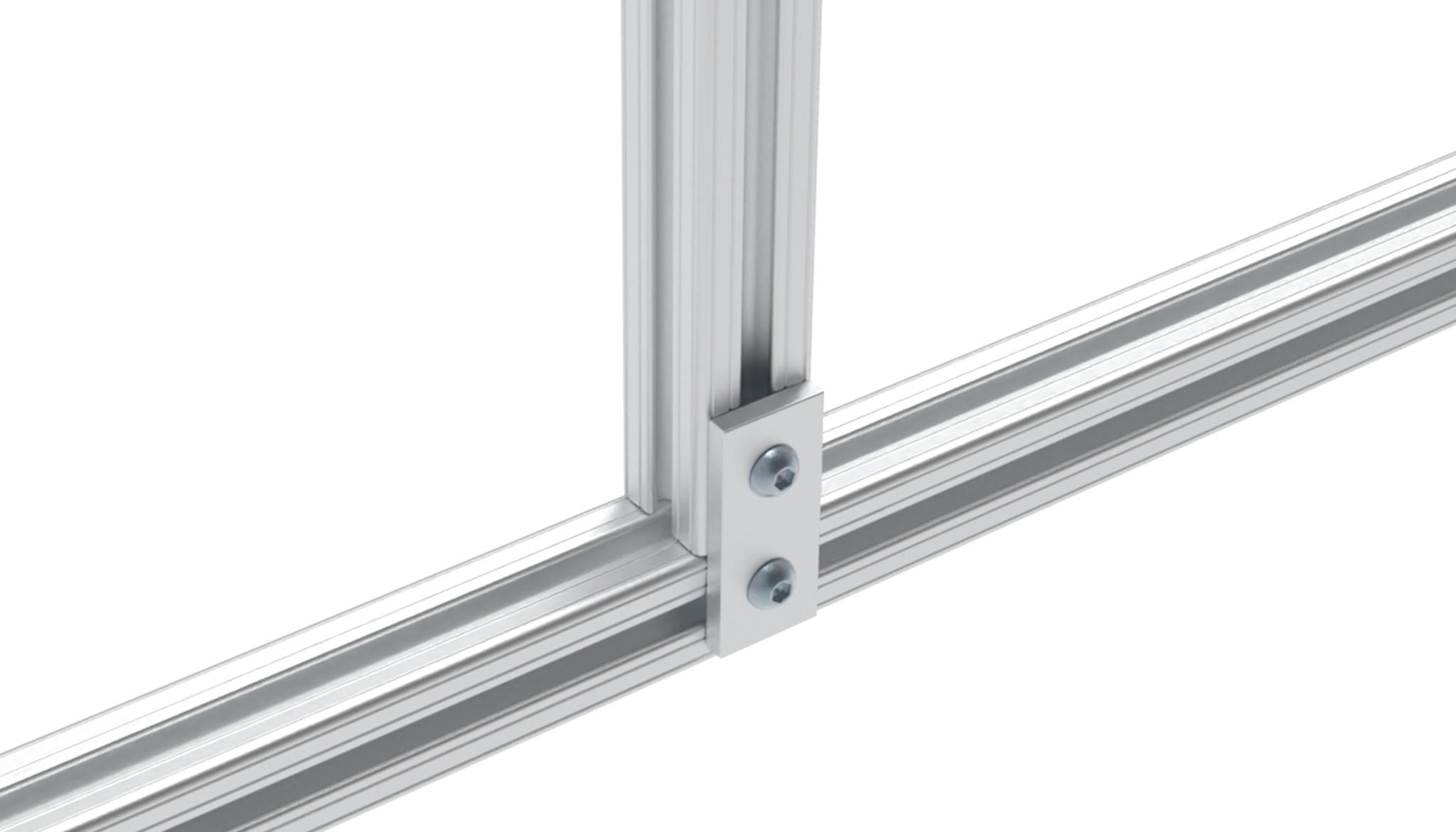

Aluminum, ECO Connection Plates

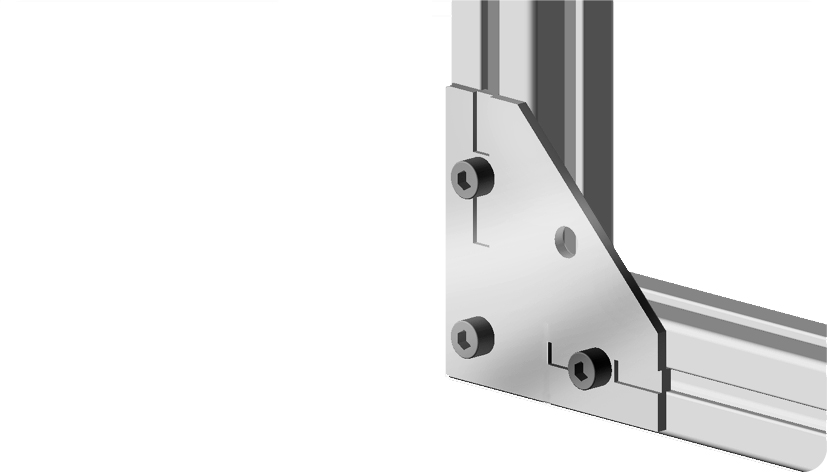

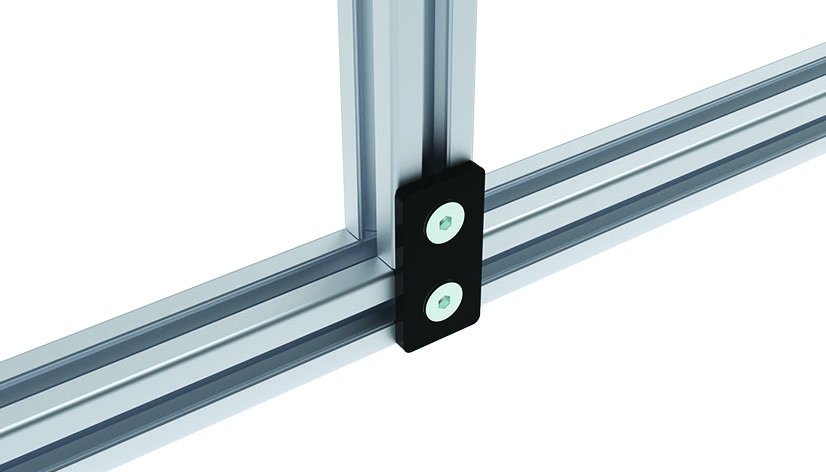

Steel, Connection Plates

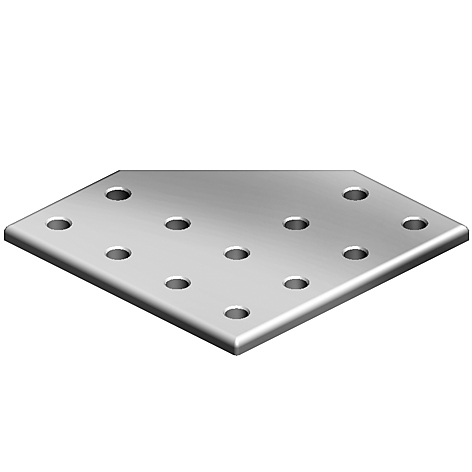

Connection Plate AL L 12 Hole, 2 Slots Version

A (mm): 30.0 H (mm): 5.0 L (mm): 118.5 Version: 120 / 120 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

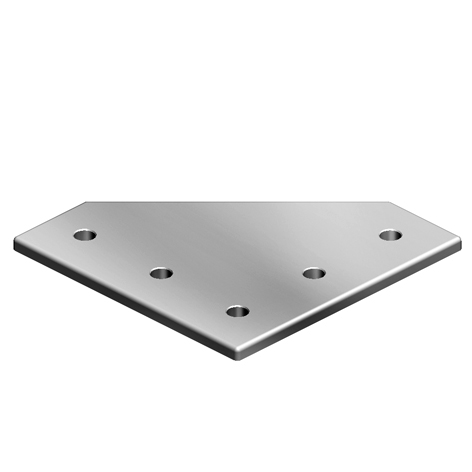

Connection Plate AL L 5 Hole, 1 Slot Version

A (mm): 30.0 H (mm): 5.0 L (mm): 88.5 Version: 90 / 90 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

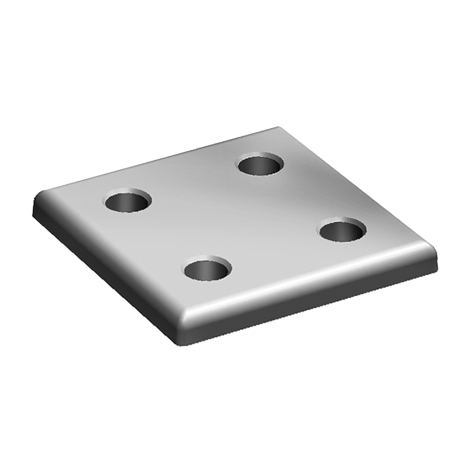

Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") H (mm): 6.0 L (mm): 72.0 (2.8") Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

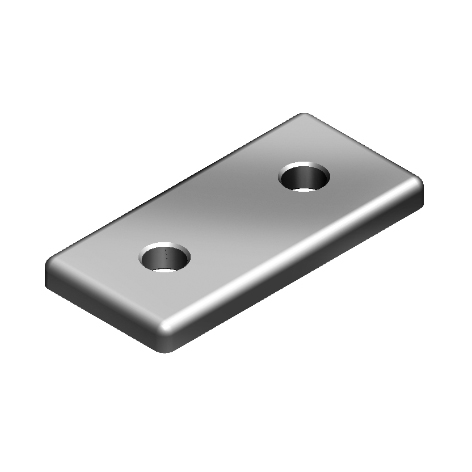

Connection Plate AL Rectangular 2 Hole, 1 Slot Version

A (mm): 30.0 B (mm): 27.0 H (mm): 5.0 L (mm): 57.0 Version: 30 / 60 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

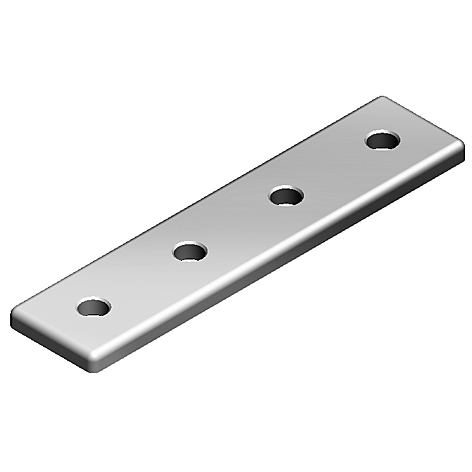

Connection Plate AL Rectangular 4 Hole, 1 Slot Version

A (mm): 20.0 B (mm): 18.0 H (mm): 4.0 L (mm): 78.0 Version: 20 / 80 ØD (mm): 5.5

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

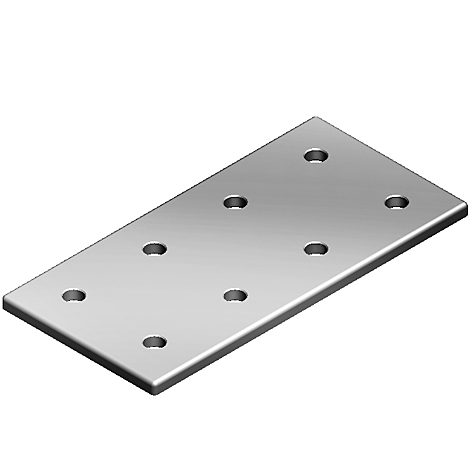

Connection Plate AL Rectangular 8 Hole, 2 Slots Version

A (mm): 20.0 B (mm): 36.0 H (mm): 4.0 L (mm): 76.0 Version: 40 / 80 ØD (mm): 5.5

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

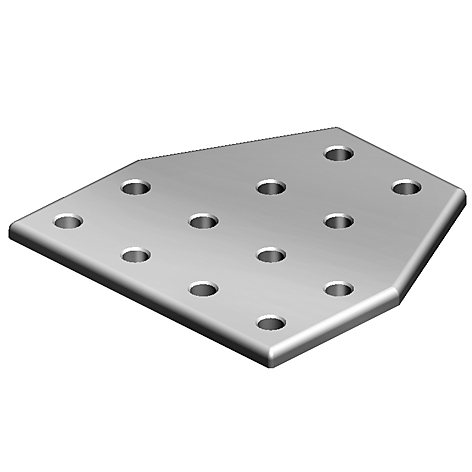

Connection Plate AL T 12 Hole, 2 Slots Version

A (mm): 25.4 (1") H (mm): 4.0 K (mm): 48.0 (1.89") L (mm): 98.0 (3.858") Version: 102 / 102 - 4" / 4" ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

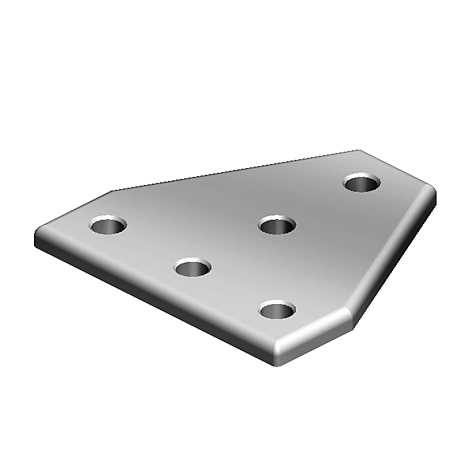

Connection Plate AL T 5 Hole, 1 Slot Version

A (mm): 45.0 H (mm): 6.0 K (mm): 41.0 L (mm): 131.0 Version: 135 / 135 ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

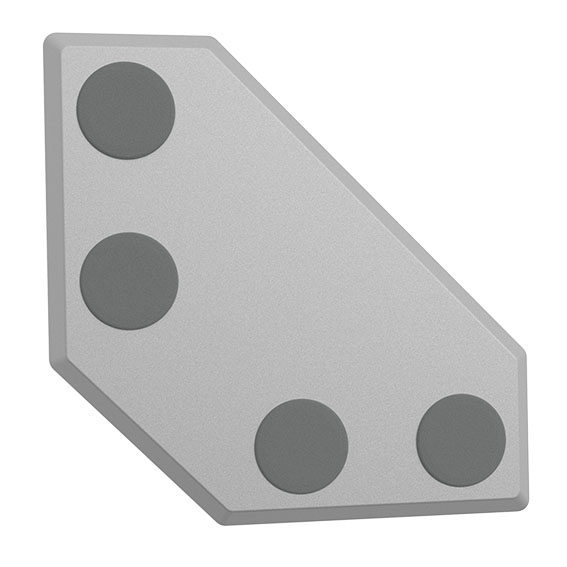

Connection Plate I120 M (Set)

Profile: I Ranura N (mm): 8

Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angle, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and counter sunk nuts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts 4 cover capsEspeciales:Otras superficies, otros colores bajo pedidoSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated

0,00 €

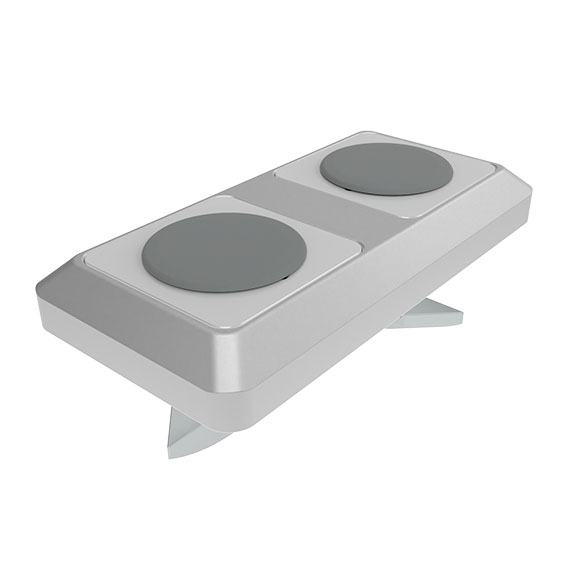

Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)

Profile: I Ranura N (mm): 8

Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts 2 cover capsEspeciales:Otras superficies, otros colores bajo pedidoSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated

0,00 €

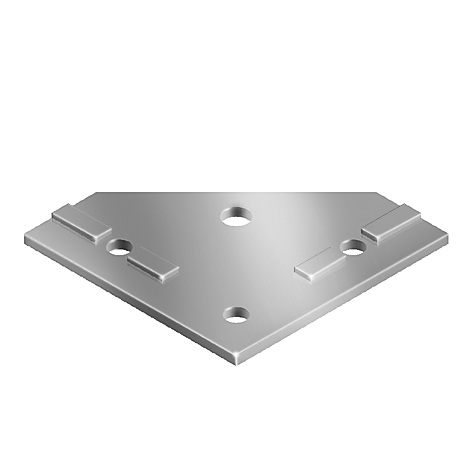

Connection Plate ST 100

Para Tornillo: M8 Ranura N (mm): 10

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

0,00 €

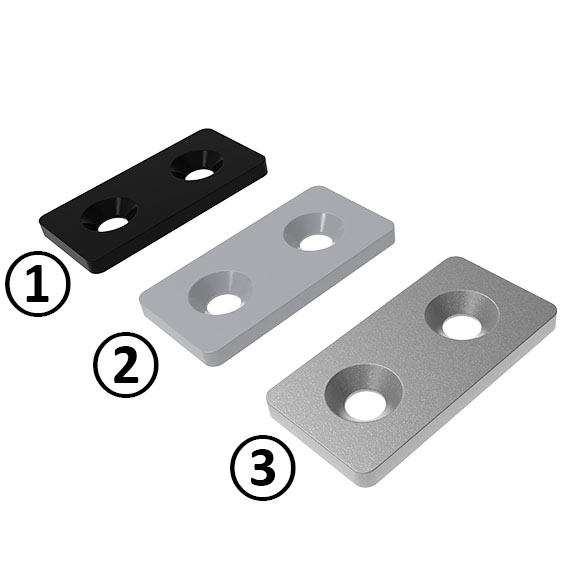

Connection Plate ST Rectangular 2 Hole, 1 Slot Version

A (mm): 40.0 B (mm): 40.0 Color: Negro Fig.: ① H (mm): 5.0 L (mm): 80.0 Para Tornillo: 2x M8 Superficie: Polvo cubierto

Color:Negro, color alu, -Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesPFA_Fastening:Tornillos avellanadosMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto / zincado azul

0,00 €

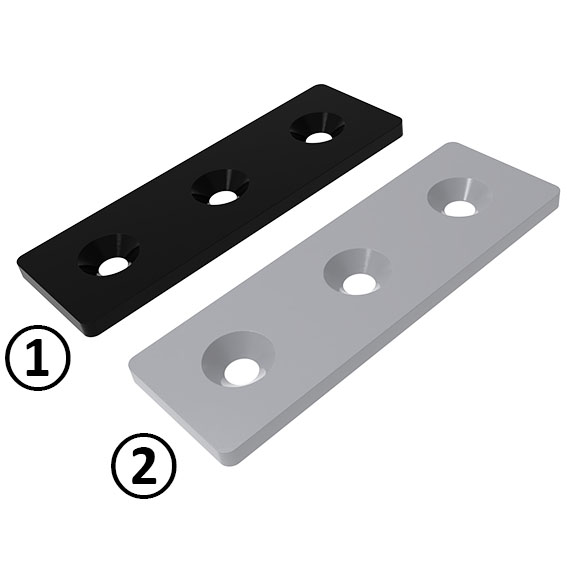

Connection Plate ST Rectangular 3 Hole, 1 Slot Version

A (mm): 2x 40.0 B (mm): 40.0 Color: Color alu Fig.: ② H (mm): 5.0 L (mm): 120.0 Para Tornillo: 3x M8 Superficie: Polvo cubierto

Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

0,00 €

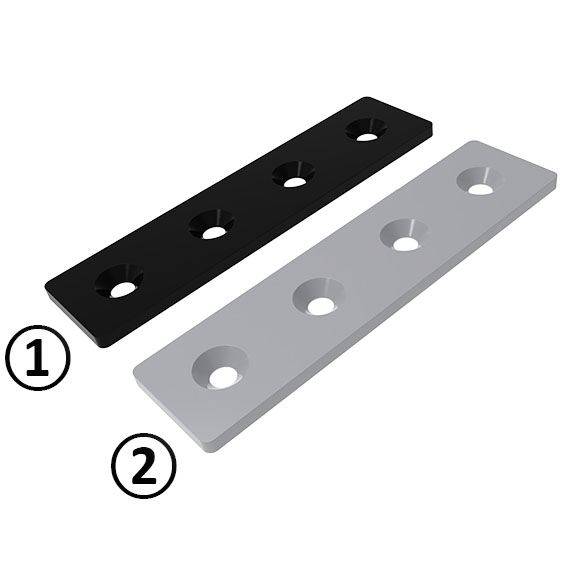

Connection Plate ST Rectangular 4 Hole, 1 Slot Version

A (mm): 3x 40.0 B (mm): 40.0 Color: Negro Fig.: ① H (mm): 5.0 L (mm): 160.0 Para Tornillo: 4x M8 Superficie: Polvo cubierto

Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

0,00 €

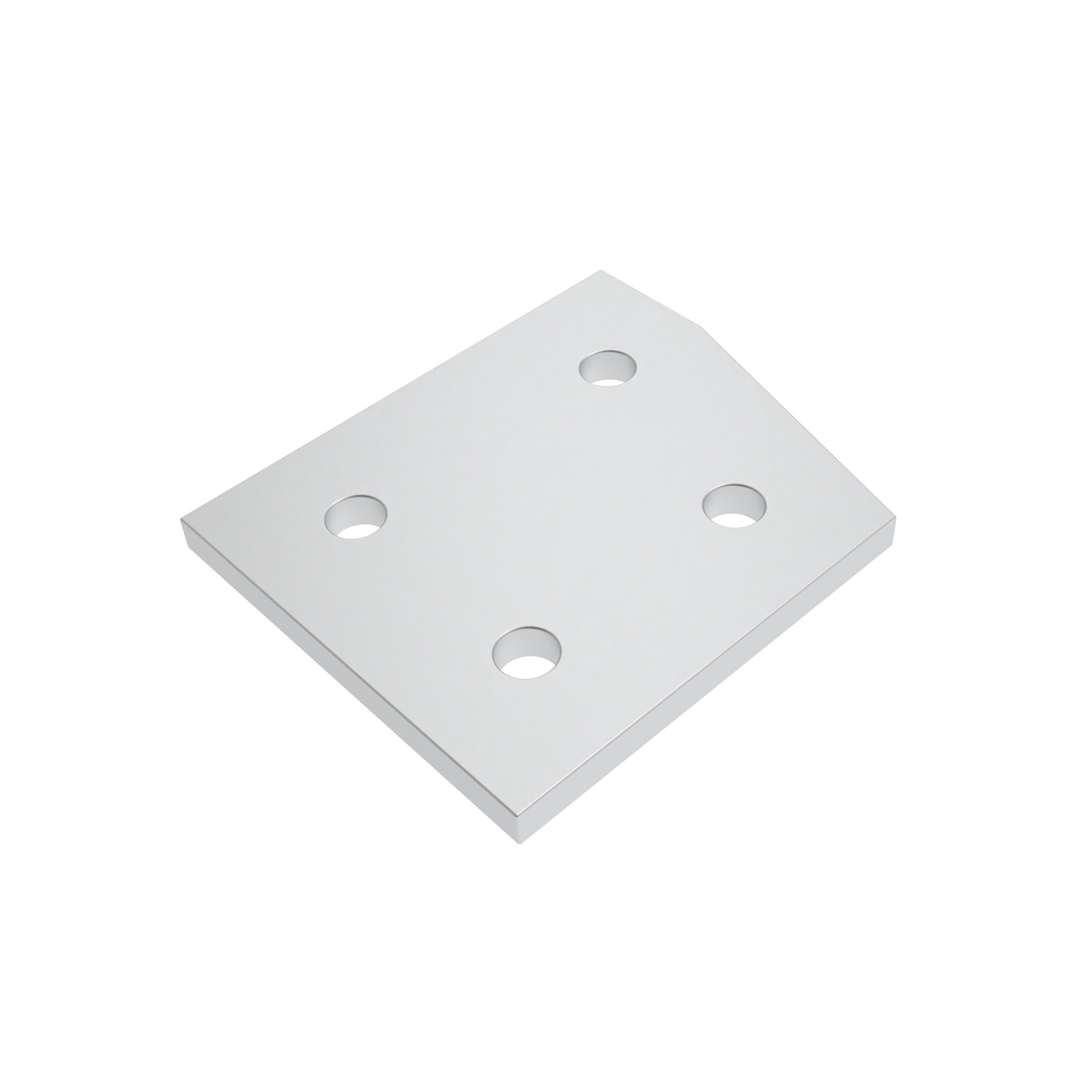

ECO Connection Plate AL 15° 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") H (mm): 6.35 (0.25") K (mm): 23.98 (0.94") K (mm): 74.9 (2.94") L (mm): 88.9 (3.5") Version: 76.2 / 88.9 - 3" / 3.5" ØD (mm): 9.0 (0.35")
