Mitre Connectors

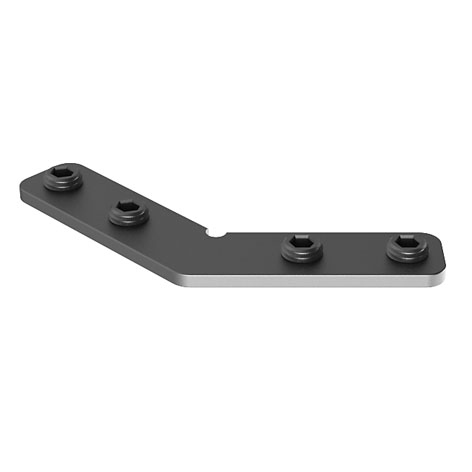

Mitre Connector 45°
0,00 €*
A (mm):
20.2
|
B (mm):
60.0
|
C (mm):
3.0
|
L (mm):
10.0
|
SW:
5
|
Tornillo de cabeza hueca hexagonal:
M10
Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroSuperficie:GalvanizadoZolltarifnummer:73269098900

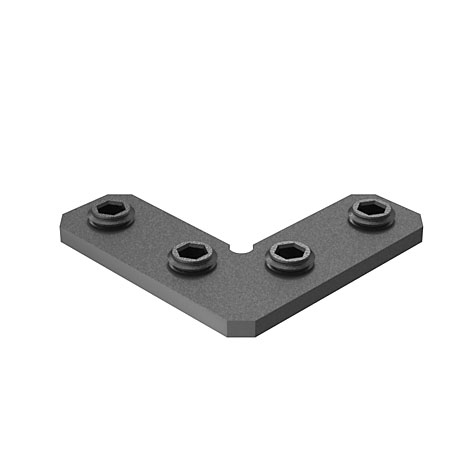

Mitre Connector 90°
0,00 €*
A (mm):
20.2
|
B (mm):
60.0
|
C (mm):
3.0
|
L (mm):
10.0
|
SW:
5
|
Tornillo de cabeza hueca hexagonal:
M10
Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroSuperficie:GalvanizadoZolltarifnummer:73269098900

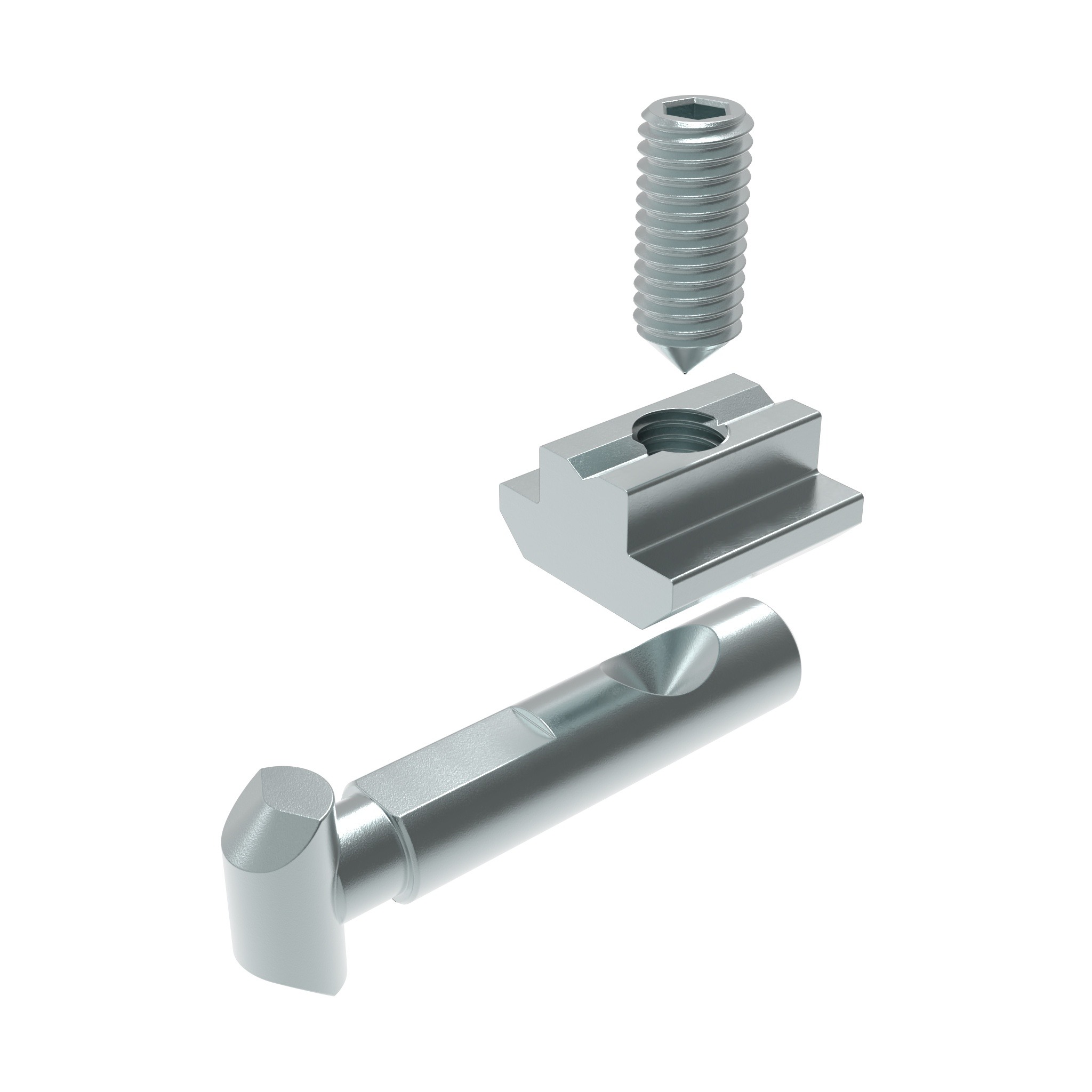

Mitre Connector B 45°-90°, Slot 10
0,00 €*
Profile:
B
|
Ranura N (mm):
10
Países de Entrega:En todo el mundoDescription:End-to-end connection of an aluminum profile with a mitre cut (cut γ = 45° - 90°) to another aluminum profile; before the application a hole with Ø 8.2 mm lateral must be drilled; with T-slot nut and threaded pin with AF 4Material:Galvanizado / lisoSuperficie:GalvanizadoZolltarifnummer:73269098900

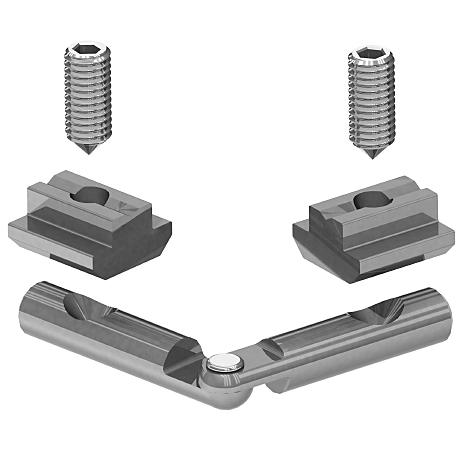

Mitre Connector B 60°-180°, Slot 10
0,00 €*
Profile:
B
|
Ranura N (mm):
10
Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles with a mitre cut (cut each γ = 60° - 90°); before the application a hole with Ø 8.2 mm in a distance of 34 mm of the profile end must be drilled; with T-slot nut and threaded pin with AF 4Material:AceroSuperficie:GalvanizadoZolltarifnummer:73269098900

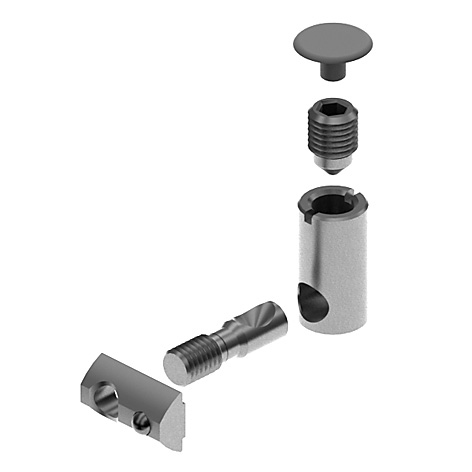

Mitre Connector I 30°-90°, Slot 8
0,00 €*
Profile:
I
|
Ranura N (mm):
8
Color:Cover cap: gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:End-to-end connection of an aluminum profile with a mitre cut (cut γ = 30° - 90°) to another aluminum profile; before the application each a hole with Ø 14.2 mm lateral and Ø 9.0 mm frontal must be drilled; with T-slot nut and cover capMaterial:Connector and T-slot nut: Steel Cover caps: Plastic PPSurface:Connector and T-slot nut: Zinc platedZolltarifnummer:73269098900

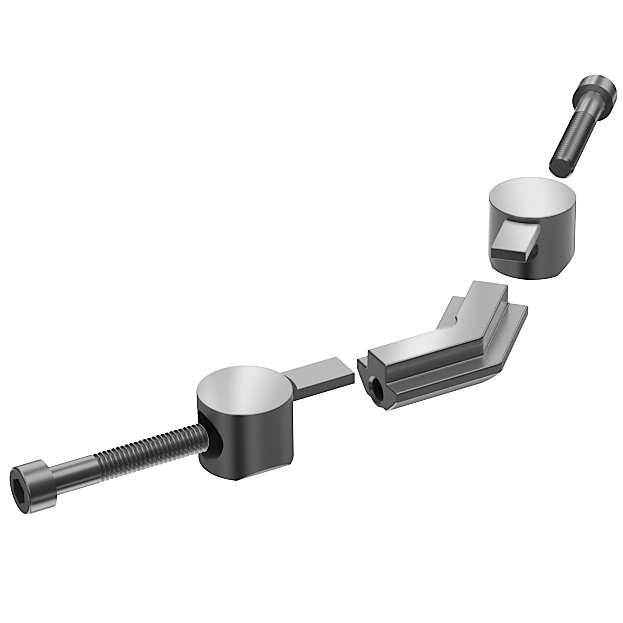

Universal Mitre Connector I (Set)
0,00 €*
Ranura N (mm):
8
Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles with a mitre cutMaterial:Fundición a presión de zincSet:1 mitre connector, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 35Superficie:GalvanizadoZolltarifnummer:79070000900
