Bisagras de superficie

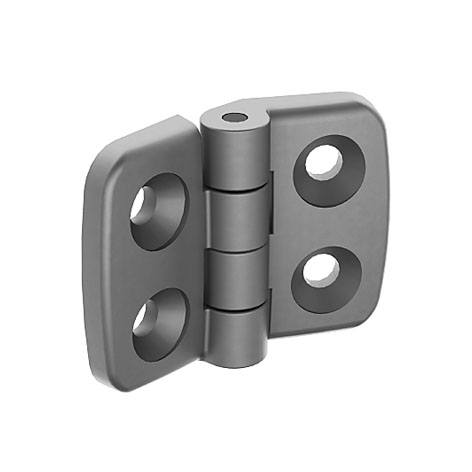

Aluminum Die-Cast Combi Hinge 20, Non-detachable, Alu color
0,00 €*
Combinación:
20 / 20
|
FAmax (N):
215
|
FRmax (N):
275
|
Version:
No desmontable
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profilesMaterial:Wings: Aluminum die-cast Pin: Stainless steelSurface:Wings: Powder coated Pin: Plain

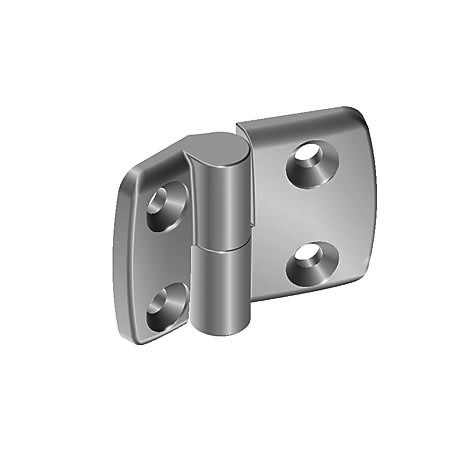

Aluminum Die-cast Combi Hinge 25, Detachable, Alu Color
0,00 €*
A1 (mm):
15.0
|
A2 (mm):
15.0
|
B1 (mm):
26.0
|
B2 (mm):
26.0
|
Combinación:
25 / 25
|
FAmax (N):
250
|
FRmax (N):
410
|
Version:
R: Derecha
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

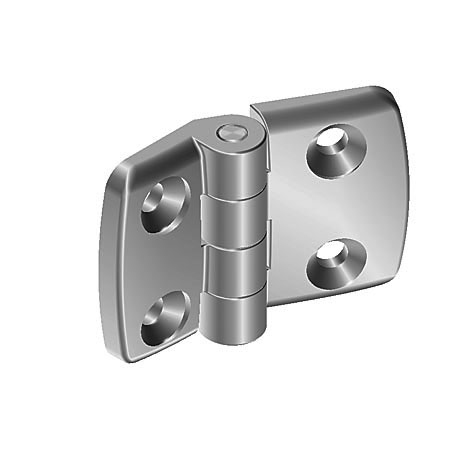

Aluminum Die-cast Combi Hinge 25, Non-detachable, Alu Color
0,00 €*
A1 (mm):
15.0
|
A2 (mm):
17.5
|
B1 (mm):
26.0
|
B2 (mm):
29.5
|
Combinación:
25 / 30
|
FAmax (N):
225
|
FRmax (N):
325
|
Version:
No desmontable
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

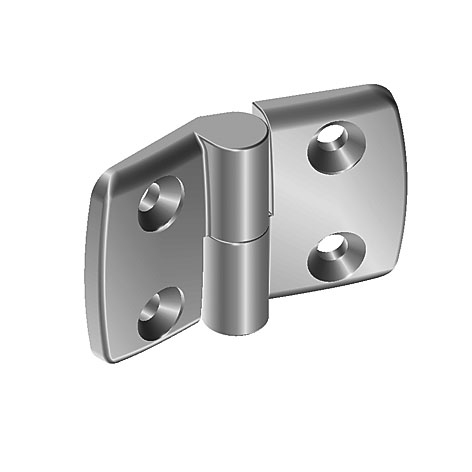

Aluminum Die-cast Combi Hinge 30, Detachable, Alu Color
0,00 €*
A1 (mm):
17.5
|
A2 (mm):
17.5
|
B1 (mm):
29.5
|
B2 (mm):
29.5
|
Combinación:
30 / 30
|
FAmax (N):
280
|
FRmax (N):
450
|
Version:
R: Derecha
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05
Aluminum Die-cast Combi Hinge 30, Non-detachable, Alu Color
0,00 €*
A1 (mm):
17.5
|
A2 (mm):
27.5
|
B1 (mm):
29.5
|
B2 (mm):
48.5
|
Combinación:
30 / 50
|
FAmax (N):
250
|
FRmax (N):
400
|
Version:
No desmontable
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05
Aluminum Die-cast Combi Hinge 35, Detachable, Alu Color
0,00 €*
A1 (mm):
20.0
|
A2 (mm):
20.0
|
B1 (mm):
36.0
|
B2 (mm):
36.0
|
Combinación:
35 / 35
|
FAmax (N):
250
|
FRmax (N):
-
|
Version:
L: Izquierda
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

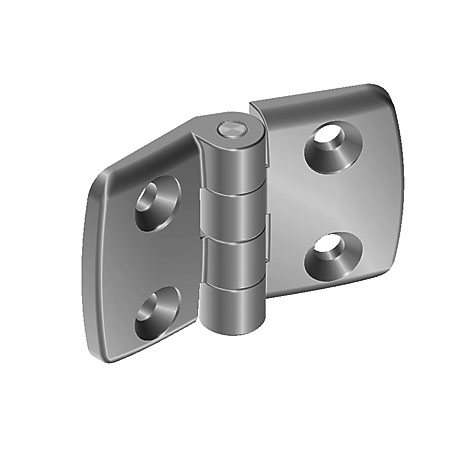

Aluminum Die-cast Combi Hinge 35, Non-detachable, Alu Color
0,00 €*
A1 (mm):
20.0
|
A2 (mm):
22.5
|
B1 (mm):
36.0
|
B2 (mm):
38.5
|
Combinación:
35 / 40
|
FAmax (N):
250
|
FRmax (N):
400
|
Version:
No desmontable
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05
Aluminum Die-cast Combi Hinge 40, Detachable, Alu Color
0,00 €*
A1 (mm):
15.0
|
A2 (mm):
22.5
|
B1 (mm):
26.0
|
B2 (mm):
38.5
|
Combinación:
40 / 25
|
FAmax (N):
250
|
FRmax (N):
410
|
Version:
R: Derecha
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

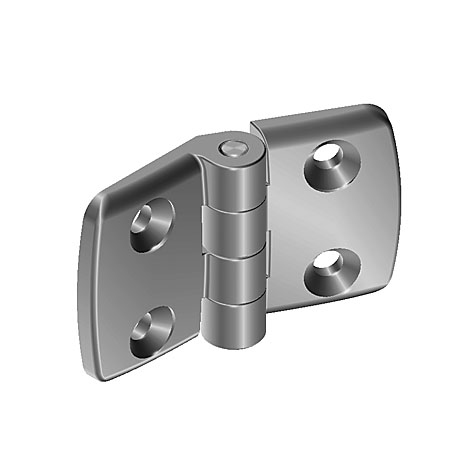

Aluminum Die-cast Combi Hinge 40, Non-detachable, Alu Color
0,00 €*
A1 (mm):
22.5
|
A2 (mm):
32.5
|
B1 (mm):
38.5
|
B2 (mm):
57.5
|
Combinación:
40 / 60
|
FAmax (N):
-
|
FRmax (N):
400
|
Version:
No desmontable
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

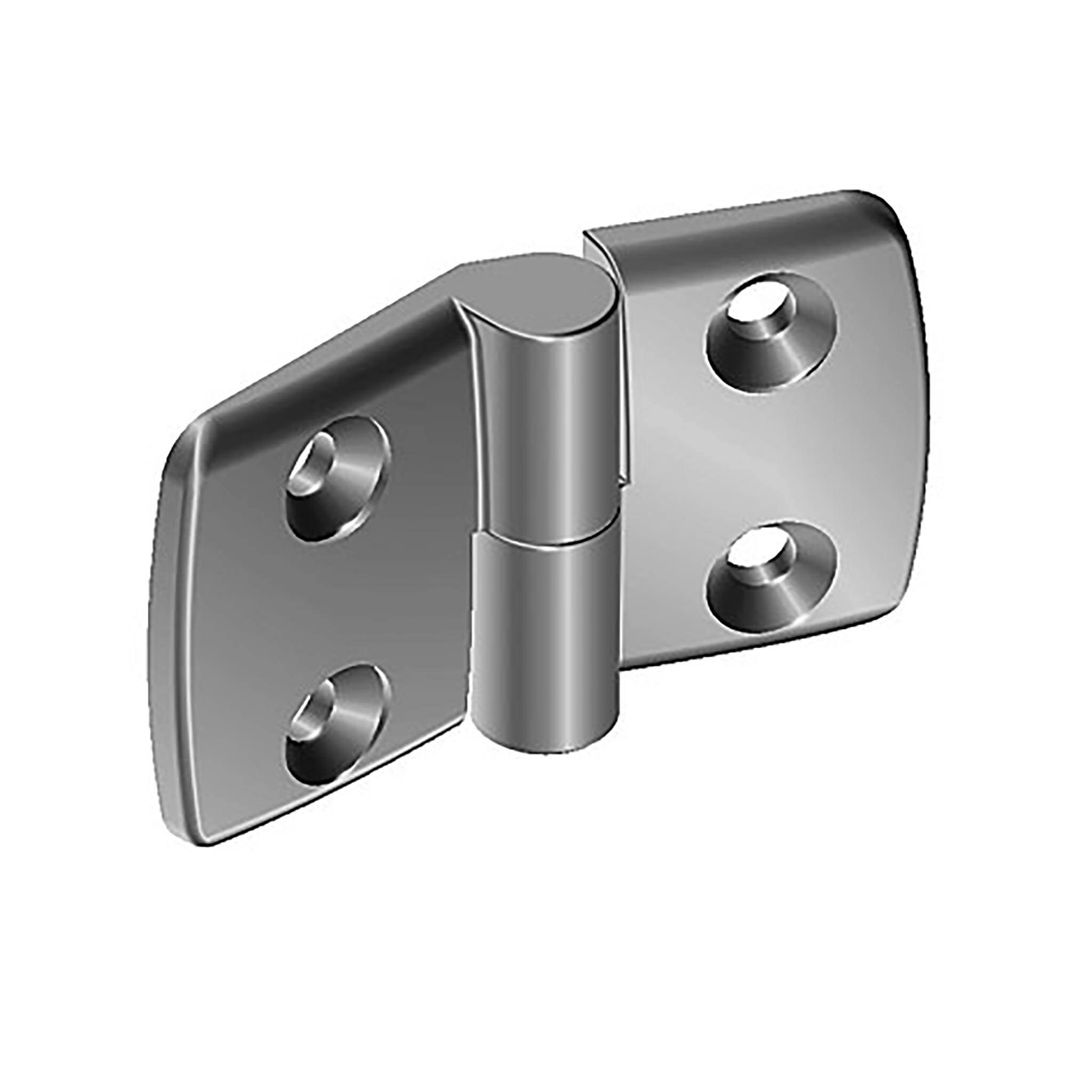

Aluminum Die-cast Combi Hinge 45, Detachable, Alu Color
0,00 €*
A1 (mm):
25.0
|
A2 (mm):
17.5
|
B1 (mm):
43.5
|
B2 (mm):
29.5
|
Combinación:
45 / 30
|
FAmax (N):
280
|
FRmax (N):
450
|
Version:
L: Izquierda
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05
Aluminum Die-cast Combi Hinge 45, Non-detachable, Alu Color
0,00 €*
A1 (mm):
25.0
|
A2 (mm):
27.5
|
B1 (mm):
43.5
|
B2 (mm):
48.5
|
Combinación:
45 / 50
|
FAmax (N):
250
|
FRmax (N):
400
|
Version:
No desmontable
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

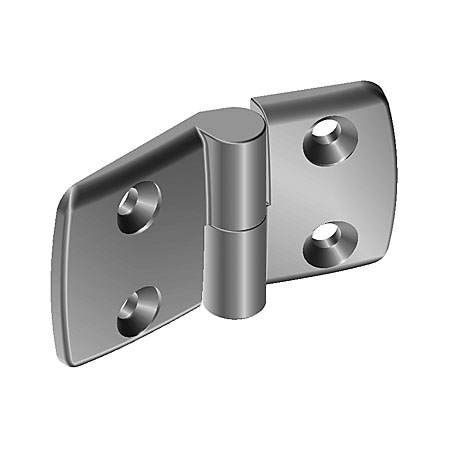

Aluminum Die-cast Combi Hinge 50, Detachable, Alu Color
0,00 €*
A1 (mm):
27.5
|
A2 (mm):
17.5
|
B1 (mm):
48.5
|
B2 (mm):
29.5
|
Combinación:
50 / 30
|
FAmax (N):
280
|
FRmax (N):
450
|
Version:
L: Izquierda
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05
Aluminum Die-cast Combi Hinge 50, Non-detachable, Alu Color
0,00 €*
A1 (mm):
27.5
|
A2 (mm):
27.5
|
B1 (mm):
48.5
|
B2 (mm):
48.5
|
Combinación:
50 / 50
|
FAmax (N):
250
|
FRmax (N):
400
|
Version:
No desmontable
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05
Aluminum Die-cast Combi Hinge 60, Detachable, Alu Color
0,00 €*
A1 (mm):
25.0
|
A2 (mm):
32.5
|
B1 (mm):
43.5
|
B2 (mm):
57.5
|
Combinación:
60 / 45
|
FAmax (N):
-
|
FRmax (N):
550
|
Version:
R: Derecha
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05

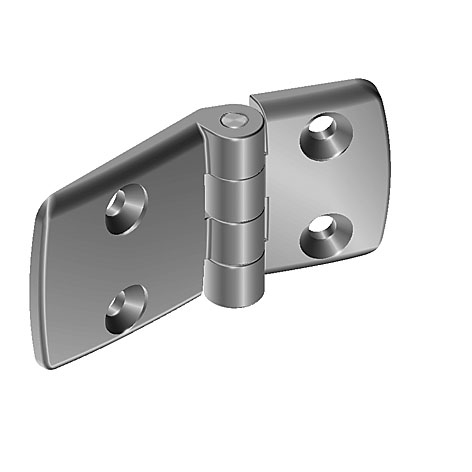

Aluminum Die-cast Combi Hinge 60, Non-detachable, Alu Color
0,00 €*
A1 (mm):
32.5
|
A2 (mm):
32.5
|
B1 (mm):
57.5
|
B2 (mm):
57.5
|
Combinación:
60 / 60
|
FRmax (N):
400
|
Version:
No desmontable
Color:Wing: Alu colorPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainTip:Compatible Central Bolts see 095AN05
Heavy-duty Plastic Hinge 65 x 64
0,00 €*
FAmax (N):
1520
|
FRmax (N):
2850
Color:NegroPaíses de Entrega:En todo el mundoDescription:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
Light Stainless Steel Hinge
0,00 €*
A1 (mm):
12.0
|
A2 (mm):
12.0
|
B1 (mm):
20.0
|
B2 (mm):
20.0
|
FAmax (N):
320.0
|
FRmax (N):
390.0
|
Version:
incl. conjunto de montaje
Assembly Set:4 pan-head screws DIN EN ISO 7380 (DIN 34805) - M4 x 6, 4 hammer nuts M4 - Nut 6Países de Entrega:En todo el mundoDescription:To hinge panels or aluminum profilesMaterial:Wing: Stainless steel 1.4301 Bolt: Stainless steel 1.4301Superficie:Liso
Metal Hinge 40 x 40
0,00 €*
FRmax (N):
1500
Color:NegroPaíses de Entrega:En todo el mundoDescription:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSuperficie:Polvo cubierto
Metal Hinge 50 x 50
0,00 €*
FAmax (N):
1000
|
FRmax (N):
1800
Color:NegroPaíses de Entrega:En todo el mundoDescription:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSuperficie:Polvo cubierto
Metal Hinge 50 x 63
0,00 €*
FAmax (N):
1400
|
FRmax (N):
2200
Color:NegroPaíses de Entrega:En todo el mundoDescription:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSuperficie:Polvo cubierto
Metal Hinge 50 x 76
0,00 €*
FAmax (N):
600
|
FRmax (N):
1800
Color:NegroPaíses de Entrega:En todo el mundoDescription:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSuperficie:Polvo cubierto
Metal Hinge 60 x 60
0,00 €*
FAmax (N):
1400
|
FRmax (N):
2200
Color:NegroPaíses de Entrega:En todo el mundoDescription:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSuperficie:Polvo cubierto
Metal Hinge 60 x 76
0,00 €*
FAmax (N):
1200
|
FRmax (N):
2200
Color:NegroPaíses de Entrega:En todo el mundoDescription:Sturdy hinge for right and left hand applicationMaterial:Wings: Zinc die-cast Axle: Stainless steelSuperficie:Polvo cubierto

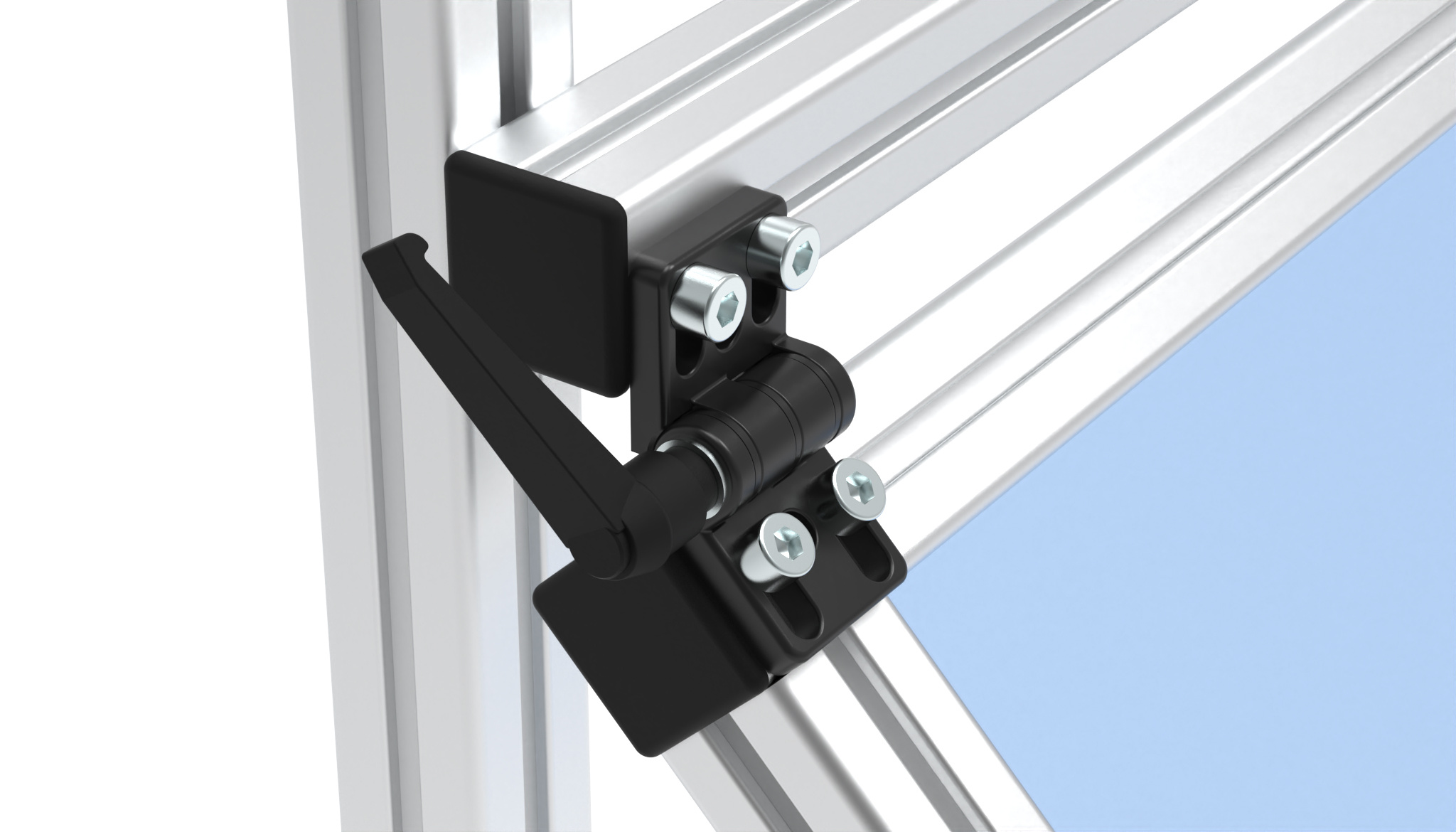

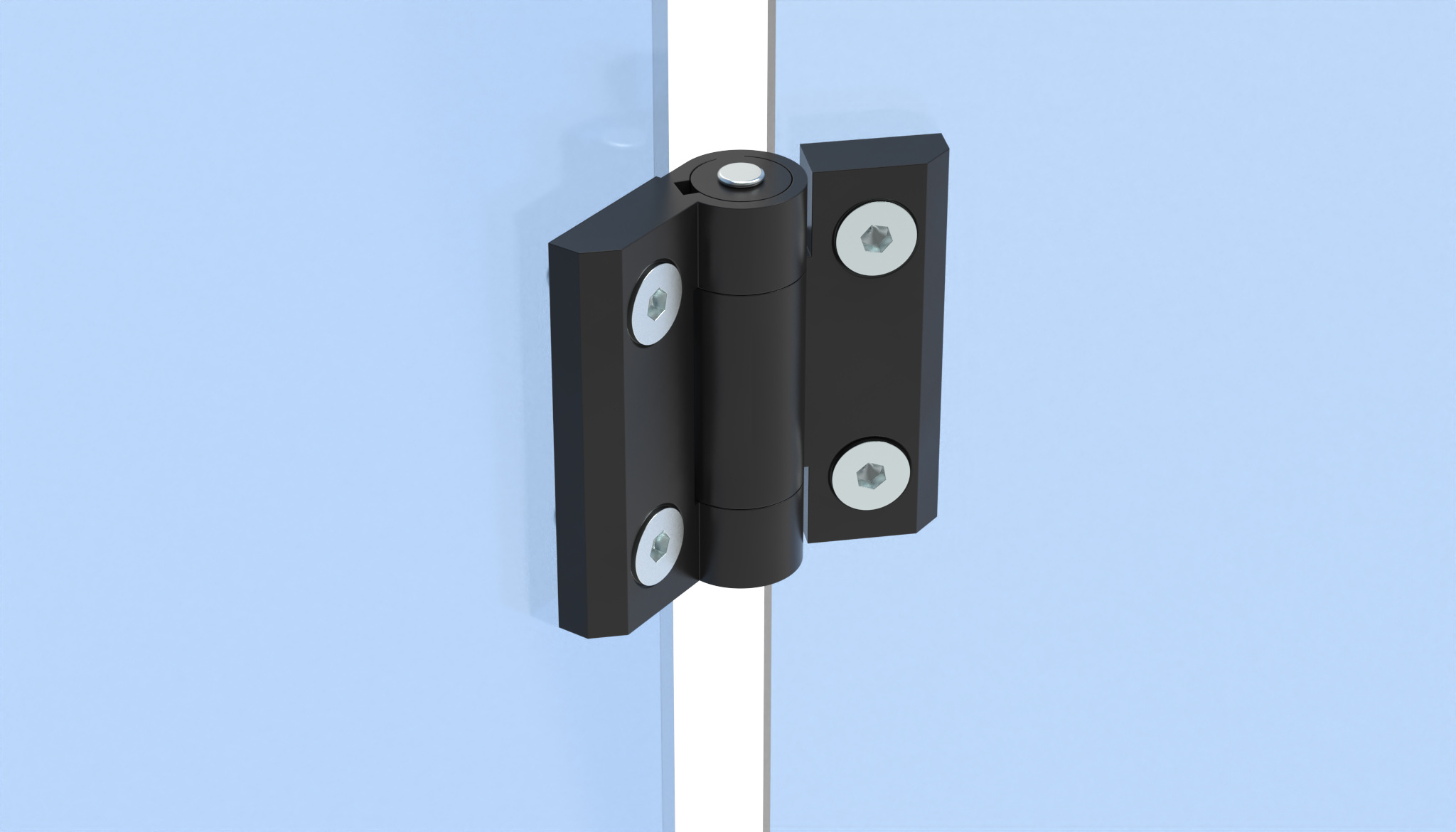

Metal Hinge with Positioning Function
0,00 €*
FAmax (N):
1000
|
FRmax (N):
1800
Color:NegroPaíses de Entrega:En todo el mundoDescription:For panels and aluminum profiles; holds a door open at an angle of 85° or 175° or keeps it securely closed; also supports lightweight doorsMaterial:Wings: Zinc die-cast Axle: Stainless steelSuperficie:Polvo cubiertoConsejo:* +/- 20% del valor de ajuste
