Profile Slider ZN 40 x 80 Loose Bearing with Cam Lever (Set)
0,00 €

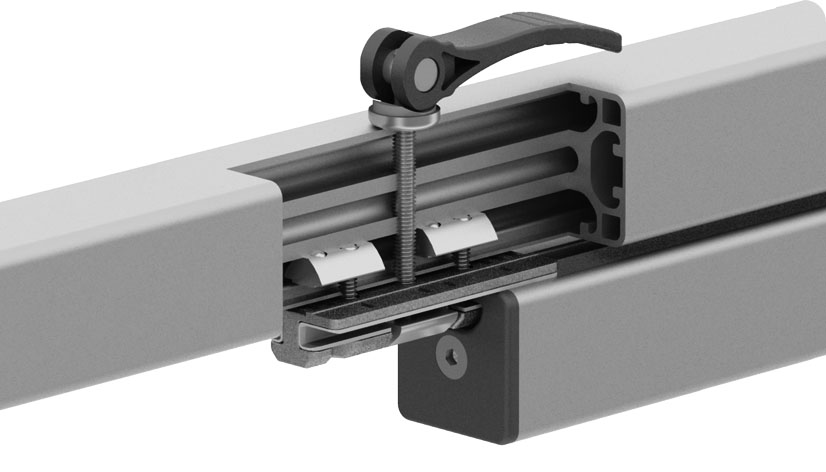

To guide slidingly profiles with slot 8, loose bearing*, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stop
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
Cam lever handle: Plastic, glass fiber reinforced
Cam lever mechanics: Steel
O-ring: EPDM
Surface:
Sliding carriage: Zinc plated
Slide shoe: Zinc plated
Cam lever mechanics: Zinc plated
Color:
Slide shoe: Natural
Cam lever handle: Black
O-ring: Black
Set:

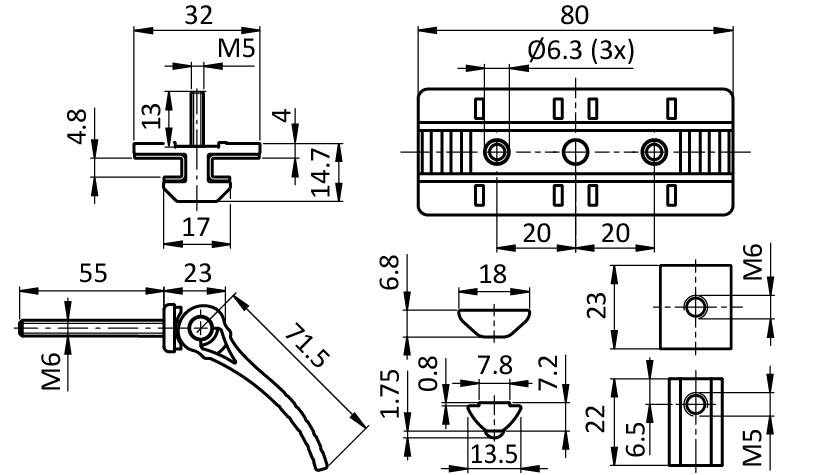

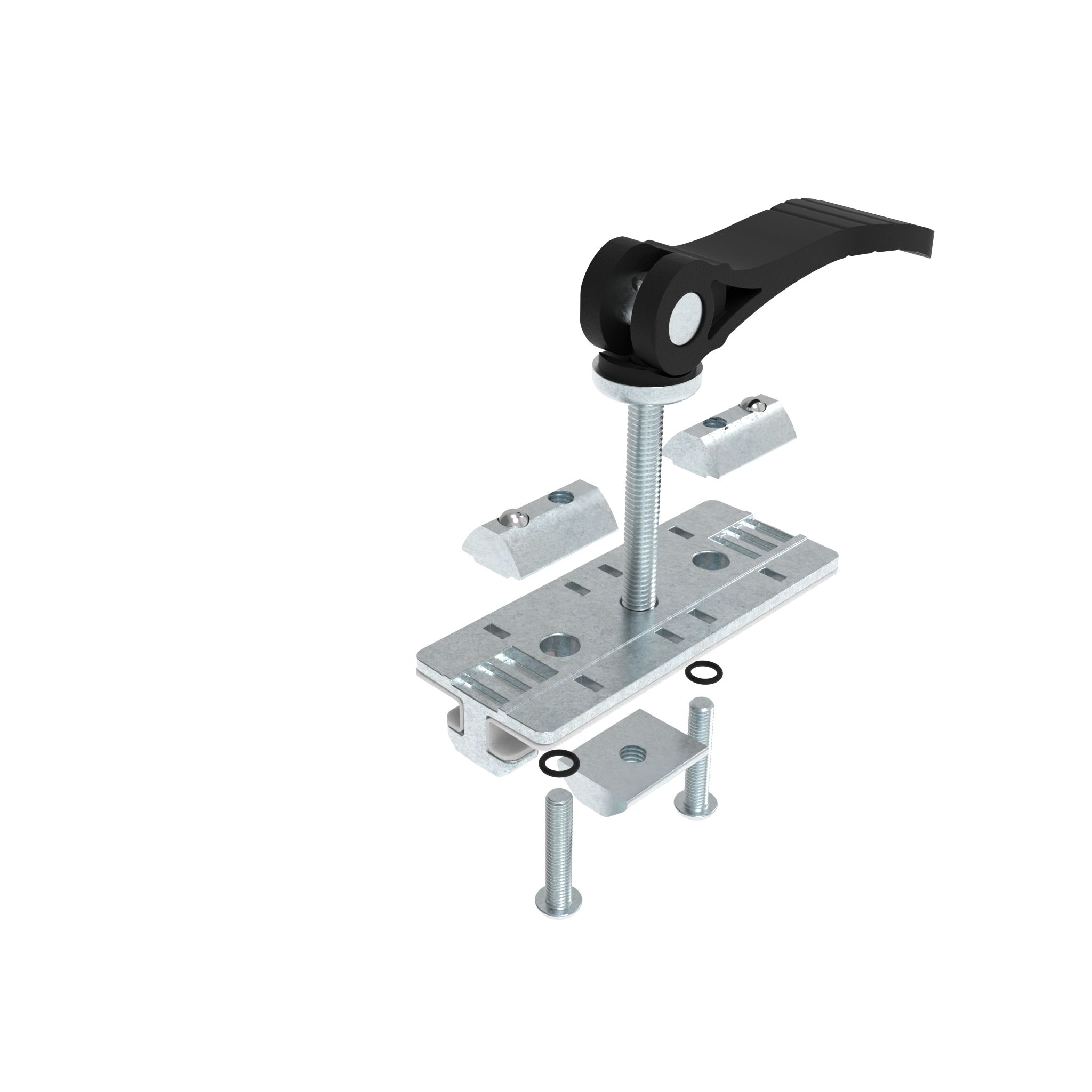

1 sliding carriage,
2 slide shoes,
1 cam lever with external thread M6 x 55**,
1 special T-slot nut - slot 8 - M6,
2 button head screws DIN EN ISO 7380 (DIN 34805) - M5 x 25,
2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5,
2 T-slot nuts - slot 8 - M5
Tip:
*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.
**Use of the M6 cam lever:
40 mm profile + 40 mm profile, thread length: 55 mm
Cut to length of the M6 cam lever, e.g.:
40 mm profile + 20 mm profile, cut thread length to: 35 mm
40 mm profile + 10 mm panel, cut thread length to: 25 mm
Tip 2:
Compatible Profile Slider ZN 40 x 80 Fixed Bearing see 093PS0840F
Compatible Fixed bearing with cam lever see 093PS0840FS02
