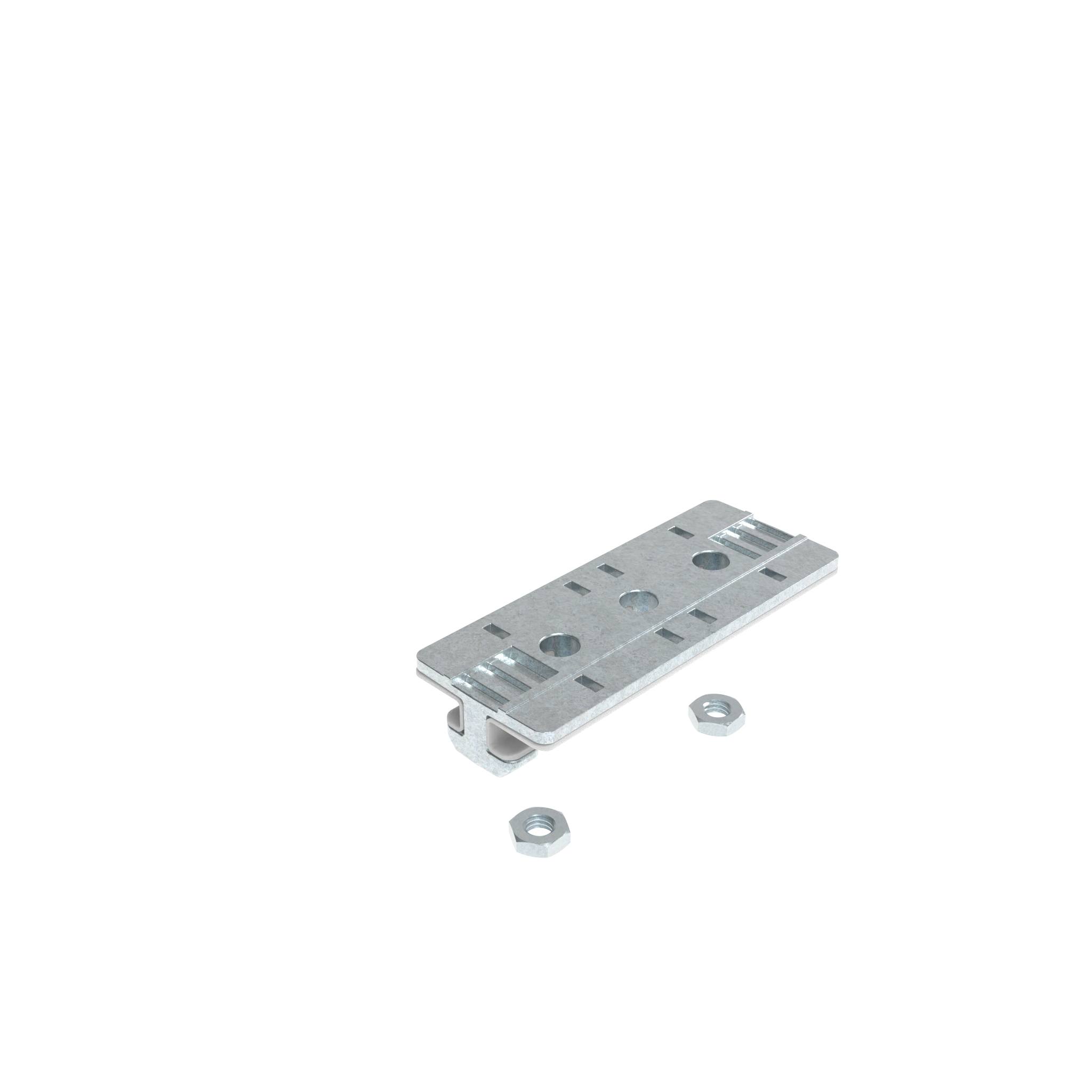

Profile Slider ZN 40 x 80 (Set)
0,00 €

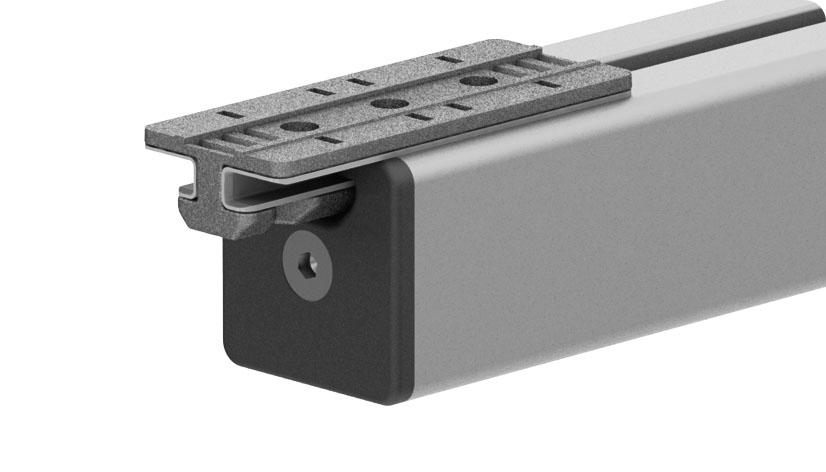

To guide slidingly profiles with slot 8, delivered with hexagon nuts M6 forthe fixation of add-on elements
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
Surface:
Sliding carriage: Zinc plated
Fixation: Zinc plated
Color:
Slide shoe: Natural

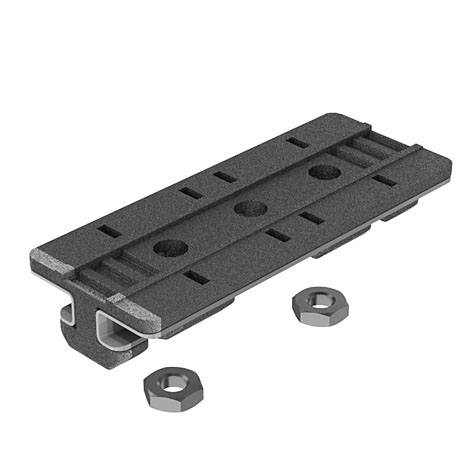

Set:
1 sliding carriage,
2 slide shoes,
2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6
Tip:
Compatible Profile Sliders ZN 40 x 80 sets with assembly set for loose bearing and fixed bearing see 093PS0840L and 093PS0840F
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | Slot 8 |
| Peso (g): | 77.0 |
| Numero de ERP: | 128853 |
Retratos de productos
Clasificación
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360192
- ECLASS 12.0
- 23360192
- ECLASS 13.0
- 23360192
- Zolltarifnummer
- 79070000900
- Número de Arancel Aduanero de Exportación
- 73269098
Certificados
Accesorios adecuados
Description:To guide slidingly profiles with slot 8, loose bearing*Material:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel O-ring: EPDMSurface:Sliding carriage: Zinc plated Fixation: Zinc platedColor:Slide shoe: Natural O-ring: BlackSet:1 sliding carriage, 2 slide shoes, 2 button head screws DIN EN ISO 7380 (DIN 34805) - M5 x 25, 2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5, 2 T-slot nuts - slot 8 - M5Tip:*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.Tip 2:Compatible Profile Slider ZN 40 x 80 Fixed Bearing see 093PS0840FPaíses de Entrega:En todo el mundo
Description:To guide slidingly profiles with slot 8, fixed bearing*Material:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel O-ring: EPDMSurface:Sliding carriage: Zinc plated Fixation: Zinc platedColor:Slide shoe: Natural O-ring: BlackSet:1 sliding carriage, 2 slide shoes, 2 button head screws DIN EN ISO 7380 (DIN 34805) - M6 x 25, 2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5, 2 T-slot nuts - slot 8 - M6Tip:*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.Tip 2:Compatible Profile Slider ZN 40 x 80 loose bearing see 093PS0840LPaíses de Entrega:En todo el mundo
