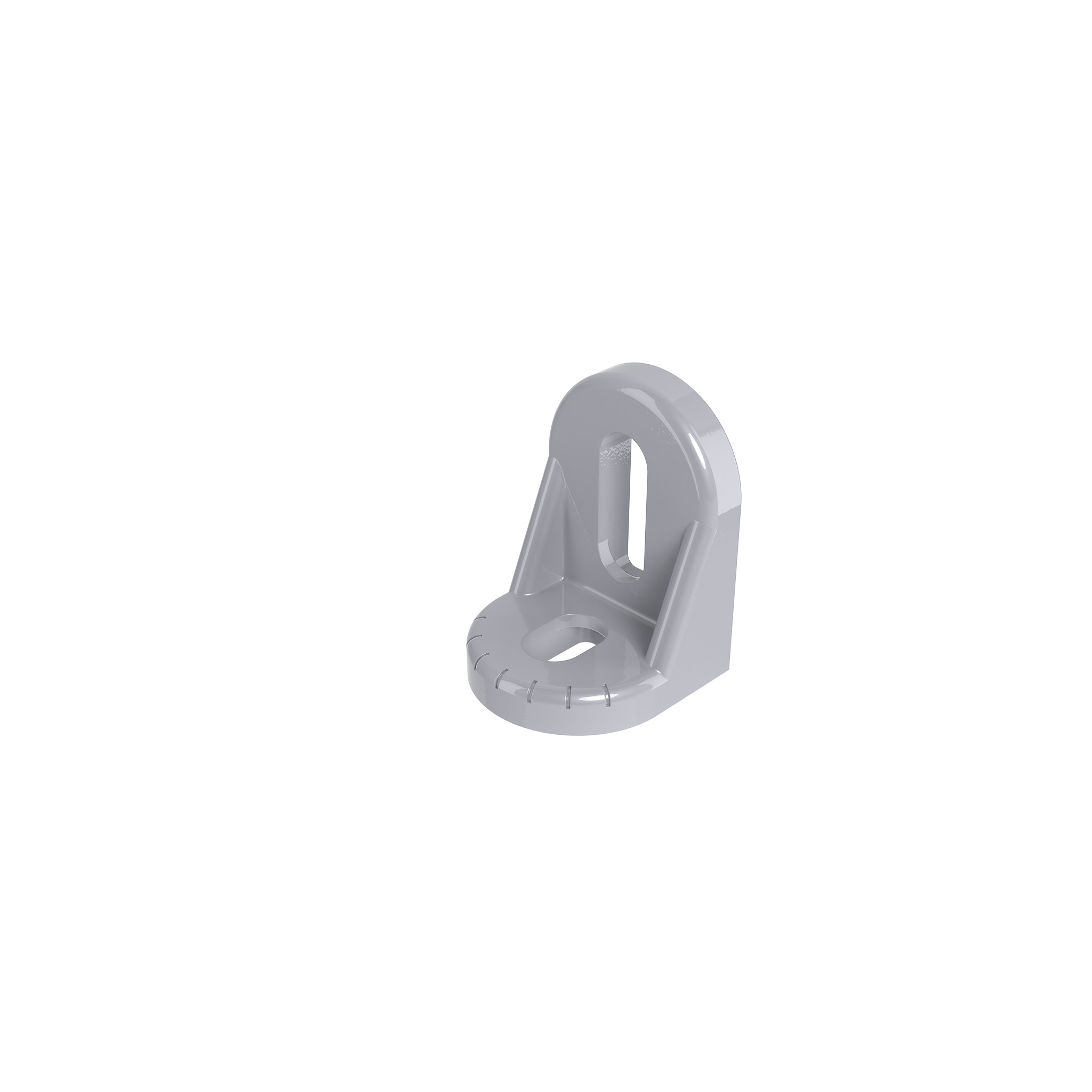

Turning Angle 30
0,00 €
Número de producto:
093WG302N08S04
Cantidad por Paquete:
10 piezas / 10 jconjuntos
Información sobre el producto "Turning Angle 30"
Assembly Set 1:
1 screw DIN 7984 - M6 x 14,
1 screw DIN 7984 - M8 x 16,
1 washer DIN EN ISO 7089 (DIN 125) - M6,
1 hammer nut - slot 10 - M8,
1 hammer nut - slot 8 - M6,
2 centering pieces - slot 8 to slot 10
Assembly Set 2:
2 screws DIN 7984 - M8 x 16,
2 hammer nuts - slot 10 - M8,
4 centering pieces - slot 8 to slot 10
Color:
Turning angle: Alu color
Centering piece: Black
Países de Entrega:
En todo el mundo
Description:
To connect aluminum profiles at various angles from 0° to 180°
Material:
Angle: Aluminum die-cast
Centering piece: Plastic PA, glass fiber reinforced
Assembly set: Steel
Surface:
Turning angle: Plain / powder coated
Assembly set: Zinc plated
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
1 screw DIN 7984 - M6 x 14,
1 screw DIN 7984 - M8 x 16,
1 washer DIN EN ISO 7089 (DIN 125) - M6,
1 hammer nut - slot 10 - M8,
1 hammer nut - slot 8 - M6,
2 centering pieces - slot 8 to slot 10
Assembly Set 2:
2 screws DIN 7984 - M8 x 16,
2 hammer nuts - slot 10 - M8,
4 centering pieces - slot 8 to slot 10
Color:
Turning angle: Alu color
Centering piece: Black
Países de Entrega:
En todo el mundo
Description:
To connect aluminum profiles at various angles from 0° to 180°
Material:
Angle: Aluminum die-cast
Centering piece: Plastic PA, glass fiber reinforced
Assembly set: Steel
Surface:
Turning angle: Plain / powder coated
Assembly set: Zinc plated
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
| Model: | Aluminio fundido a presión |
|---|---|
| Cantidad por Paquete: | 10 piezas / 10 jconjuntos |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Peso (g): | 17.0 |
| (ECLASS 6.0): | 23360290 |
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Numero de ERP: | 127707 |
| Zolltarifnummer: | 76169910990 |
