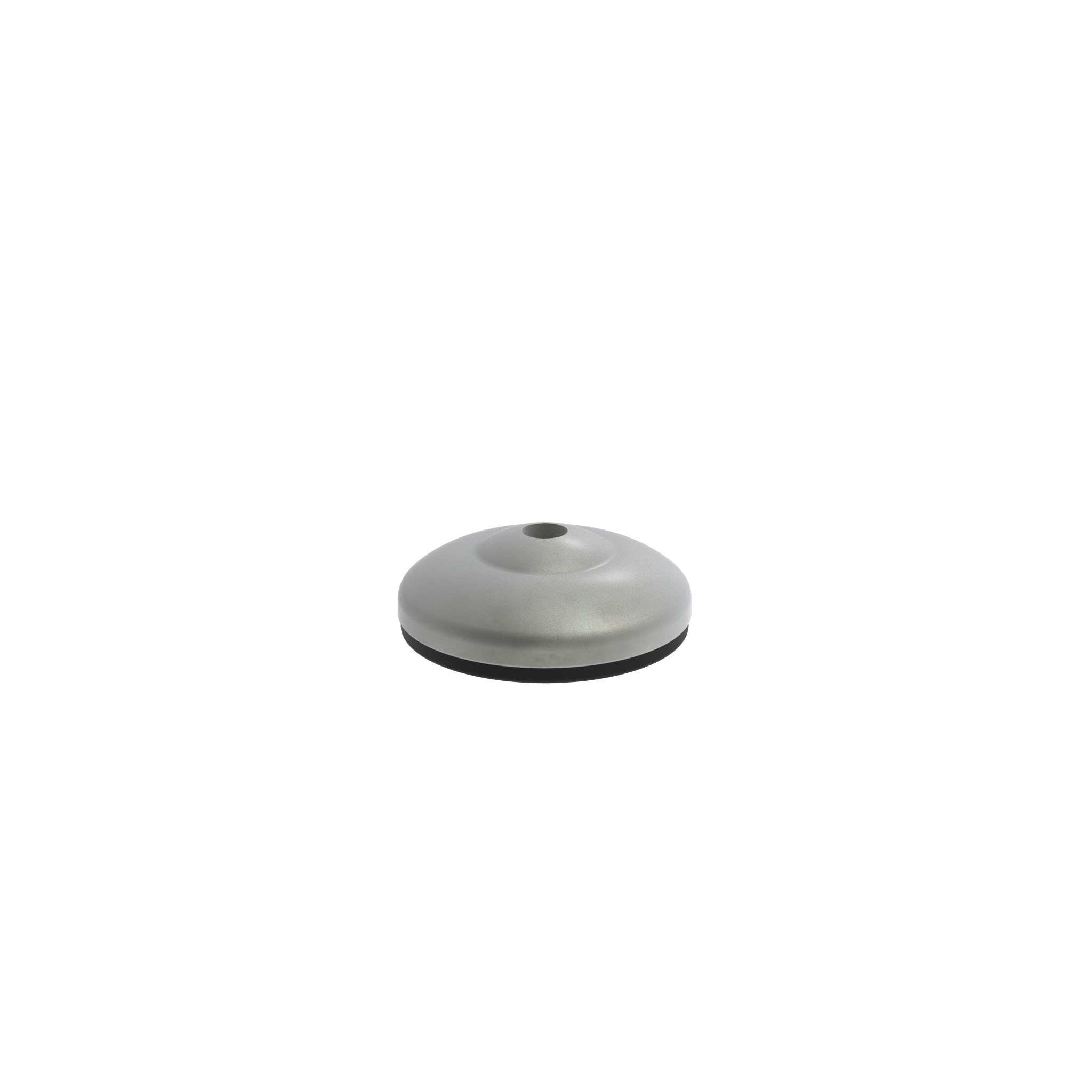

Base ZN pour pieds ECO

Informations sur le produit "Base ZN pour pieds ECO"

Couleur:
noir, -

Pays de livraison:
Monde entier

Description:
Pied de nivellement economique pour positionnement fixe sur sol légèrement irrégulier

Matériau:
Fonderie zamac

Options:
Autres surfaces, autres tailles, autres couleurs, patin anti-glisse collé sur demande

Etat de surface:
Peint. epoxy / zingué

Information:
Tige filetée compatible voir 098EM08025M,
Écrou compatible voir 4DIN439BM5M et suivant,
Patin anti-glisse compatible voir 098EG030;
(Pieds ECO sont fournis assemblés en usine)
Conditionnement: 100 pièces
Modèle: Fonderie zamac
Poids (g): 70.0
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 79070000900
Code douanier exportation: 79070000
Code ERP: 104542

Variantes

Réf. produit Embase Fmax (N) D (mm) Version H (mm) F1 (mm) F2 (mm) F3 (mm) h (mm) Etat de surface Couleur F4 (mm)
098E030ZS 30 15690 29 Sans Patin anti-glisse 11.5 16.0 16.5 17.5 2.0 Peint. poudre Noir 20.0
098E030ZV 30 15690 29 Sans Patin anti-glisse 11.5 16.0 16.5 17.5 2.0 Zingué - 20.0
098E030ZVG 30 15690 29 Avec Patin anti-glisse 11.5 16.0 16.5 17.5 2.0 Zingué - 20.0
098E040ZS 40 17650 39 Sans Patin anti-glisse 12.0 16.5 17.0 18.0 2.5 Peint. poudre Noir 20.5
098E040ZV 40 17650 39 Sans Patin anti-glisse 12.0 16.5 17.0 18.0 2.5 Zingué - 20.5
098E040ZVG 40 17650 39 Avec Patin anti-glisse 12.0 16.5 17.0 18.0 2.5 Zingué - 20.5
098E050ZS 50 19600 50 Sans Patin anti-glisse 14.5 19.0 19.5 20.5 3.0 Peint. poudre Noir 23.0
098E050ZSG 50 19600 50 Avec Patin anti-glisse 14.5 19.0 19.5 20.5 3.0 - Noir 23.0
098E050ZV 50 19600 50 Sans Patin anti-glisse 14.5 19.0 19.5 20.5 3.0 Zingué - 23.0
098E050ZVG 50 19600 50 Avec Patin anti-glisse 14.5 19.0 19.5 20.5 3.0 Zingué - 23.0
