Cache ZN fix. par vis

Informations sur le produit "Cache ZN fix. par vis"

Couleur:
Noir

Pays de livraison:
Monde entier

Description:

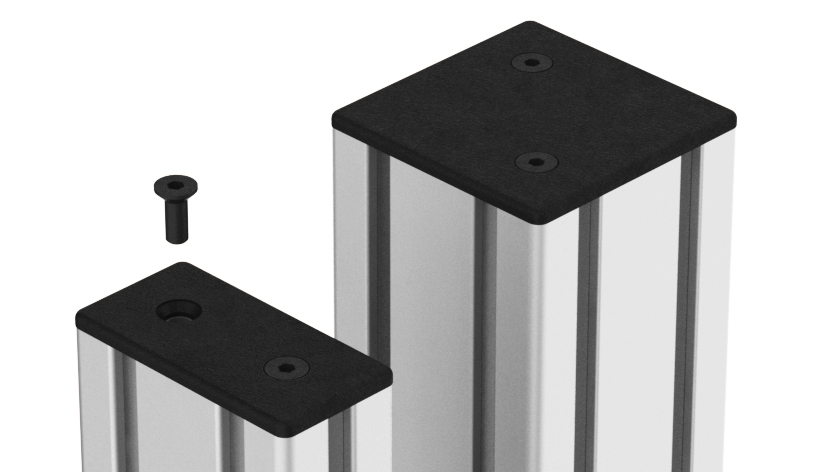

Cache à visser pour l’extrémité du profilé en aluminium

Fixation:
Avec Vis auto-formeuse à tête fraisée S7 x 16*

Matériau:
Fonderie zamac

Options:
Autres tailles, autres couleurs sur demande

Etat de surface:
Peint. poudre

Information:
*Vis auto-forrmeuse compatible S7 x16 voir 093S0716C
Modèle: Fonderie zamac
Conditionnement: 100 pièces
Code douanier exportation: 79070000
Poids (g): 50.0
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Code ERP: 128518
Zolltarifnummer: 79070000900

Variantes

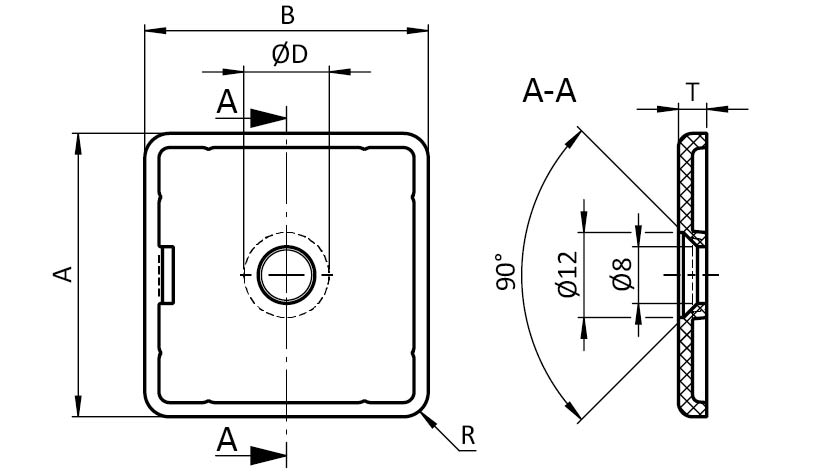

Réf. produit Fig. ØD (mm) Dimensions A x B (mm) Fonctionnalité R (mm) T (mm) Rainure N (mm) Profilé Conditionnement
091347 8.0 (6.8) 40 x 40 Bore for countersunk screw 3.5 4.0 8 I 10 pièces
091348 8.0 (6.8) 40 x 80 Bore for countersunk screw 3.5 4.0 8 I 100 pièces
091349 8.0 (6.8) 80 x 80 Bore for countersunk screw 3.5 4.0 8 I 10 pièces
