Connecteur 5 pôles pour module F Line (Kit)
Réf. produit :
6SAKP5J516BS01
Informations sur le produit "Connecteur 5 pôles pour module F Line (Kit)"
Color:
Connection coupling: Black
Pays de livraison:
Monde entier
Description:

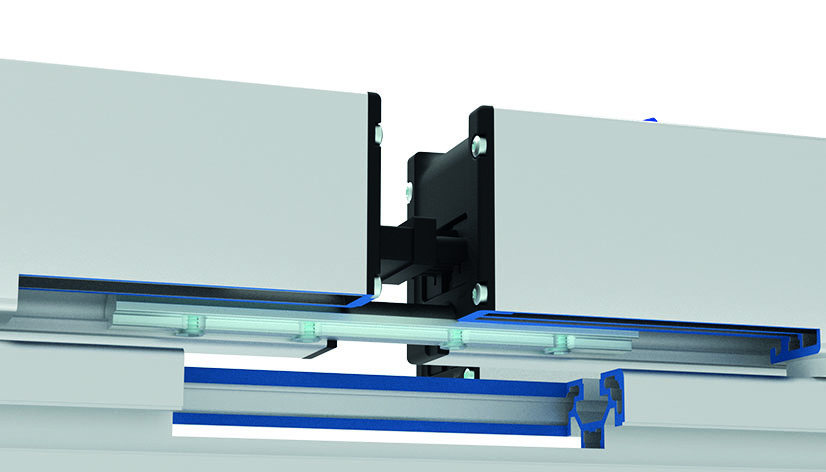

5 pole coupling piece to directly connect LED lamps and power strips Module F Line
Material:
Connection coupling: Plastic PA
Connector T-slot nut: Steel
Set:
1 connection coupling
1 connector T-slot nut
4 grub screws M8 x 10 mm
Surface:
Connector T-slot nut: Zinc-plated
Tip:
Compatible Power Strip see 6SBEU24DI.370
Compatible LED Lamp see 6SL0040RI.476
Tip 2:
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
Connection coupling: Black
Pays de livraison:
Monde entier
Description:
5 pole coupling piece to directly connect LED lamps and power strips Module F Line
Material:
Connection coupling: Plastic PA
Connector T-slot nut: Steel
Set:
1 connection coupling
1 connector T-slot nut
4 grub screws M8 x 10 mm
Surface:
Connector T-slot nut: Zinc-plated
Tip:
Compatible Power Strip see 6SBEU24DI.370
Compatible LED Lamp see 6SL0040RI.476
Tip 2:
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
| Code ERP: | 164283 |
|---|---|
| Code douanier exportation: | 85369010 |
| Conditionnement: | 1 kit |
| Courant niminal: | 20 A |
| IP Rating: | IP20 |
| PFA_ProductPortrait: | http://www.module-f-line.fath24.com |
| Permanent Temperature Resistance: | 70° C |
| Poids (g): | 137.7 |
| Tension nominale: | 250 V |
| Zolltarifnummer: | 85369010000 |
