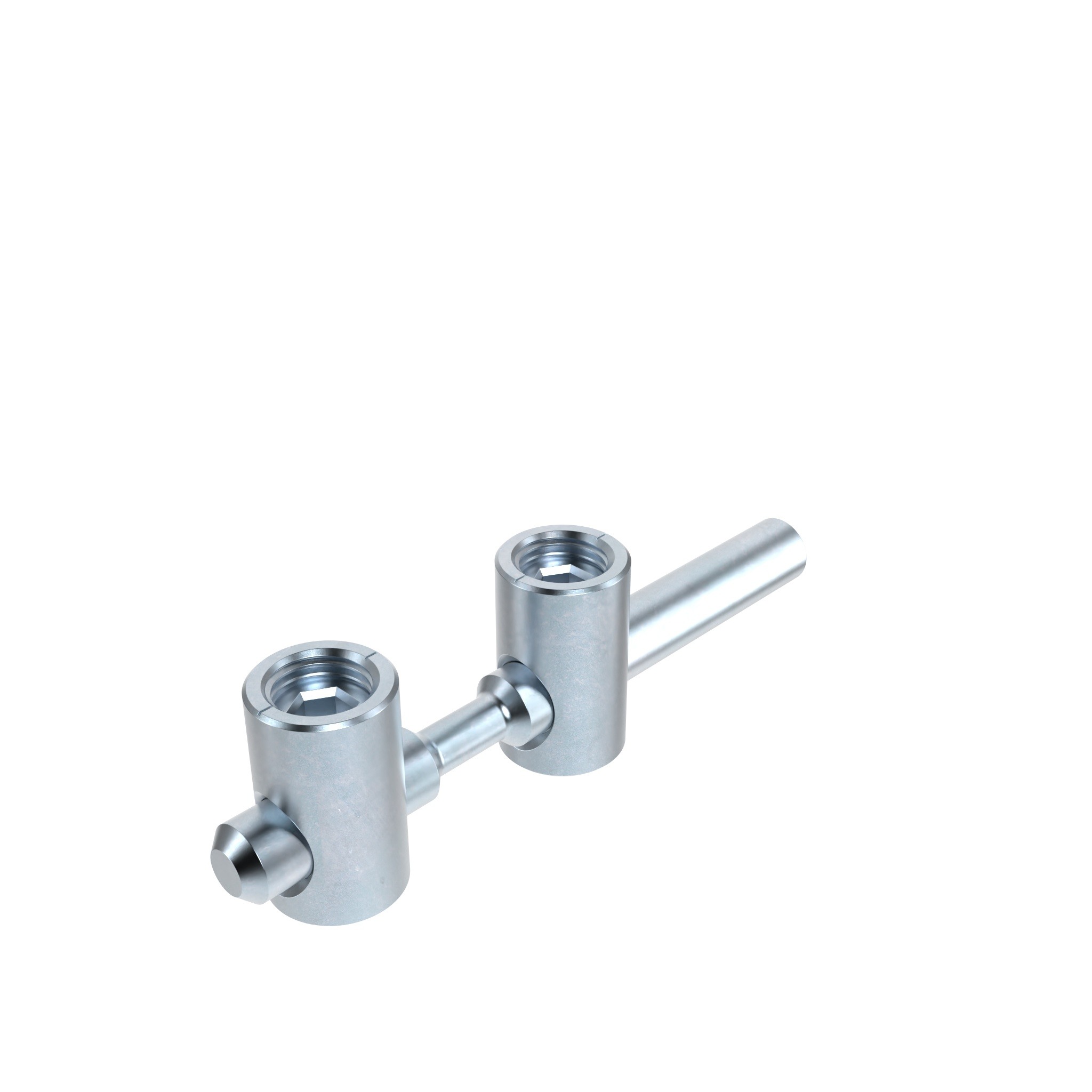

Connecteur central d'abouttement pliable B 180° +/-45

Description:
End-to-end connection of two aluminum profilesof the same type; a blind or through hole must be drilledbefore the assembly; bendable from 90° to 180°

Material:
Tie-rod: Stainless steel
Bushes: Steel

Surface:
Tie-rod: Plain
Bushes: Zinc plated

Tip:
Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50

Information 2:
Cache pour ancrage central B, rainure 10 compatible, voir 091107

Pays de livraison:
Monde entier

Conditionnement:	10 pièces
Modèle:	Acier / acier inox
Poids (g):	79.0
Code ERP:	119721

Variantes

Réf. produit	SW (mm)	D (mm)	Profilé	A (mm)	B (mm)	L (mm)	d (mm)	b (mm)	Rainure N (mm)	t (mm)	CAO
099B0811S01	4	7.1	B	31.0	10.0	75.0	Ø11	18.0	8	22.0
099B1017S01	6	9.8	B	37.5	15.0	100.0	Ø17	22.5	10	31.0 (1) 34.0 (2) 36.0 *(3)

Classification

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73269098900
Code douanier exportation: 73269098

Certificats

Tags

Profile Type	Profile Type B
Slot Size	Slot size 10
Product Feature	ESD
Profile Form	T-slot Profiles

Accessoires adaptés

Cache pour ancrage central B, rainure 10

Profilé: B L (mm): 15.0 Dimension modulaire (mm): 45 for Nut: 10

Description:Pour cacher le trou débouchant ou borgnetre percéMatériau:Plastique PACouleur:NoirTip:Compatible Central Connector B 0°, Slot 10 see 099B10171000 Compatible Central Connector B 90°, Slot 10 see 099B10171090 Compatible Central Butt Connector B 180° +/-45°, Slot 10 see 099B1017S01 Compatible Central Connector B 90° +/-45°, Slot 10 see 099B1017S02Pays de livraison:Monde entier
