Connecteur central pliable B 90° +/-45°

Informations sur le produit "Connecteur central pliable B 90° +/-45°"

Pays de livraison:
Monde entier

Description:

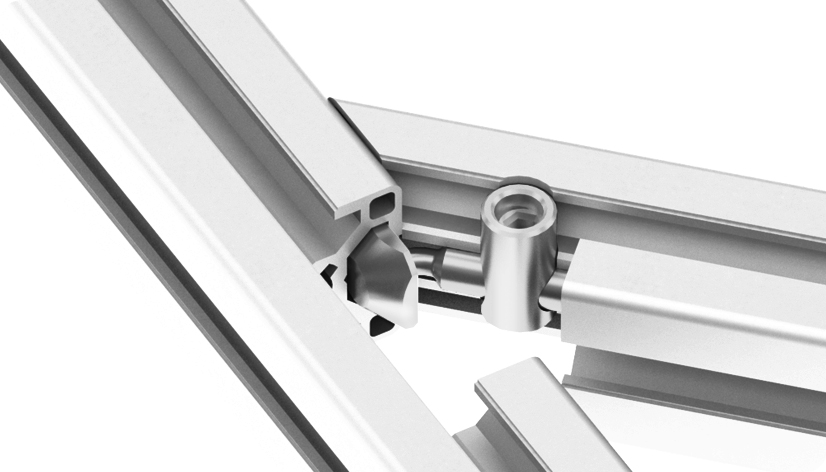

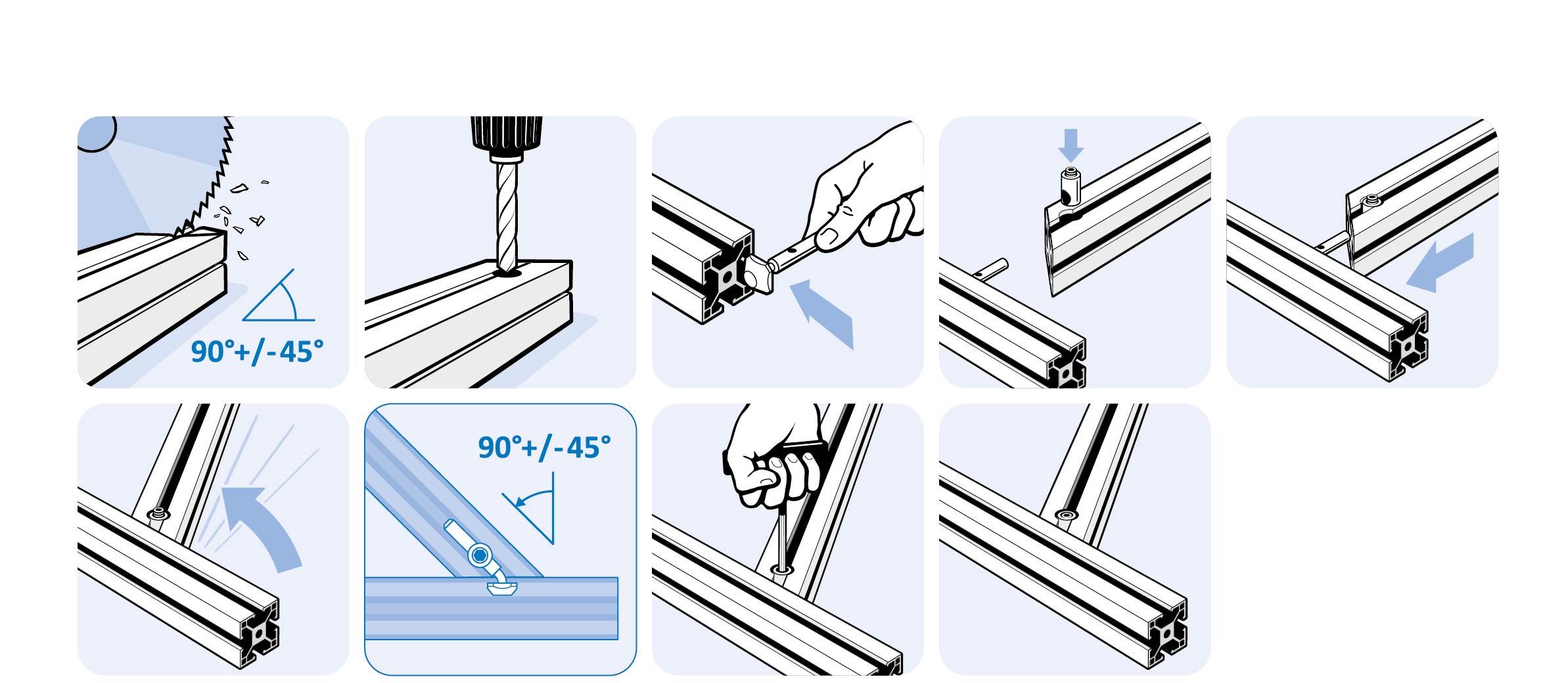

End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 45° to 135°

Material:
Tie-rod: Stainless steel
Bushes: Steel

Surface:
Tie-rod: Plain
Bushes: Zinc plated

Tip:
Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50

Zolltarifnummer:
73269098900
Conditionnement: 10 pièces
Modèle: Acier / acier inox
Poids (g): 27.0

Variantes

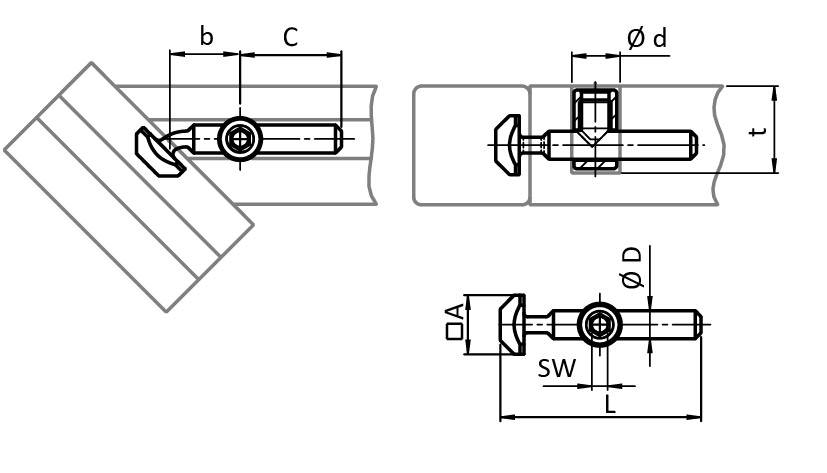

ID de produit d (mm) Profilé t (mm) b (mm) SW (mm) D (mm) Rainure N (mm) L (mm)
099B0811S02 Ø11 B 22.0 18.0 4 7.1 8 51.0
099B1017S02 Ø17 B 31.0 *(1) 34.0 *(2) 36.0 *(3) 22.5 6 9.8 10 75.0
