Connecteur rapide 90° B, Rainure 10 (Kit)
Réf. produit :
099J10M12
Informations sur le produit "Connecteur rapide 90° B, Rainure 10 (Kit)"
Pays de livraison:
Monde entier
Description:

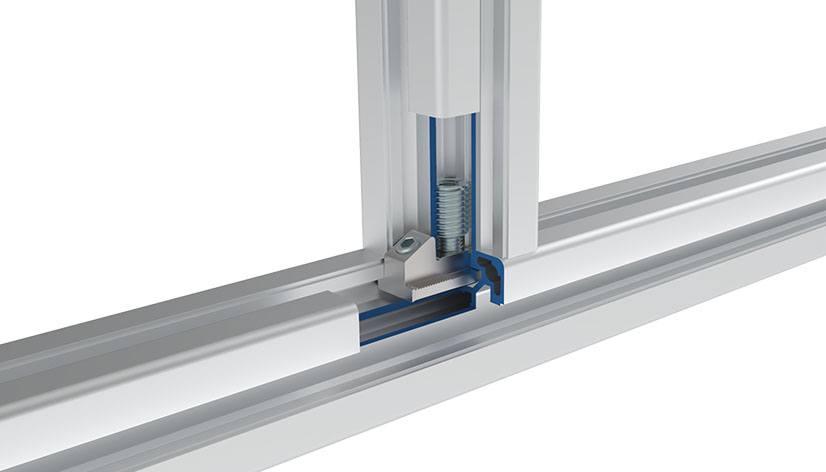

To connect two aluminum profiles at right angles
Matériau:
Acier
Set 1:

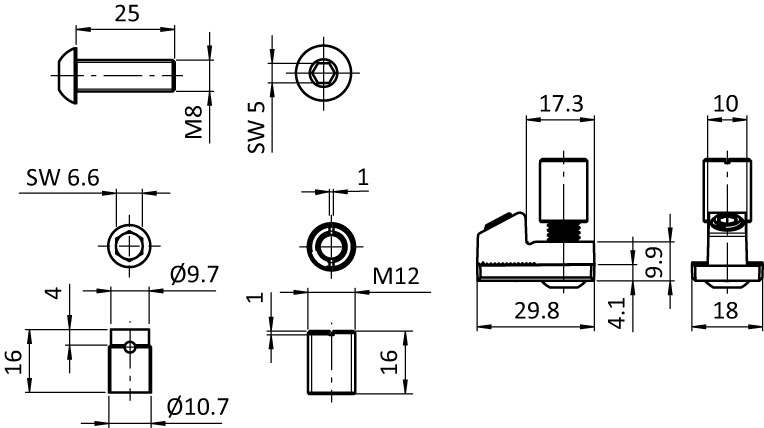

1 profile connector 90° B
1 threaded bush M12
1 screw M8 x 25
Set 2:
1 profile connector 90° B
1 cutting bush S12
1 screw M8 x 25
Etat de surface:
Zingué
Tip:

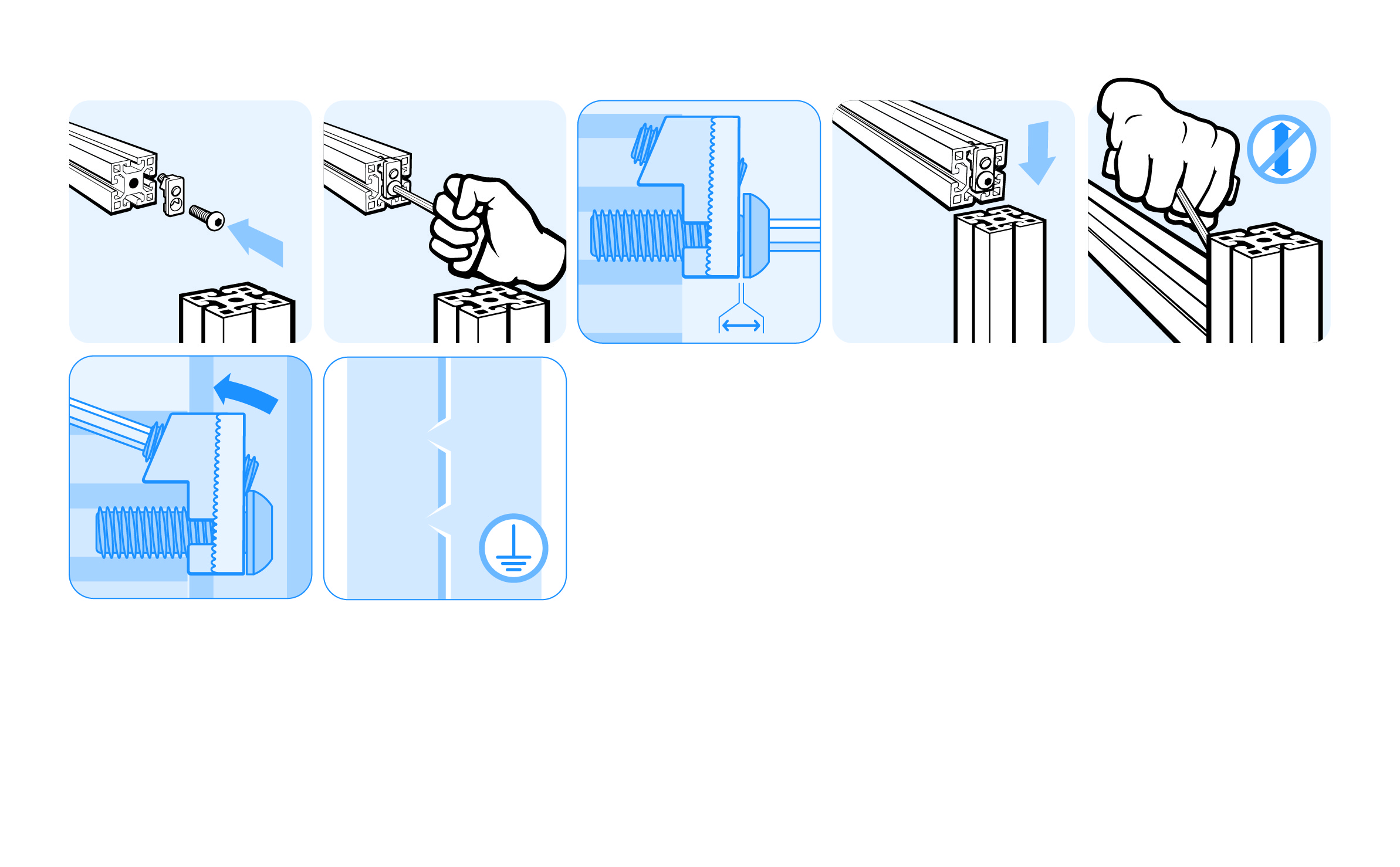

Assembly with threaded bush M12: Cut thread M12 in core hole Ø 10.2 mm, apply bush to screw and screw in together
Assembly with cutting bush S12: Turn cutting bush in core hole Ø 10.2 mm, fasten screw in bush
Monde entier
Description:
To connect two aluminum profiles at right angles
Matériau:
Acier
Set 1:
1 profile connector 90° B
1 threaded bush M12
1 screw M8 x 25
Set 2:
1 profile connector 90° B
1 cutting bush S12
1 screw M8 x 25
Etat de surface:
Zingué
Tip:
Assembly with threaded bush M12: Cut thread M12 in core hole Ø 10.2 mm, apply bush to screw and screw in together
Assembly with cutting bush S12: Turn cutting bush in core hole Ø 10.2 mm, fasten screw in bush
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Code ERP: | 138406 |
| Code douanier exportation: | 73259990 |
| Conditionnement: | 10 kits |
| Modèle: | Acier, R10 |
| Poids (g): | 49.7 |
| Zolltarifnummer: | 73259990900 |
