Connecteur rapide 90° B, Rainure 10 (Kit)

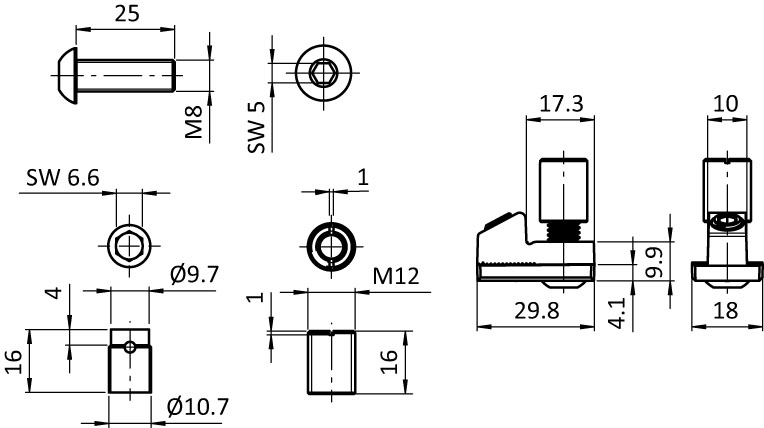

Connecteur rapide 90° B, Rainure 10 (Kit) – plan technique

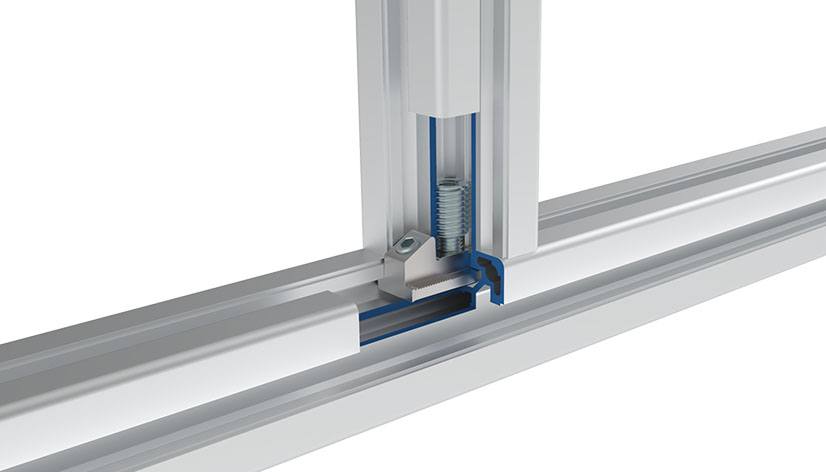

Connecteur rapide 90° B, Rainure 10 (Kit) – exemple d'application

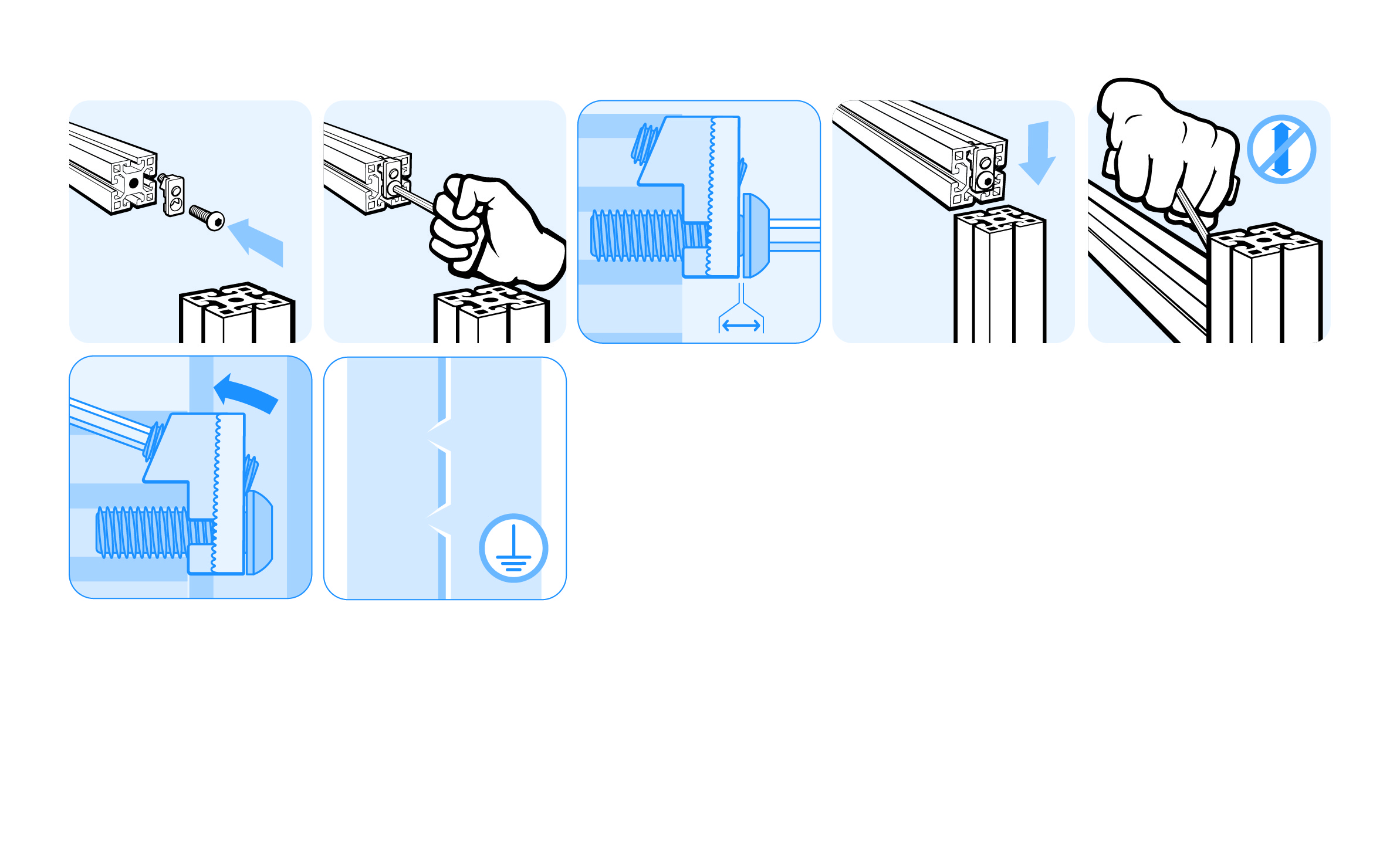

Connecteur rapide 90° B, Rainure 10 (Kit) – schéma de montage

0,00 €

Profilé

B

Rainure N (mm)

10

Kit

Kit 1

Kit 2

Réf. produit : 099J10S12

Conditionnement: 10 pièces

Description:
To connect two aluminum profiles at right angles

Matériau:
Acier

Etat de surface:
Zingué

Set 1:
1 profile connector 90° B
1 threaded bush M12
1 screw M8 x 25

Set 2:
1 profile connector 90° B
1 cutting bush S12
1 screw M8 x 25

Tip:
Assembly with threaded bush M12: Cut thread M12 in core hole Ø 10.2 mm, apply bush to screw and screw in together
Assembly with cutting bush S12: Turn cutting bush in core hole Ø 10.2 mm, fasten screw in bush

Pays de livraison:
Monde entier
