Cover Cap D28 / D30
Prix régulier :
0,00 €
Réf. produit :
099RV28CC02
Conditionnement:
100 pièces
Informations sur le produit "Cover Cap D28 / D30"
Couleur:
Noir, gris
Pays de livraison:
Monde entier
Description:

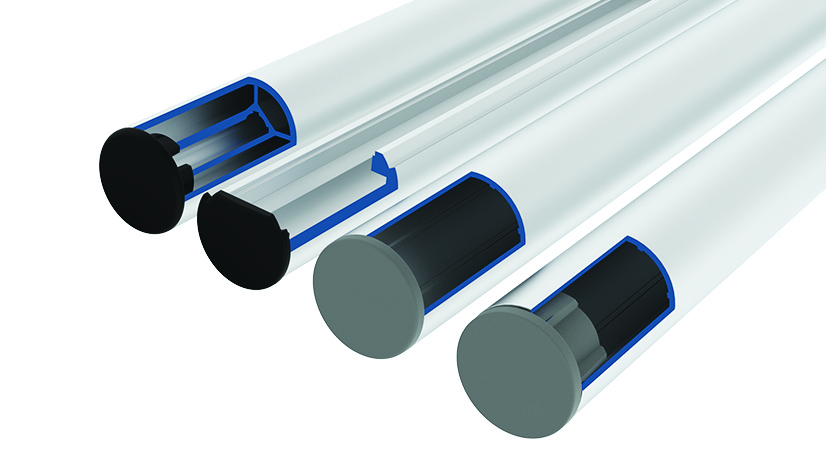

To cover the end of a tubular frame profile with Ø 28 mm or Ø 30 mm outer diameter
Matériau:
Plastique PA, renforcé fibre de verre
Options:
Autres tailles, autres couleurs sur demande
Noir, gris
Pays de livraison:
Monde entier
Description:
To cover the end of a tubular frame profile with Ø 28 mm or Ø 30 mm outer diameter
Matériau:
Plastique PA, renforcé fibre de verre
Options:
Autres tailles, autres couleurs sur demande
| Conditionnement: | 100 pièces |
|---|---|
| Modèle: | Pour profilés tubulaires de structure |
| Poids (g): | 2.5 |
| Code ERP: | 134628 |
Variantes

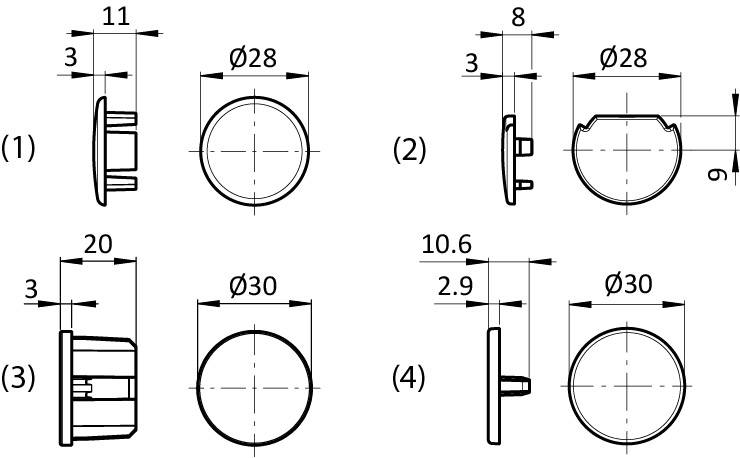

| Réf. produit | Profilé | Fig. | ESD | Couleur | Rainure N (mm) | ØD (mm) | CAO |
|---|---|---|---|---|---|---|---|
| B | ① | ESD décharge électrostatique | Noir | - | 28 |
|
|
| B | ② | ESD décharge électrostatique | Noir | 10 | 28 |
|
|
| I | ③ | - | Gris ≈ RAL 7042 | - | 30 |
|
|
| I | ③ | ESD décharge électrostatique | Noir | - | 30 |
|
|
| I | ④ | - | Gris ≈ RAL 7042 | - | 30 |
|
Téléchargements CAD
Portraits de produits
Connecteurs pour aluminium profilés tube rond
After only a short period of time the aluminum round tube systems D28 and D30 has proved successful for the construction of custom structures for workplaces, material shuttles, shelves, and flow racks. Planning and assembly are easy, due to the need for only a few standard parts and the built-in implantation of the Poka-Yoke principle.
Classification
- ECLASS 6.0
- 23079202
- ECLASS 7.0
- 23079202
- ECLASS 8.0
- 23079202
- ECLASS 9.0
- 23079202
- ECLASS 10.0
- 23079202
- ECLASS 11.0
- 23111302
- ECLASS 12.0
- 23111302
- ECLASS 13.0
- 23111302
- Zolltarifnummer
- 39269097900
- Code douanier exportation
- 39269097
Tags
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Modular Dimension | Modular Dimension D28, Modular Dimension D30 |
| Product Feature | ESD |
| Profile Form | Round Tubular Profiles, T-slot Profiles |
