FIFO Monorail Station 40 (Kit)
0,00 €
Réf. produit :
02082PO.2400S01
Conditionnement:
1 kit
Informations sur le produit "FIFO Monorail Station 40 (Kit)"
Couleur:
Embouts d'entrée : noir
Pays de livraison:
Monde entier
Description:

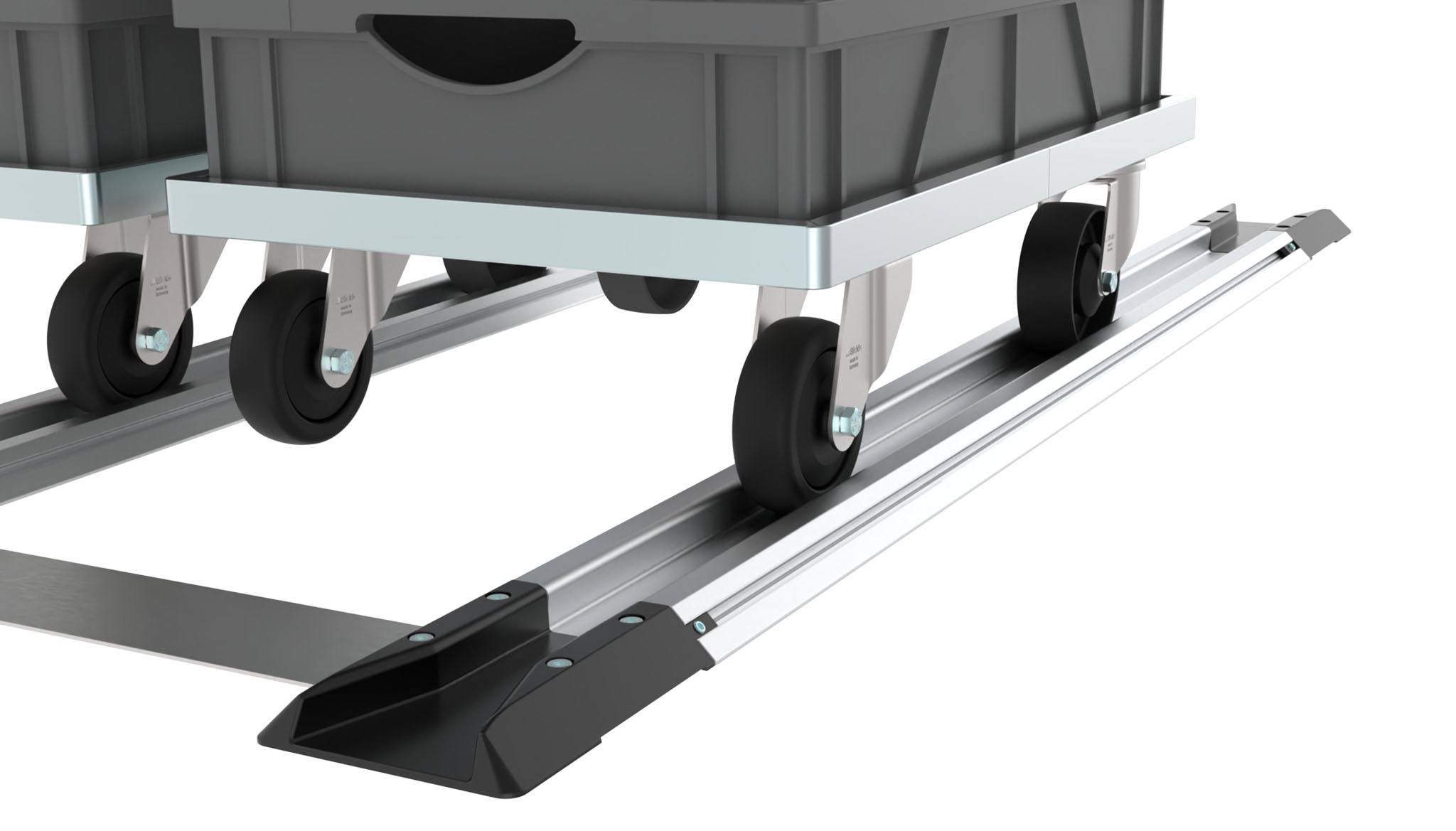

Fast mounting FIFO station for guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm;
To extend guiding rails, connect them face to face with connecting strip in the slots;
To widen, connect further parallel guided guiding rails and end caps with connecting elements
Posts can be mounted in the slot from above;
To securely fix to the floor, use the optional mounting set;
Mounting of a brush brake or an end stop with 2 optional mounting sets as a support base
Matériau:
Rails : aluminium
Embouts d’entrée : fonte d’aluminium
Vis à empreinte hexagonale : acier
Éléments de raccordement : acier inoxydable
Vis : acier

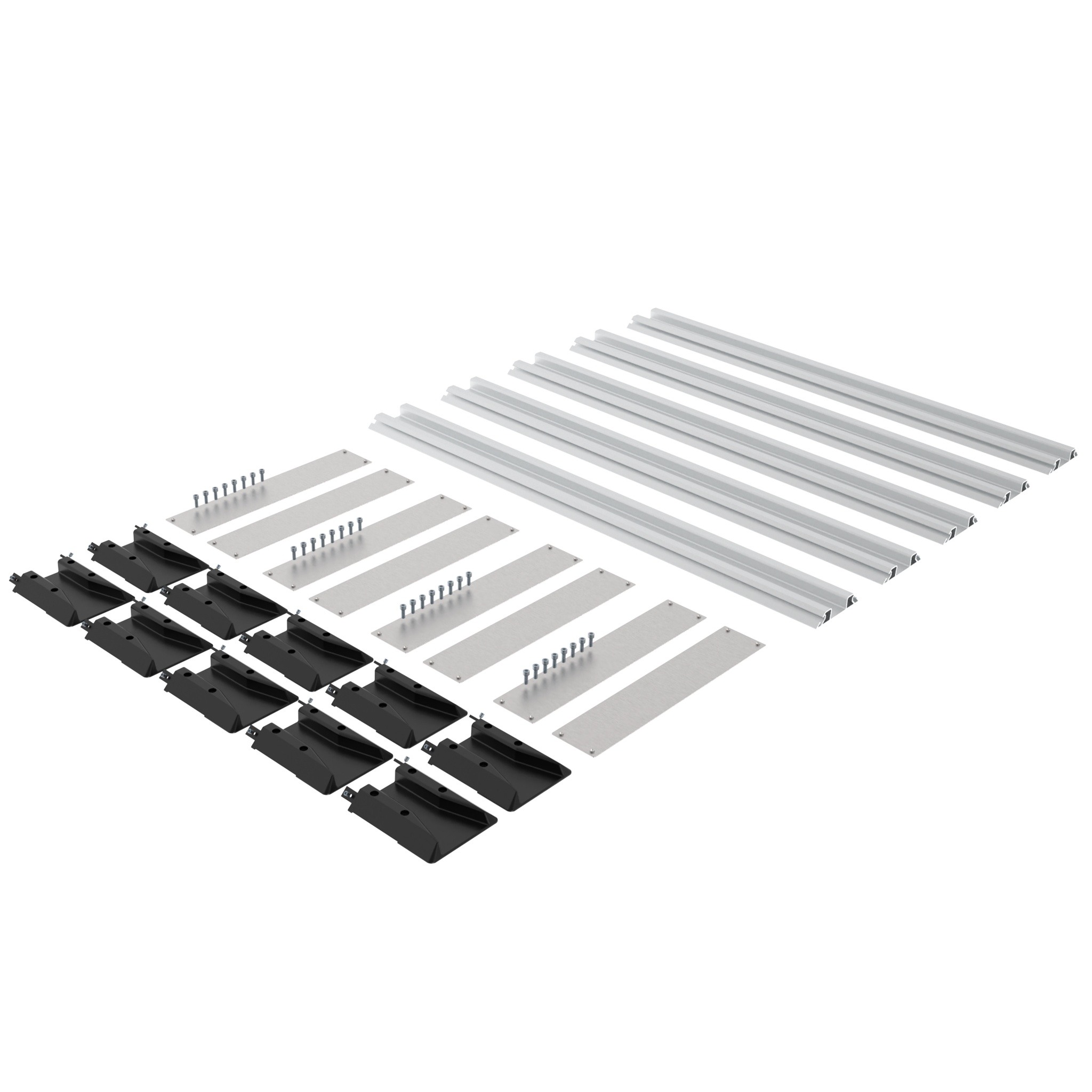

Kit:
5 rails monorails FIFO 40,
10 embouts d’entrée,
20 vis à empreinte hexagonale DIN EN ISO 4027 (DIN 914) – M6 x 8,
8 éléments de raccordement,
32 vis DIN EN ISO 10642 (DIN 7991) - M6 x 16
Etat de surface:
Rails : anodisés
Embouts d’entrée : revêtement par poudre
Vis à empreinte hexagonale : zingué
Vis : zingué
Tip:
Compatible Connecting Strip see 096010S61
Compatible Monorail Angle Connector for Post see 093WS30145S01
Compatible Mounting Set for Posts Support Struts see 093WS30145S02
Compatible Cover Profiles see 092050;
Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB
Embouts d'entrée : noir
Pays de livraison:
Monde entier
Description:
Fast mounting FIFO station for guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm;
To extend guiding rails, connect them face to face with connecting strip in the slots;
To widen, connect further parallel guided guiding rails and end caps with connecting elements
Posts can be mounted in the slot from above;
To securely fix to the floor, use the optional mounting set;
Mounting of a brush brake or an end stop with 2 optional mounting sets as a support base
Matériau:
Rails : aluminium
Embouts d’entrée : fonte d’aluminium
Vis à empreinte hexagonale : acier
Éléments de raccordement : acier inoxydable
Vis : acier
Kit:
5 rails monorails FIFO 40,
10 embouts d’entrée,
20 vis à empreinte hexagonale DIN EN ISO 4027 (DIN 914) – M6 x 8,
8 éléments de raccordement,
32 vis DIN EN ISO 10642 (DIN 7991) - M6 x 16
Etat de surface:
Rails : anodisés
Embouts d’entrée : revêtement par poudre
Vis à empreinte hexagonale : zingué
Vis : zingué
Tip:
Compatible Connecting Strip see 096010S61
Compatible Monorail Angle Connector for Post see 093WS30145S01
Compatible Mounting Set for Posts Support Struts see 093WS30145S02
Compatible Cover Profiles see 092050;
Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB
| Modèle: | Aluminum |
|---|---|
| Conditionnement: | 1 kit |
| Code douanier exportation: | 76169990 |
| Poids (g): | 24260.0 |
| (ECLASS 6.0): | 21070390 |
| (ECLASS 7.0): | 21079290 |
| (ECLASS 8.0): | 21079290 |
| (ECLASS 9.0): | 21079290 |
| (ECLASS 10.0): | 21079290 |
| (ECLASS 11.0): | 21070490 |
| (ECLASS 12.0): | 21070490 |
| (ECLASS 13.0): | 21070490 |
| Code ERP: | 170735 |
| Zolltarifnummer: | 76169990990 |
