Roulettes de levage hydraulique (Kit)
Prix régulier :
0,00 €
Réf. produit :
06001HR2000
Conditionnement:
1 pièce
Description:
Système Lift castor system pour une installation rapide et flexible de plans ou tables de travail ;
rapport de transmission : 10 : 1
Système Lift castor system pour une installation rapide et flexible de plans ou tables de travail ;
rapport de transmission : 10 : 1
Matériau:
Boîtier : fonderie d'aluminium avec palier PTFE
Galet : plastique PA avec rouement à bille
Galet boîtier : acier zingué

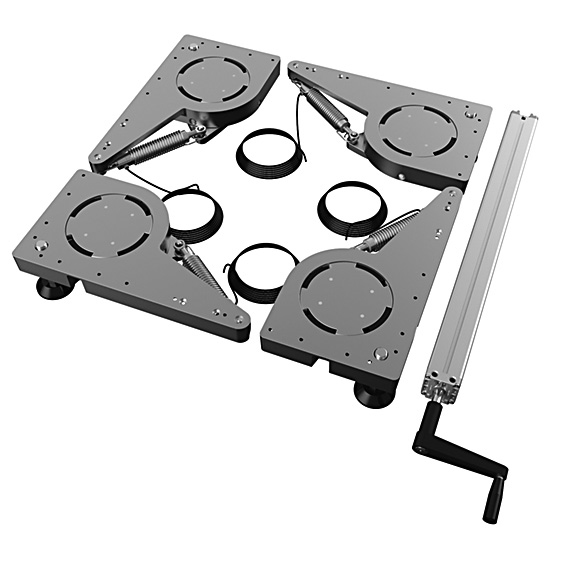

Kit:
4 unités monté-baisse de pied
1 pompe hydraulique
4 tuyau hydraulique de 5 m, pre-remplis
Information:
*Position centrée
Options:
Autres kits sur demande
Pays de livraison:
Monde entier
Boîtier : fonderie d'aluminium avec palier PTFE
Galet : plastique PA avec rouement à bille
Galet boîtier : acier zingué
Kit:
4 unités monté-baisse de pied
1 pompe hydraulique
4 tuyau hydraulique de 5 m, pre-remplis
Information:
*Position centrée
Options:
Autres kits sur demande
Pays de livraison:
Monde entier
| Conditionnement: | 1 pièce |
|---|---|
| Modèle: | Fonderie d'aluminium |
| Poids (kg): | 30.8 |
| Code ERP: | 120910 |
Variantes
| Réf. produit | Fmax (N) | Profilé | Charge max. par unité de levage (kg) | CAO |
|---|---|---|---|---|
| *19600 | I / B | 500 |
|
Portraits de produits
Roulette escamotable à pédale

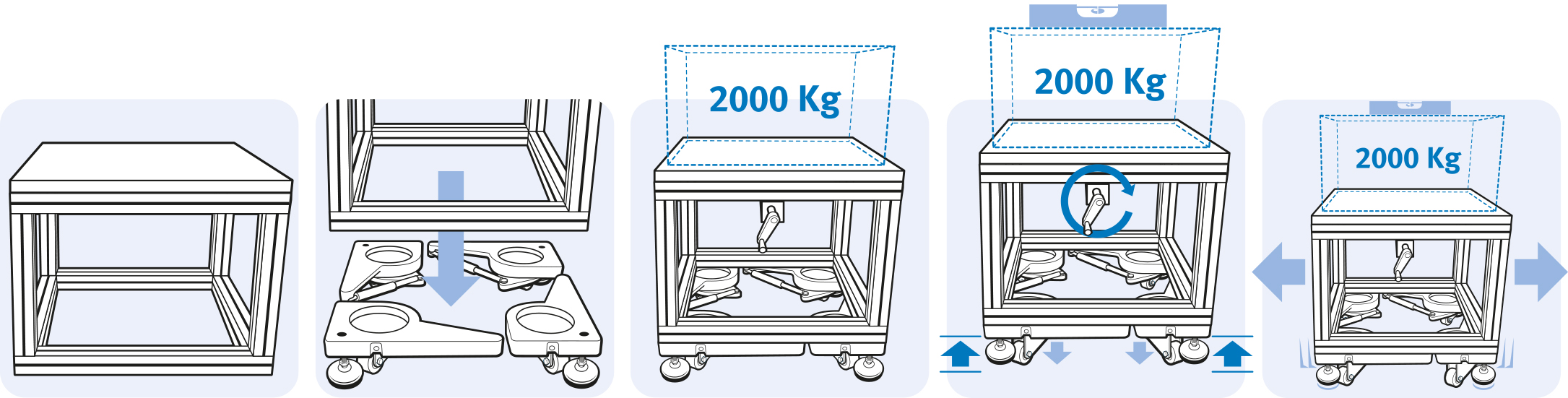

Flexibility is one of the important features of modern manufacturing facilities. Setting up and leveling a machine or installation into a relatively permanent position for years to come is not necessarily common practice any longer. It is with this scenario in mind that FATH Components has developed its Lift Caster unit as a “Plug-and-Work” solution which has been conceptualized as a mounting for machinery and facilities with a maximum lifting load of 500 kg per unit.
Classification
- ECLASS 6.0
- 23370290
- ECLASS 7.0
- 23370290
- ECLASS 8.0
- 23370290
- ECLASS 9.0
- 23370290
- ECLASS 10.0
- 23370290
- ECLASS 11.0
- 23370290
- ECLASS 12.0
- 23370290
- ECLASS 13.0
- 23370290
- Zolltarifnummer
- 84254200000
- Code douanier exportation
- 84254200
Documents
Manuel d'utilisation
DE
EN
FR
ES
Autres langues
Déclaration de conformité CE
DE
EN
FR
ES
Autres langues
Tags
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Profile Form | T-slot Profiles |
| Application Area | Machinery & Plant Engineering |
