Vis Aluform RIBE®

Informations sur le produit "Vis Aluform RIBE®"

Pays de livraison:
Monde entier

Description:

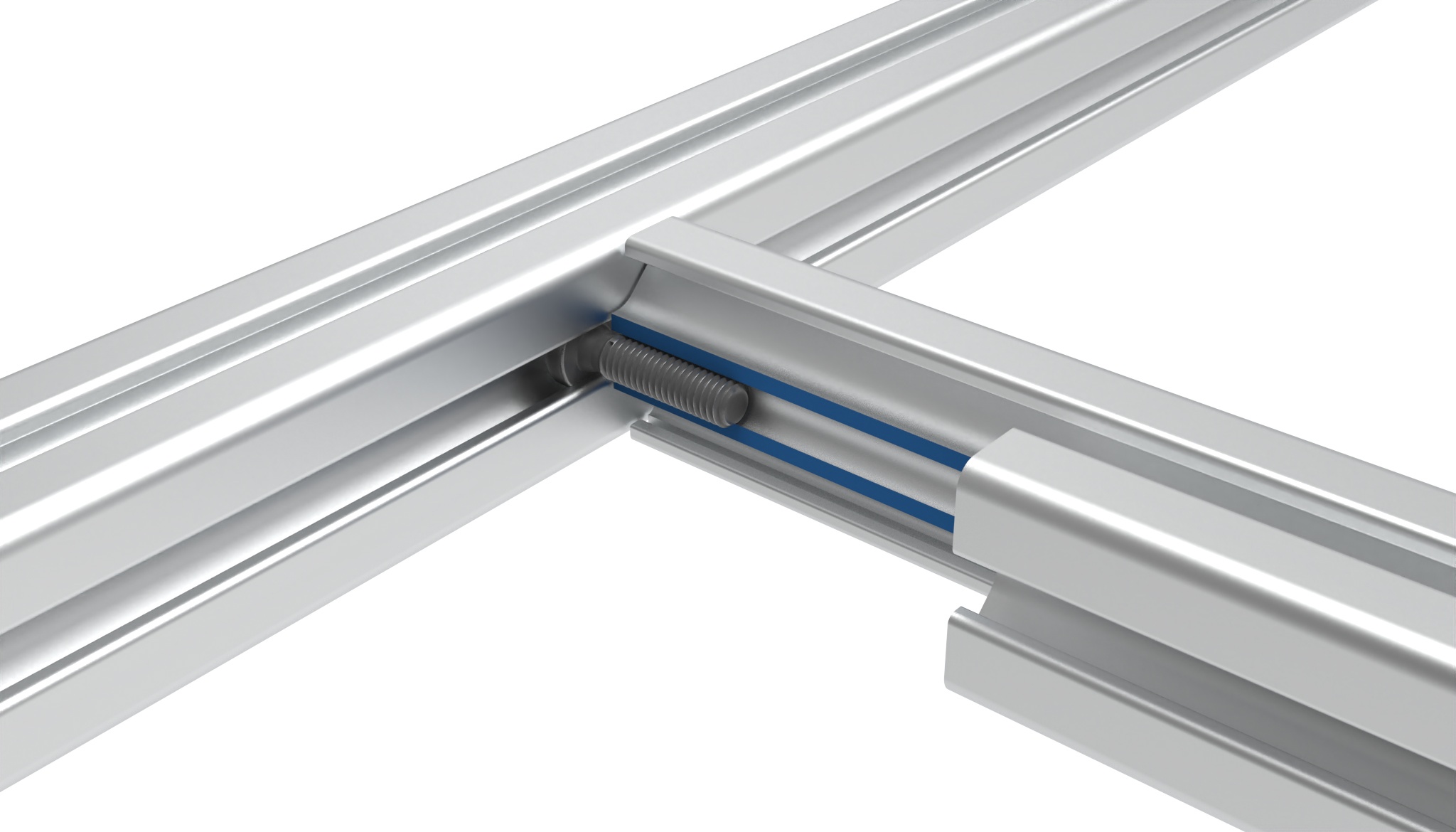

For the material-matched connection of aluminum componentsand for electrical contact screw connections;
Corrosion-resistant, easy to recycle, approx. 2/3 weight saving compared to similar steel screws;
Reduced electrical contact resistance

Matériau:
Aluminum

Etat de surface:
Avec film sec de lubrification

Modèle:	Avec Torx
Conditionnement:	100 Stück
Code douanier exportation:	76161000
Poids (g):	0.9
Code ERP:	170463
Zolltarifnummer:	76161000990

Variantes

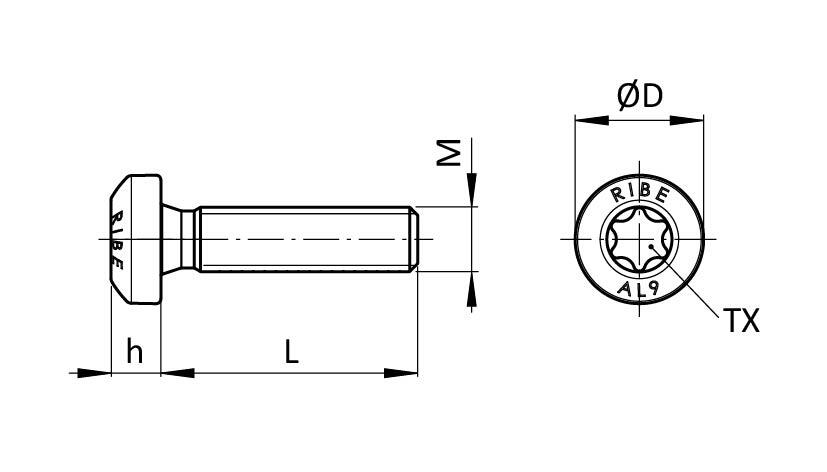

Réf. produit	ØD (mm)	h (mm)	Taille M x L (mm)	TX
097AS04016	8.0	3.1	M4 x 16	T20
097AS04020	8.0	3.1	M4 x 20	T20
097AS04025	8.0	3.1	M4 x 25	T20
097AS04030	8.0	3.1	M4 x 30	T20
097AS05020	10.0	3.7	M5 x 20	T25
097AS05025	10.0	3.7	M5 x 25	T25
097AS05030	10.0	3.7	M5 x 30	T25
097AS05035	10.0	3.7	M5 x 35	T25
097AS05040	10.0	3.7	M5 x 40	T25
097AS06020	12.0	4.6	M6 x 20	T30
097AS06025	12.0	4.6	M6 x 25	T30
097AS06030	12.0	4.6	M6 x 30	T30
097AS06035	12.0	4.6	M6 x 35	T30
097AS06040	12.0	4.6	M6 x 40	T30
097AS08020	16.0	6.0	M8 x 20	T45
097AS08025	16.0	6.0	M8 x 25	T45
097AS08030	16.0	6.0	M8 x 30	T45
097AS08035	16.0	6.0	M8 x 35	T45
097AS08040	16.0	6.0	M8 x 40	T45
097AS08045	16.0	6.0	M8 x 45	T45
097AS10020	20.0	7.5	M10 x 20	T50
097AS10030	20.0	7.5	M10 x 30	T50
097AS10040	20.0	7.5	M10 x 40	T50
097AS10050	20.0	7.5	M10 x 50	T50
097AS10060	20.0	7.5	M10 x 60	T50
