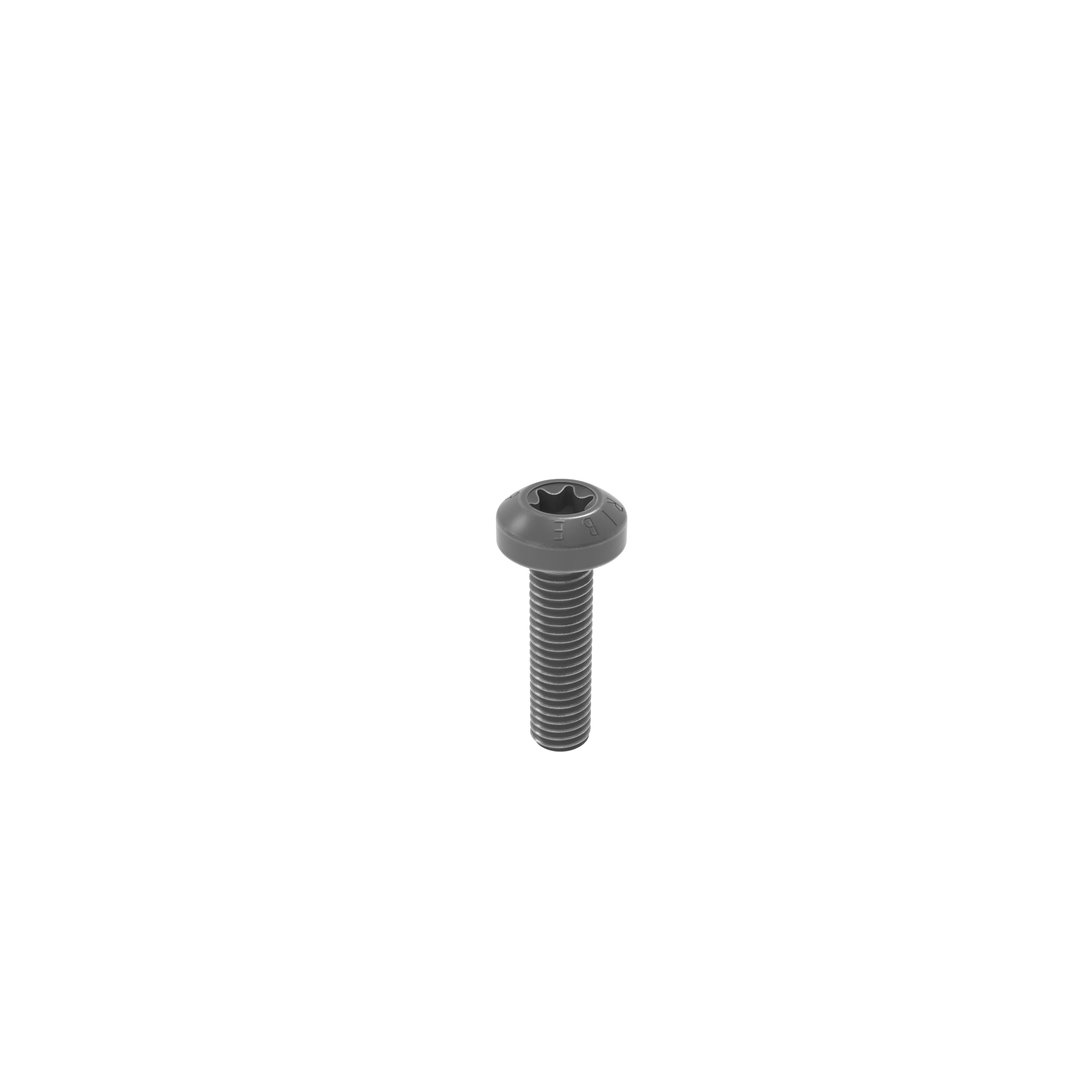

Vis Aluform RIBE®

Informations sur le produit "Vis Aluform RIBE®"

Pays de livraison:
Monde entier

Description:
For the material-matched connection of aluminum componentsand for electrical contact screw connections;
Corrosion-resistant, easy to recycle, approx. 2/3 weight saving compared to similar steel screws;
Reduced electrical contact resistance

Matériau:
Aluminum

Etat de surface:
Avec film sec de lubrification

Code PA:	170502
Code douanier exportation:	76161000
Conditionnement:	100 pièces
Modèle:	Avec Torx
Poids (g):	6.5
Zolltarifnummer:	76161000990

Variantes

ID de produit	h (mm)	Taille M x L (mm)	ØD (mm)	TX
097AS04016	3.1	M4 x 16	8.0	T20
097AS04020	3.1	M4 x 20	8.0	T20
097AS04025	3.1	M4 x 25	8.0	T20
097AS04030	3.1	M4 x 30	8.0	T20
097AS05020	3.7	M5 x 20	10.0	T25
097AS05025	3.7	M5 x 25	10.0	T25
097AS05030	3.7	M5 x 30	10.0	T25
097AS05035	3.7	M5 x 35	10.0	T25
097AS05040	3.7	M5 x 40	10.0	T25
097AS06020	4.6	M6 x 20	12.0	T30
097AS06025	4.6	M6 x 25	12.0	T30
097AS06030	4.6	M6 x 30	12.0	T30
097AS06035	4.6	M6 x 35	12.0	T30
097AS06040	4.6	M6 x 40	12.0	T30
097AS08020	6.0	M8 x 20	16.0	T45
097AS08025	6.0	M8 x 25	16.0	T45
097AS08030	6.0	M8 x 30	16.0	T45
097AS08035	6.0	M8 x 35	16.0	T45
097AS08040	6.0	M8 x 40	16.0	T45
097AS08045	6.0	M8 x 45	16.0	T45
097AS10020	7.5	M10 x 20	20.0	T50
097AS10030	7.5	M10 x 30	20.0	T50
097AS10040	7.5	M10 x 40	20.0	T50
097AS10050	7.5	M10 x 50	20.0	T50
097AS10060	7.5	M10 x 60	20.0	T50
