Flexible and lean: FATH self-adhesive Floor Marking Shapes and Floor Windows

Floor Marking Shapes and Floor Windows for quick and permanent labeling

floor marking shapes and floor windows

  • Outstanding adhesive strength

  • Forklift-resistant

  • Suitable for almost all industrial floors and removable without leaving residue

  • Pre-punched shapes in L/T/I/foot shape

  • Windows for DIN A4 (8.3" x 11.7"), DIN A5 (5.8" x 8.3"), 1/3 DIN A4 (8.3" x 3.9") and 1/2 DIN A4 (11.7" x 4.1") documents

  • Scanner readable

  • Very sturdy and stable: Easily adhered to the industrial floor

  •  Available in a variety of colors

Would you like to learn more about Floor Marking Shapes and Floor Windows?


The technical data sheet is available for download here.

Get to know now:

The technical data sheet is available for download here:

Get all the technical data for FATH Floor Marking Shapes and Floor Windows.

Enter your personal details in the form and start the download of your PDF.





FATH Floor Marking Shapes: more organized, more efficient

The practical FATH floor marking shapes come pre-punched.
Easy to attach, provide secure and effective storage space labeling in production and storage locations. After the labels are attached, the floor shapes can be walked and driven on immediately. Areas for pallets, shelving, containers, carts etc. can be marked accurately – creating a strong visual effect. Generally the L shape is used for side area boundaries and the T shape is used for demarcation mark between two storage positions. Floor labeling allows you to create a clear structure of surfaces and areas, reduce the amount of floor space needed and assists staff in working efficiently.


FATH Floor Windows: forklift-resistant, scratch-resistant and scanner readable

The special feature of the FATH floor windows: The coloured frame is printed on the inside of the floor window, allowing the signal color to be fully enclosed providing permanent protection against wear and scratching. The color also remains visible after prolonged use – even heavy traffic areas driven over by forklift trucks, cannot wear the floor windows.
Documents of different sizes up to DIN A4 (8.3" x 11.7") are inserted behind the transparent plastic window and are scanner readable through the viewing window. The 40 mm frame width ensures immediate recognition, even from a distance. Allowing the worker to easily view what kind of material is available and that it is in the right position.


Fully flexible with new production requirements

The self-adhesive floor marking shapes and floor windows can be removed from the floor without leaving any residue, for production changeovers, reorganizations or plant expansions. The floor remains intact after removing the adhesive tapes, because no chemicals or acidic substances are required. Leased buildings, warehouses and spaces can also be temporarily labeled without consequential damages. That is lean!


Immediate visualization – without the disadvantages of paint and ink

The self-adhesive, durable FATH floor marking shapes and floor windows are easy to attach in the desired position, can be driven on immediately and are easy to clean. They are suitable for almost all industrial floors and substrates such as stone, concrete or metal.
In contrast to markings using paint or ink, this adhesive solution avoids long drying times and unpleasant odors. Thanks to the extremely durable surface suitable for industrial use, the floor shapes withstand heavy stress from forklift trucks, even when turning. Ideal for labeling pallet storage positions.

How do you like our FATH Floor Marking Shapes and Floor Windows?

Would you like to see the material first and verify whether it is suitable for your requirements? That is a great idea!

With a sample you can quickly decide if the product is the right one for you.

Ask for your free sample here.

Get to know now:

Enter your personal details in the form and your sample requests.

floor marking shapes and floor windows

FATH tip:

When the floor marking shapes are affixed with a spacing of approx. 30 mm to the product areas, they are well protected against wear.

Make sure you mark correctly: A quick color advisor

The FATH floor marking shapes enable an efficient color coding system to be set up for specific areas in production and warehousing, such as: storage positions, parking spaces, storage shelves etc. When used correctly, the selected colors allow the workers to intuitively recognize the importance, for example:

Yellow: Goods for processing

Red: Defective goods and defective raw material

Blue: Semi-finished product and material for further processing

Green: Finished products


The self-adhesive floor marking shapes and floor windows are available in the following versions:

FATH Floor Marking Shapes

T shape
L shape
I shape
Foot print

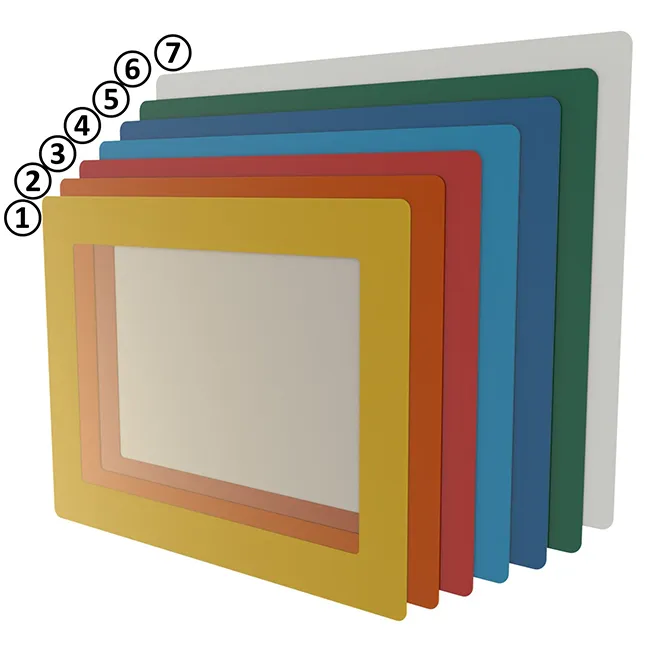

FATH Floor Windows

DIN A4 (8.3" x 11.7")
DIN A5 (5.8" x 8.3")
1/2 DIN A4 landscape (11.7" x 4.1")
1/3 DIN A4 portrait (8.3" x 3.9")


Do you want to try out the FATH Floor Marking Shapes and FATH Floor Windows or order right away?

Then contact us here!

So you’re interested in the FATH Floor Marking Shapes and FATH Floor Windows?

Choose whether you want a sample, a quote or personal advice.

Enter your personal details in the form and specify your desired version and number of items.

LEAN 4.0: Effective visualization with FATH floor marking shapes and floor windows

The FATH floor marking shapes and floor windows are part of the LEAN product line for visualization – products. Allowing you to design your production and logistics processes to be more efficient and leaner. Thanks to excellent adhesion and dimensional stability, safety and production related labeling can be attached to industrial floors, with flexibly and long-lasting effect.

Your questions, our answers:

We have collected and answered the most frequently asked questions about our floor marking shapes and floor windows for you. Perhaps your question is already included.

If not, please write to us.

What distance should be maintained when attaching L-shaped and T-shaped parking space markings?

To create a long-lasting parking space marking, a distance of 20 to 30 centimeters should be maintained when using the L-shape or the T-shape. This protects the floor markings from being damaged by being pushed over e.g. by steel containers.

Can the floor marking be used outdoors?

FATH floor markings are designed for indoor use and achieve the best durability there.

Is the color signal yellow suitable for marking restricted areas?

If possible, restricted areas should be marked in a separate color so that there is a clear distinction between walkways and driveways. Signal yellow has a high visual impact and is immediately noticeable visually.

Does the floor marking for separating the walkway have to be yellow?

According to the ordinance, only danger zones must display yellow-black stripes for permanent and red-white stripes for temporary obstacles. Other safe walkways do not have to be marked in yellow.

Are floor signs suitable for marking storage locations?

Yes. Thanks to their special scanner suitability, FATH floor windows are particularly suitable for marking storage locations and for marking parking spaces.

Is the floor marking wear-resistant?

The materials used make the FATH floor marking particularly wear-resistant and hard-wearing. If the floor marking is damaged due to being continually pushed over, e.g. with lattice boxes, the defective area can be removed and only this point needs to be replaced. In addition to the low wear, this also has a positive effect on time and costs.

Does a parking space marker increase safety?

Different colors can be used to mark different areas, such as goods receipt / QA restricted areas, etc. In particular, if the parking space marking is combined with labeling windows (floor windows), incorrect assignments and search times can be significantly reduced.

In what sales unit is the floor marking delivered?

The floor marking rolls from FATH are supplied as 50 meter rolls and are easy to use. Floor marking shapes such as L-pieces and T-pieces are sold in units of 40, since four pieces are often required for a parking space marking.

Tips & tricks around the topic of Floor Markings

Floor markings for storage and production facilities

Floor markings for storage and production facilities: useful tips!

You see it every day: Floor markings in all areas of production, logistics, hallways or road traffic. Mostly we do not pay much attention to them, but you as the person responsible know that floor markings are an important part of public and operational organization. They demarcate areas, protect employees and goods from danger and visualize escape routes and emergency routes.

Find out more...

More product recommendations:

FATH Floor Marking Tapes
Floor Marking Tapes

Self-adhesive floor marking tapes: forklift-resistant and affixes instantly

The self-adhesive, sturdy FATH floor marking tapes are custom-made and can easily be adhered to industrial floors. Vehicles can drive over them immediately and they are easy to clean.

Further Information...

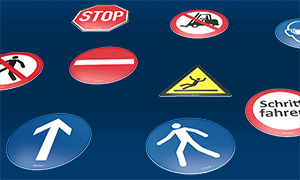

FATH Floor Signs for rapid, reliable labeling
FATH Floor Signs

Full flexibility for reorganization

These self-adhesive floor signs can be detached from the floor without leaving residue if reorganization or facility extensions are planned. The floor remains intact after signs are removed since no chemicals or acid-based substances are required to remove them.

Further Information...

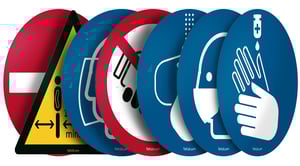

FATH Covid-19 Health and Safety Stickers
