3-way Connection Angle B 20
Part #:
093WE202N06
Product information "3-way Connection Angle B 20"
Delivery Countries:
Worldwide
Description:

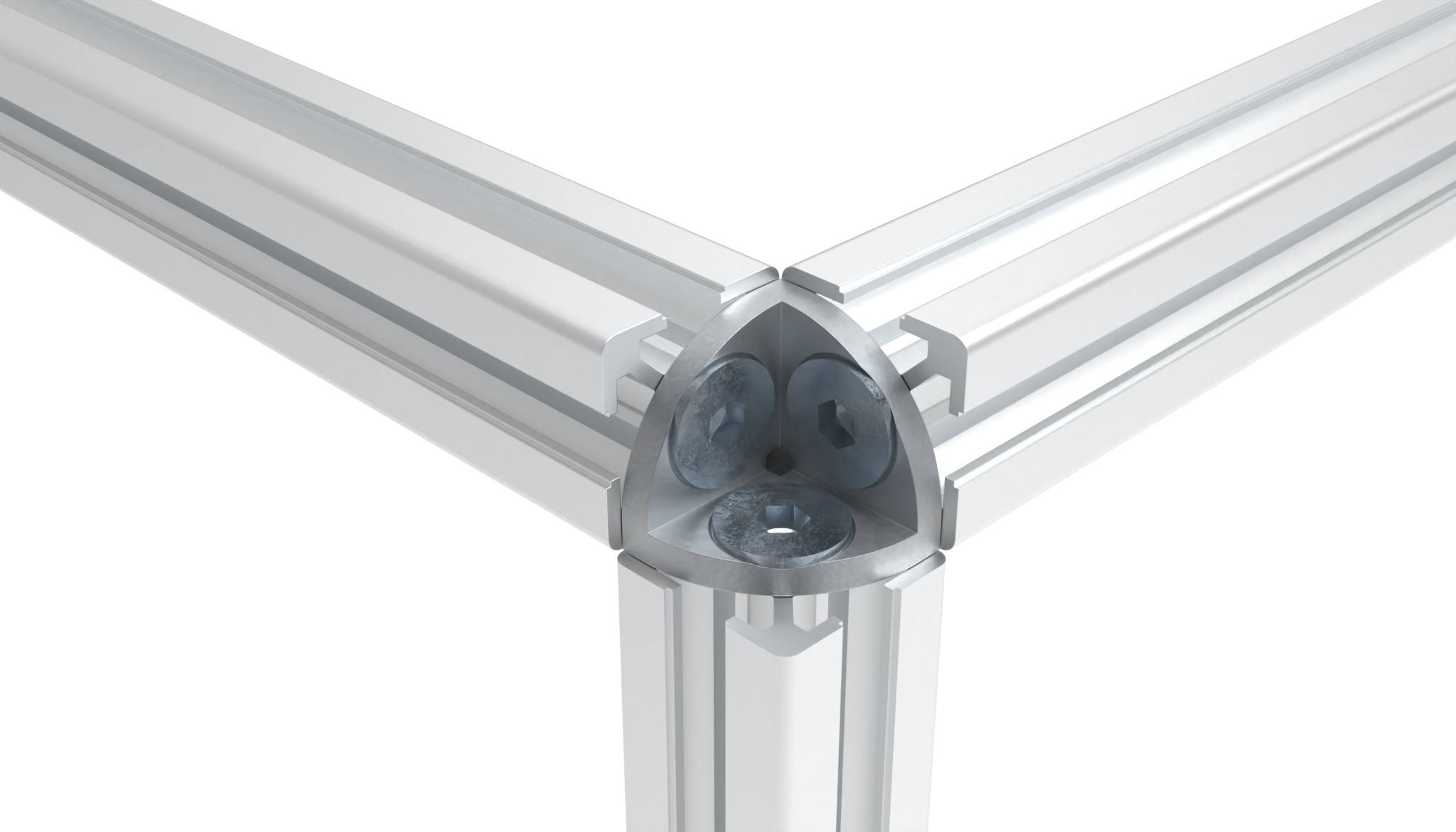

To connect up to three aluminum profiles at right angles
Material:
Zinc die-cast
Surface:
Plain
Worldwide
Description:
To connect up to three aluminum profiles at right angles
Material:
Zinc die-cast
Surface:
Plain
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 79070000 |
| ERP Number: | 133194 |

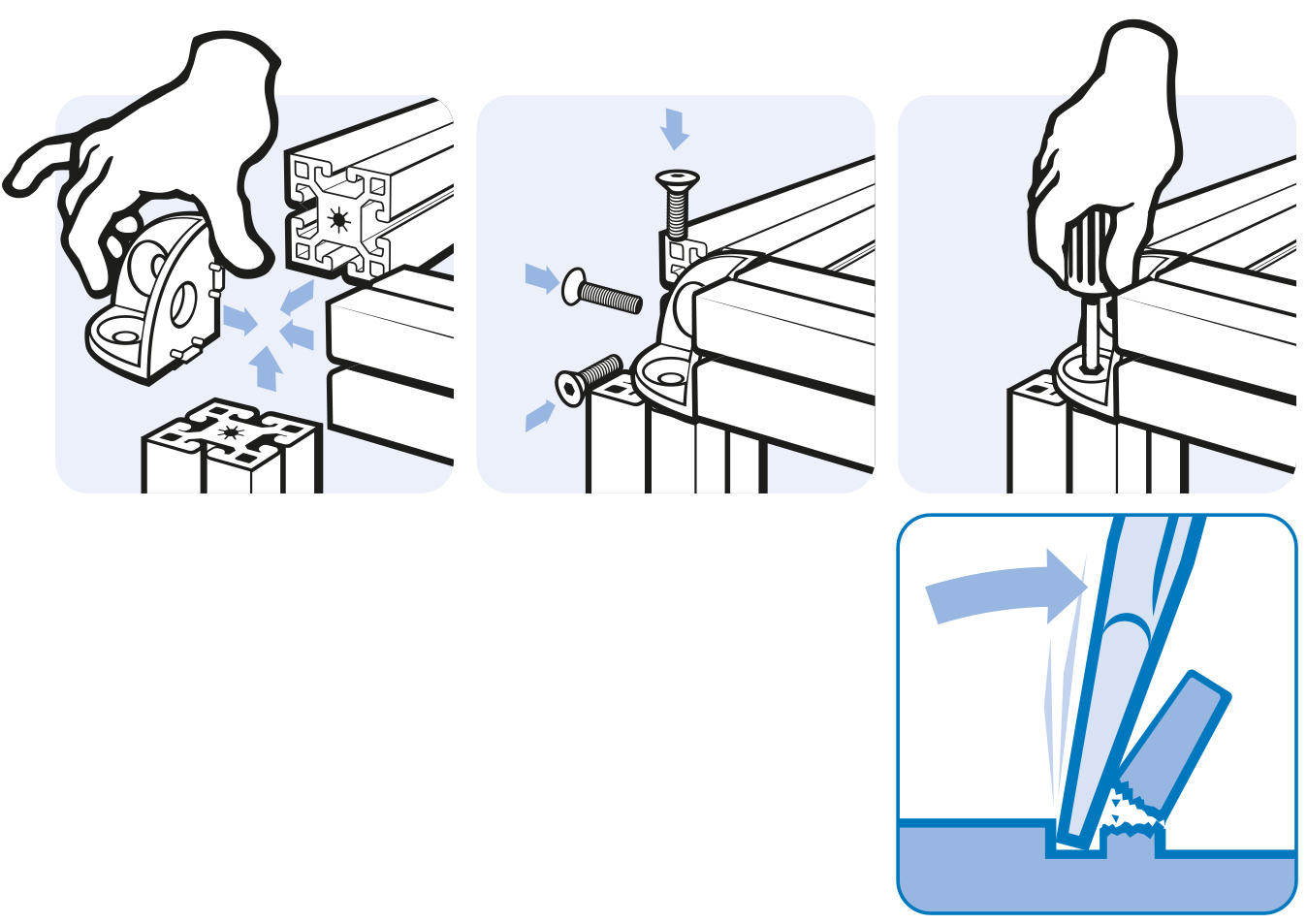

| Fastening: | Countersunk screws M6 and S6 |

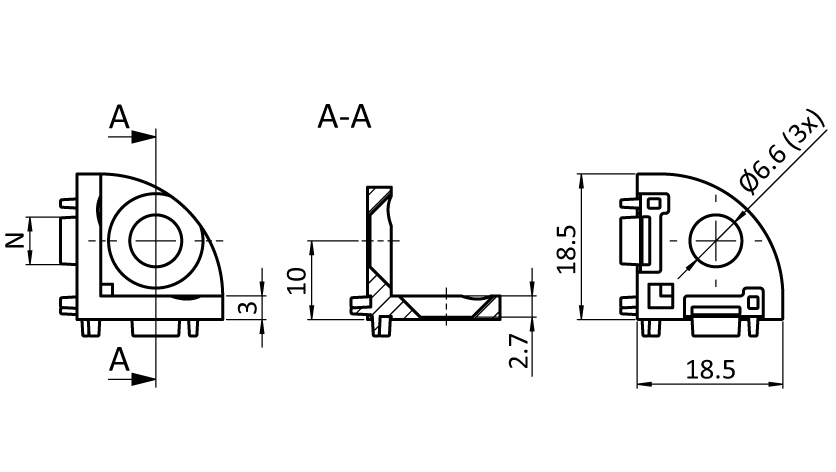

| Model: | Zinc die-cast, for profile 20 |
| Pack Quantity: | 50 pieces |
| Weight (g): | 10.0 |
| Zolltarifnummer: | 79070000900 |
