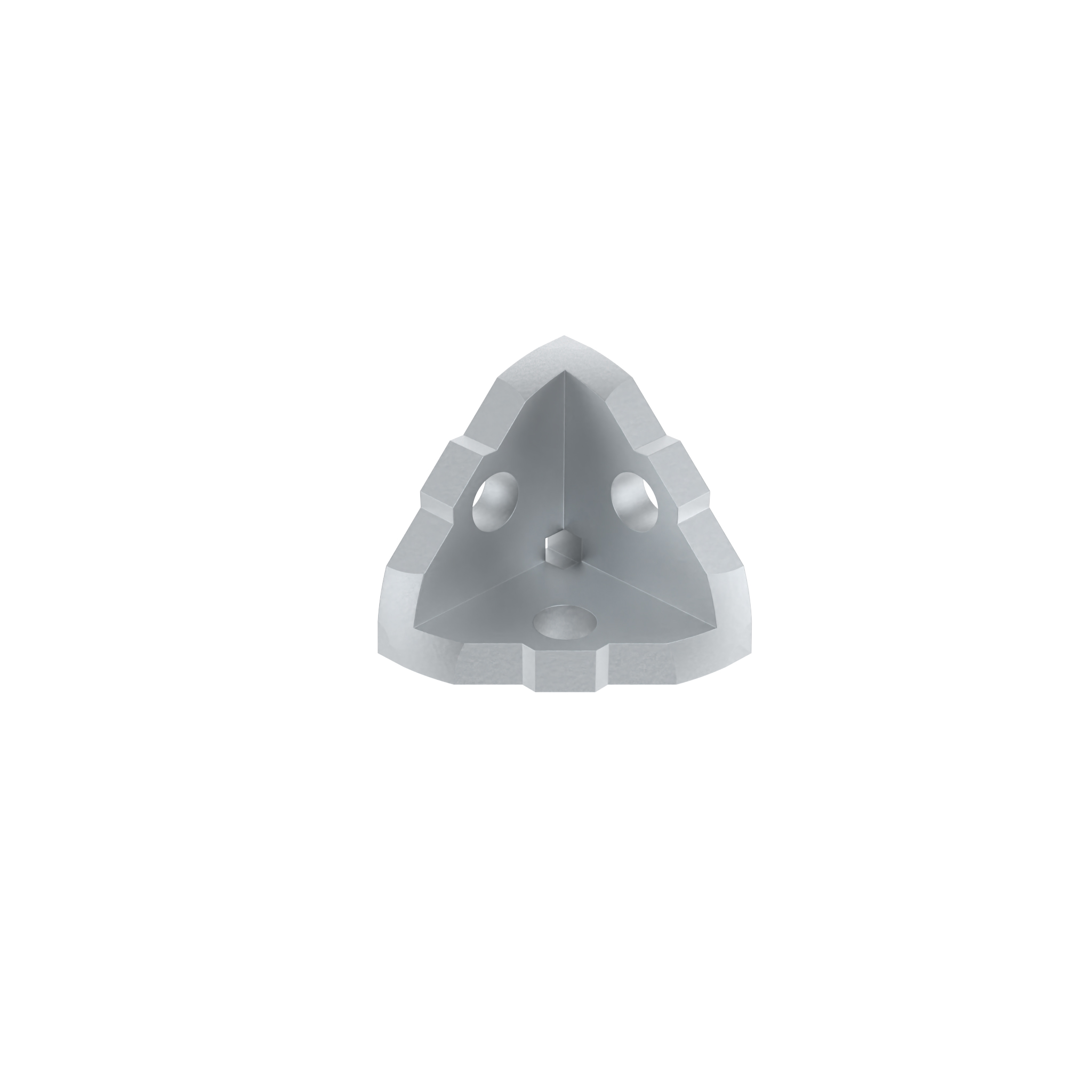

3-way Connection Angle I 30

Product information "3-way Connection Angle I 30"

Delivery Countries:
Worldwide

Description:

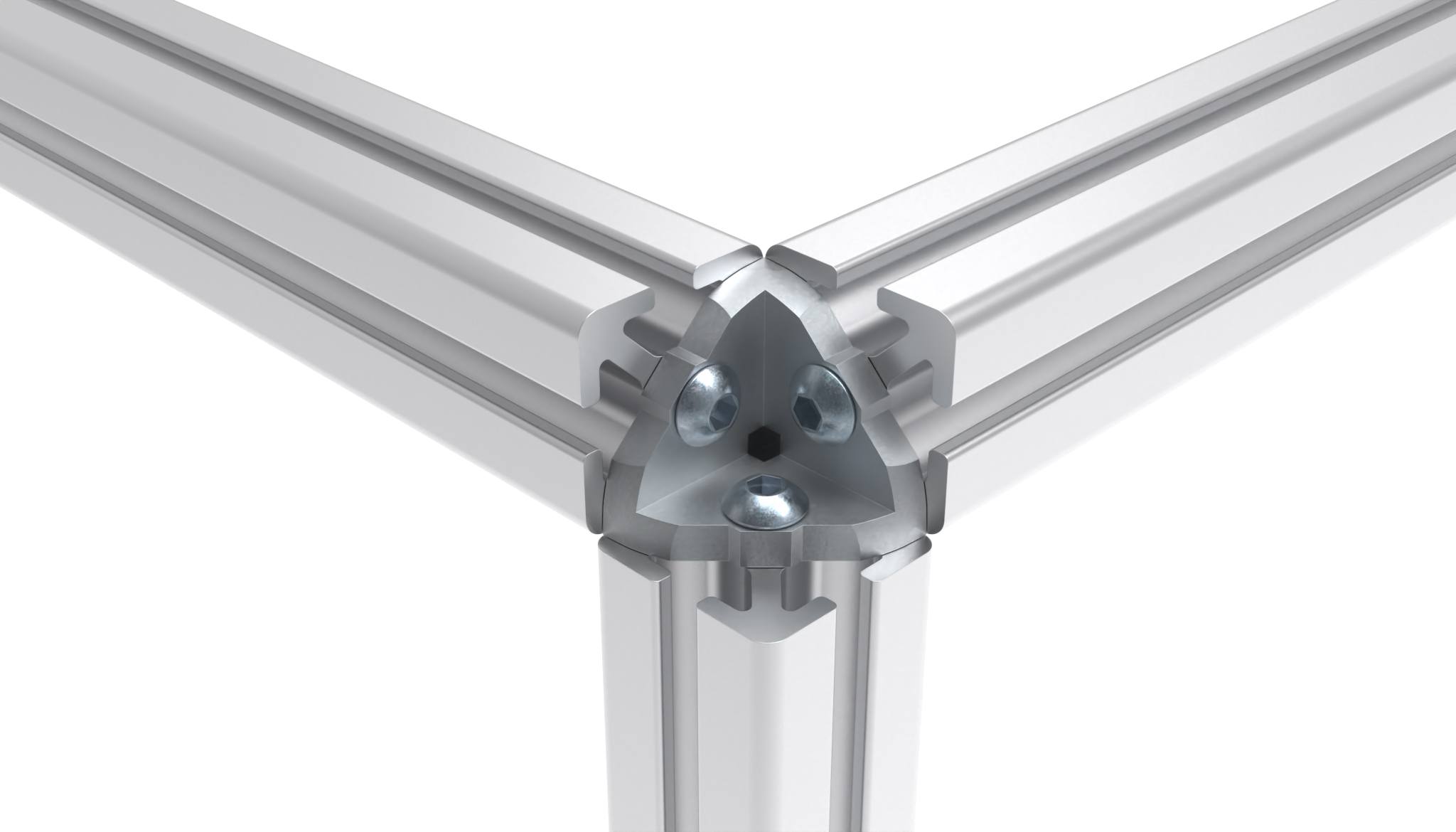

To connect up to three aluminum profiles at right angles

Material:
Zinc die-cast

Surface:
Plain

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast, for profile 30
Pack Quantity: 50 pieces
Weight (g): 39.6

Variants

Product ID for Screw Profile Slot N (mm)
093WE302N06 M6 I 6

CAD Downloads

Certificates
