Adapter Plate for Fixed Casters Ø 80 / 100 / 125

Product information "Adapter Plate for Fixed Casters Ø 80 / 100 / 125"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

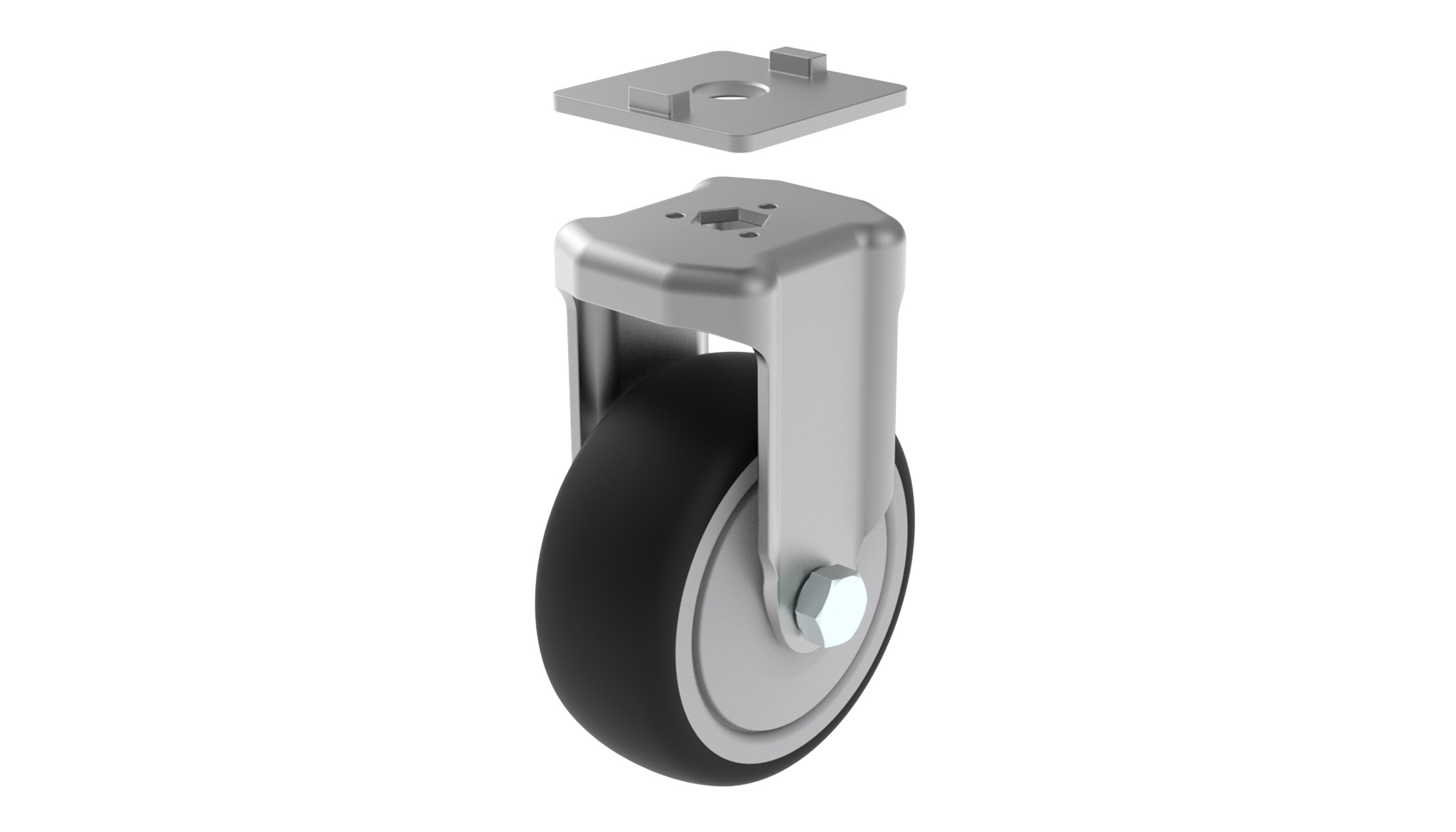

For positive-locking and anti-twist installation of fixed casters to aluminum profiles

Material:
Zinc die-cast

Surface:
Powder coated

Tip:
Compatible Fixed Caster Ø 80 / 100 / 125 see 098F080TN
Model: Zinc die-cast
Pack Quantity: 10 pieces
Customs Tariff Number Export: 79070000
Weight (g): 38.0
ECLASS 6.0: 23370202
ECLASS 7.0: 23370202
ECLASS 8.0: 23370202
ECLASS 9.0: 23370202
ECLASS 10.0: 23370202
ECLASS 11.0: 23370202
ECLASS 12.0: 23370202
ECLASS 13.0: 23370202
ERP Number: 139713
Zolltarifnummer: 79070000900

Variants

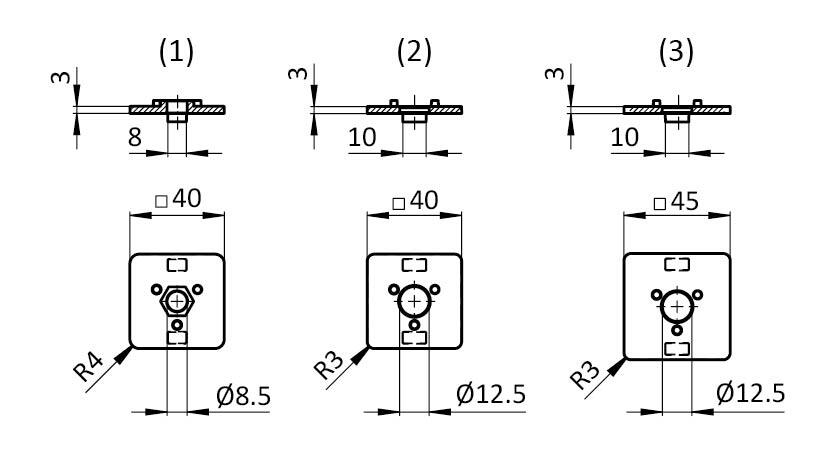

Part # Fig. Slot N (mm) Profile Width
098FA40N08 8 40
098FA40N10 10 40
098FA45N10 10 45
