Adapter Plate for Swivel Casters Ø 80 / 100 / 125

Product information "Adapter Plate for Swivel Casters Ø 80 / 100 / 125"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

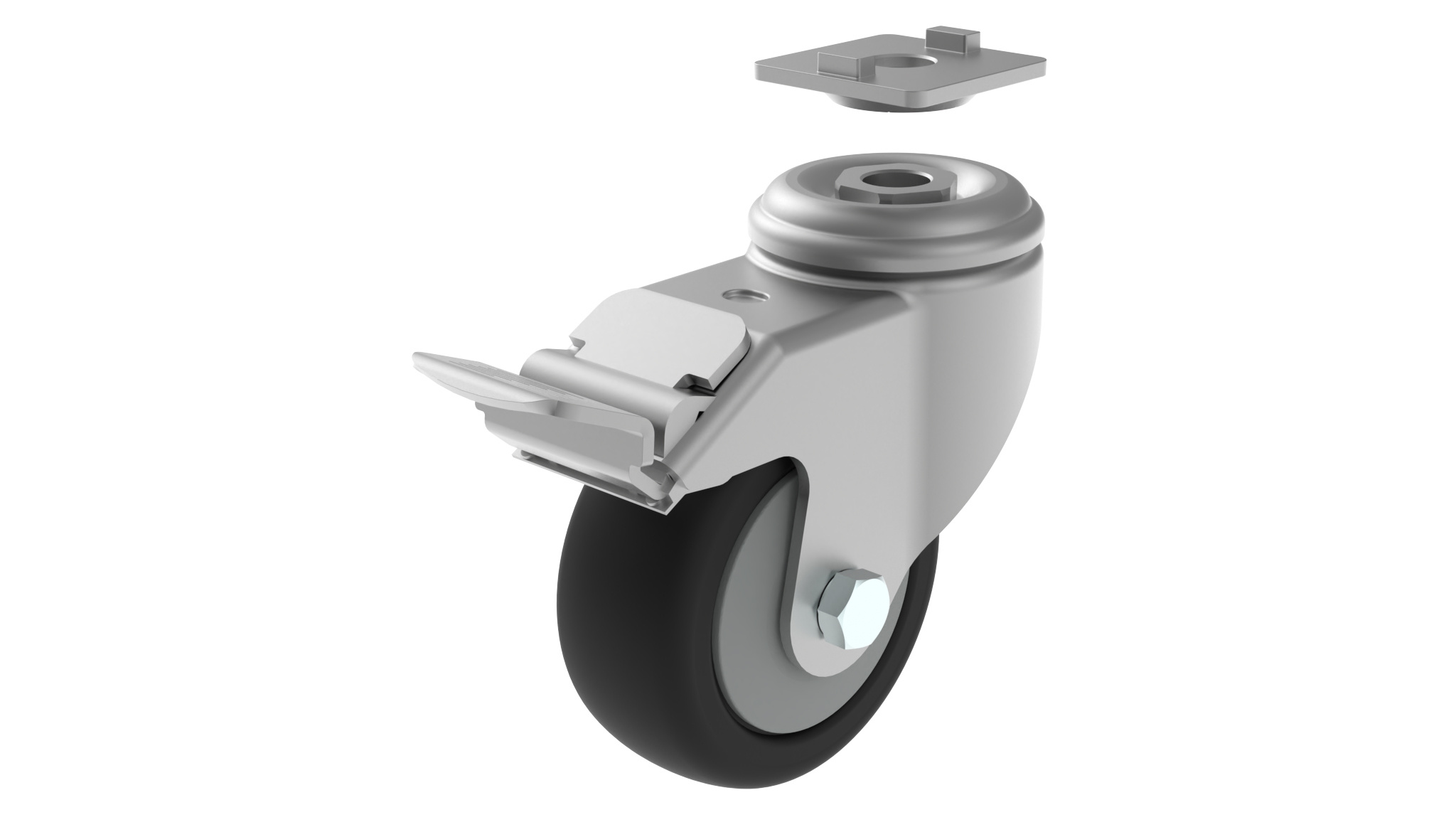

For positive-locking and anti-twist installation of swivel casters to aluminum profiles

Material:
Zinc die-cast

Surface:
Powder coated

Tip:
Compatible Swivel Caster Ø 80 / 100 / 125 see 098S080TN, 098S080TDN
Model: Zinc die-cast
Pack Quantity: 10 pieces
Customs Tariff Number Export: 79070000
Weight (g): 47.0
ECLASS 6.0: 23370201
ECLASS 7.0: 23370201
ECLASS 8.0: 23370201
ECLASS 9.0: 23370201
ECLASS 10.0: 23370201
ECLASS 11.0: 23370201
ECLASS 12.0: 23370201
ECLASS 13.0: 23370201
ERP Number: 140035
Zolltarifnummer: 79070000900

Variants

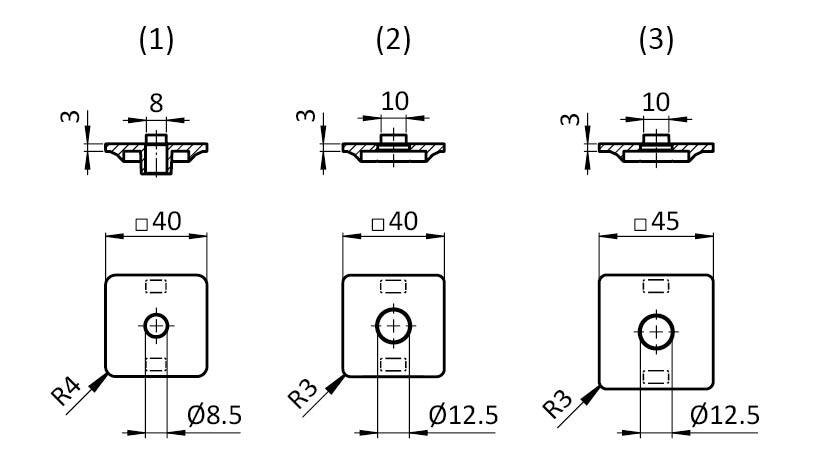

Part # Fig. Slot N (mm) Profile Width
098SA40N08 8 40
098SA40N10 10 40
098SA45N10 10 45
