Adjustable Leveling Foot

Product information "Adjustable Leveling Foot"

Color:
Black

Delivery Countries:
Worldwide

Description:
Leveling foot for fastening to aluminum profiles, height adjustable without tool

Material:
Housing: Plastic PA, glass fiber reinforced
Mechanism: Zinc plated steel

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Zolltarifnummer:
39269097900

Model:	Plastic PA
Pack Quantity:	10 pieces
Weight (g):	78.0

Variants

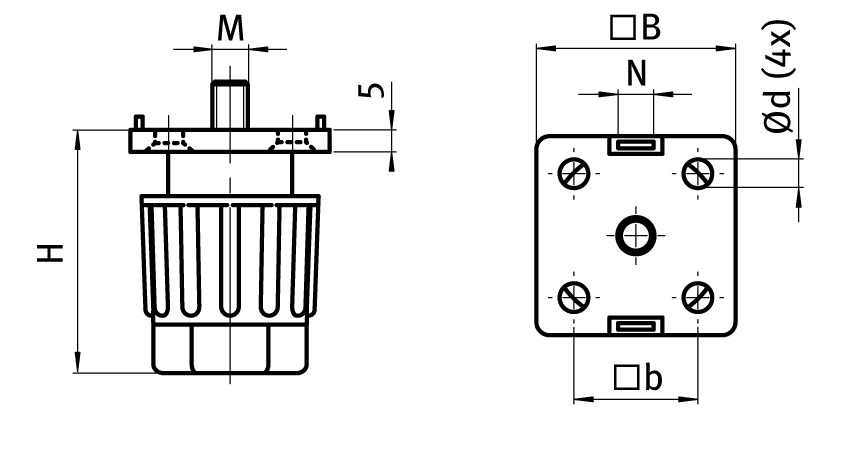

Product ID	H (mm)	Ød (mm)	b (mm)	B (mm)	Slot N (mm)
098H300606	35-50	4.3	20.5	30	6
098H300808	35-50	4.3	20.5	30	8
098H350808	35-50	4.3	20.5	35	8
098H400808	45-65	6.5	28.0	40	8
098H401008	45-65	6.5	28.0	40	10
098H450808	45-65	6.5	28.0	45	8
098H451008	45-65	6.5	28.0	45	10
098H501008	45-65	6.5	28.0	50	10
