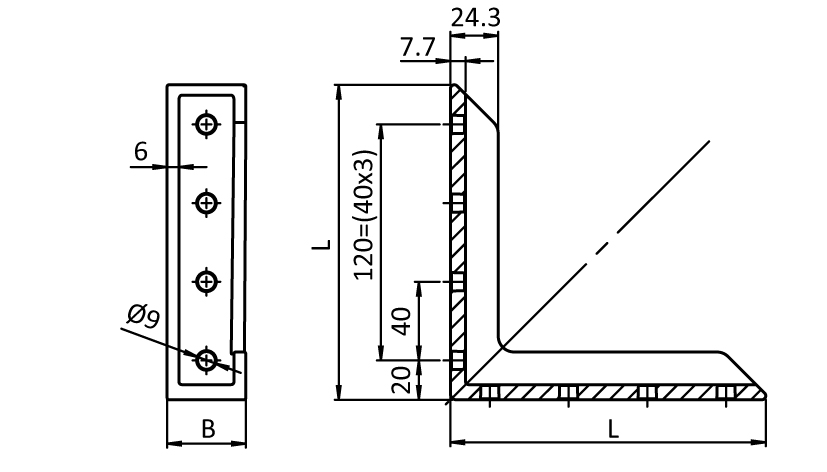

Alu Support Bracket 40 x 160
Regular price:
€0.00
Part #:
093W409
Pack Quantity:
1 piece
Description:

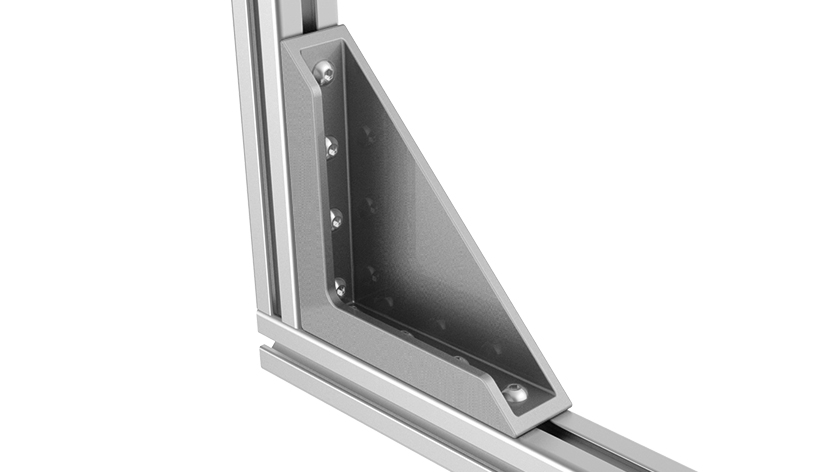

To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floor
To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floor
Material:
Aluminum die-cast
Surface:
Powder coated
Color:
Alu color
Tip:
Compatible Fixation T-Slot Nut (Set) for Support Bracket 160 see 096000S83
Specials:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
Aluminum die-cast
Surface:
Powder coated
Color:
Alu color
Tip:
Compatible Fixation T-Slot Nut (Set) for Support Bracket 160 see 096000S83
Specials:
Other surfaces, other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Aluminum die-cast |
| Weight (g): | 495.0 |
| ERP Number: | 143854 |
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
Certificates
Skip product gallery
Matching accessories
Roll-in T-slot Nut for Support Bracket 160
Regular price:
€0.00
Version:
T-slot nut with spring loaded ball
Profile:
I
Fig.:
①
Assembly Set:
incl. assembly set
M:
M8
Description:Roll-in T-slot nutMaterial:T-slot nut, screws and shims: Zinc plated steel Ball: Stainless steelAssembly Set:4x M8, 4 screws DIN EN ISO 7380 (DIN 34805)- M8 x 20, 4 shims DIN EN ISO 7089 (DIN 125) - 8,4Specials:ESD electrostatical discharging, available on requestDelivery Countries:Worldwide
