Alu Support Bracket 80 x 160

Product information "Alu Support Bracket 80 x 160"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

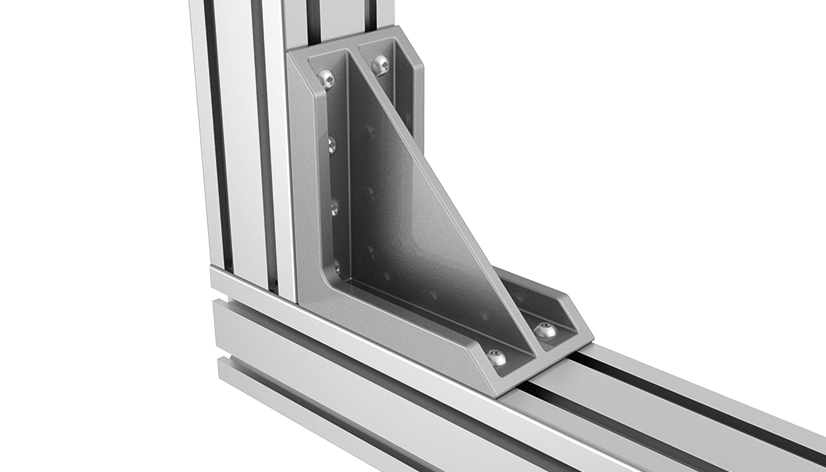

To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floor

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:
Compatible Fixation T-Slot Nut (Set) for Support Bracket 160 see 096000S83
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 76169910
Model: Aluminum die-cast
Pack Quantity: 1 piece
Weight (g): 815
Zolltarifnummer: 76169910990
pA Number: 143853

Variants

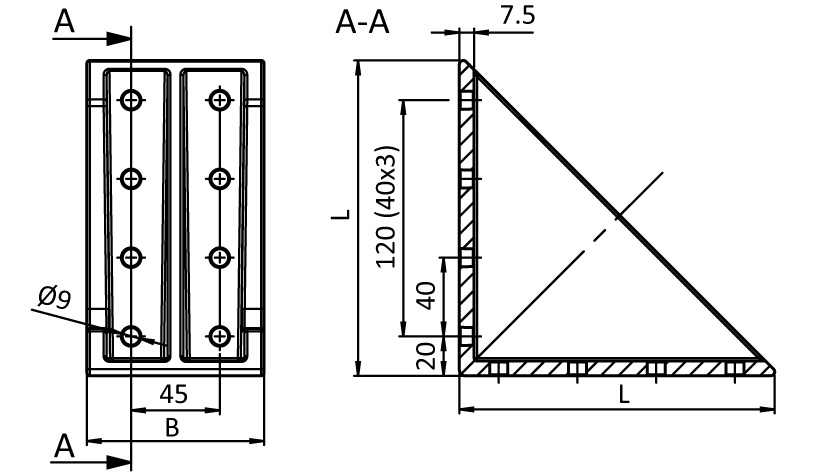

Product ID L (mm) B (mm)
093W810 160 80
