Aluminum Hinge 40 Light

Product information "Aluminum Hinge 40 Light"

Assembly Set:
2 countersunk screws DIN 7991 - M6 x 14,
2 self-aligning T-Slot nuts M6 - slot 8

Color:
Cover cap: White aluminum ≈ RAL 9006

Delivery Countries:
Worldwide

Description:

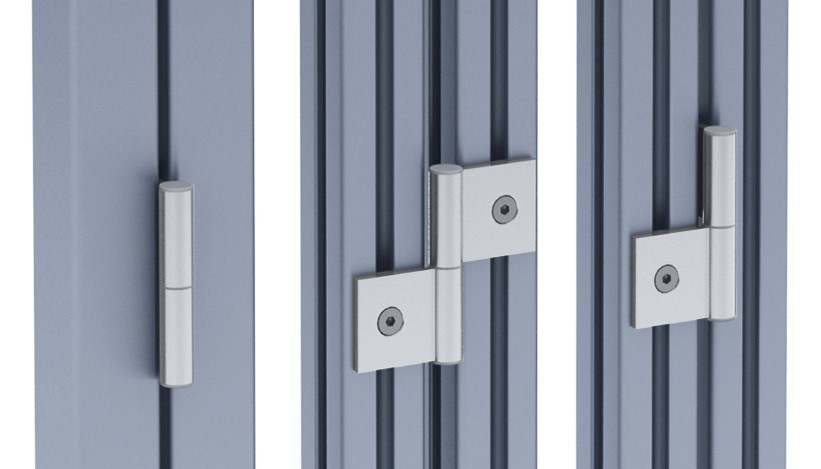

For panels and aluminum profiles; left or right side assembly

Material:
Wings: Aluminum
Bolt: Stainless steel
Cover cap: Plastic TPE

Surface:
Wings: Anodized
Bolt: Plain

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090

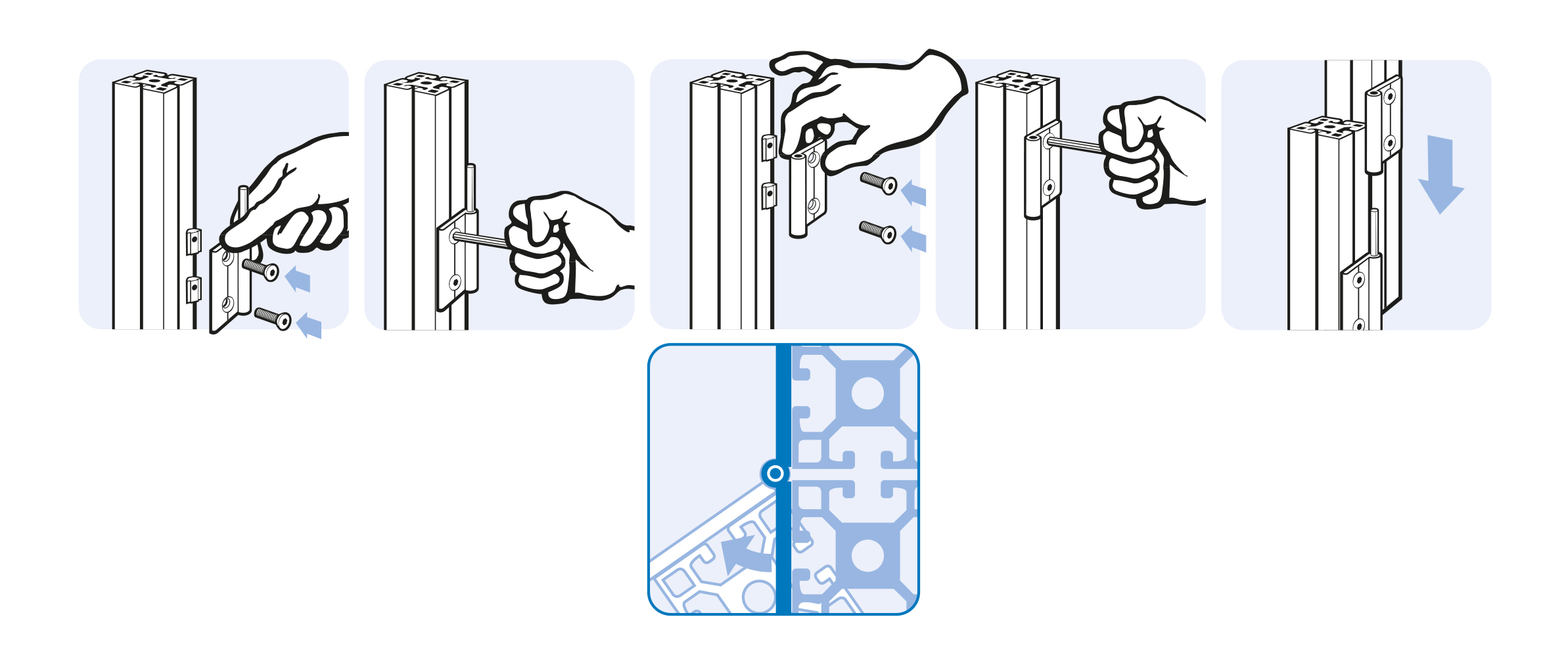

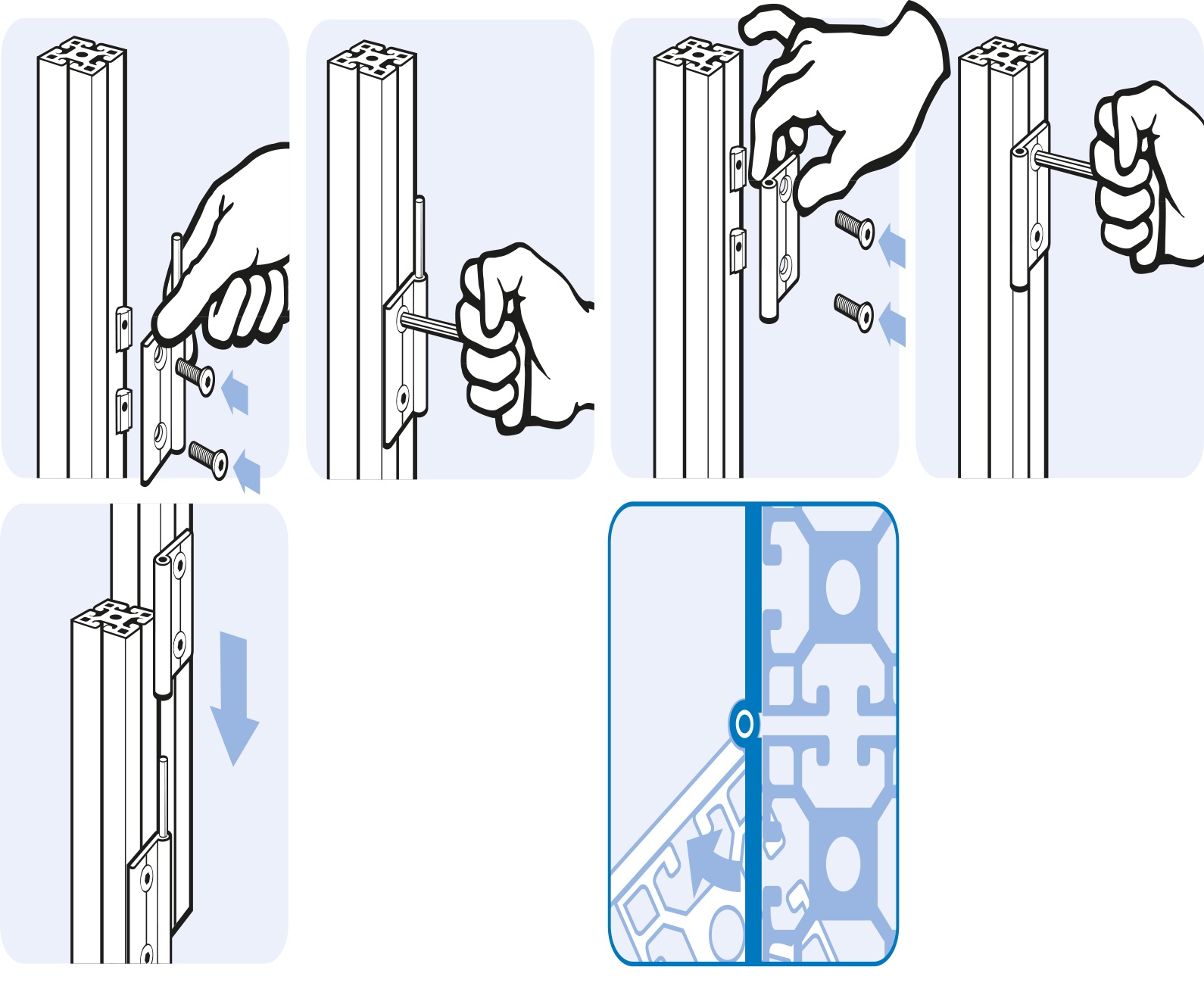

Fastening: From the front, using M6 countersunk screws
Model: Detachable, slot 8
Pack Quantity: 10 pieces / 10 set
Weight (g): 106.0

Variants

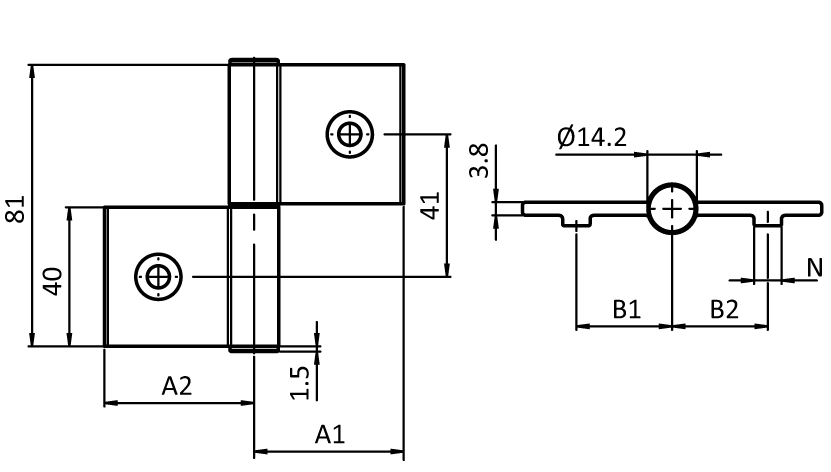

Product ID B1 (mm) A2 (mm) B2 (mm) A1 (mm) Slot N (mm) Version Profile
095AL40N0840N08 27.5 43.0 27.5 43.0 8
095AL40N0840N08S01 27.5 43.0 27.5 43.0 8 incl. assembly set I
