Angle Block 40/45

Product information "Angle Block 40/45"

Assembly Set:
2 hammer screws M8 x 25,
2 flange nuts M8

Delivery Countries:
Worldwide

Description:

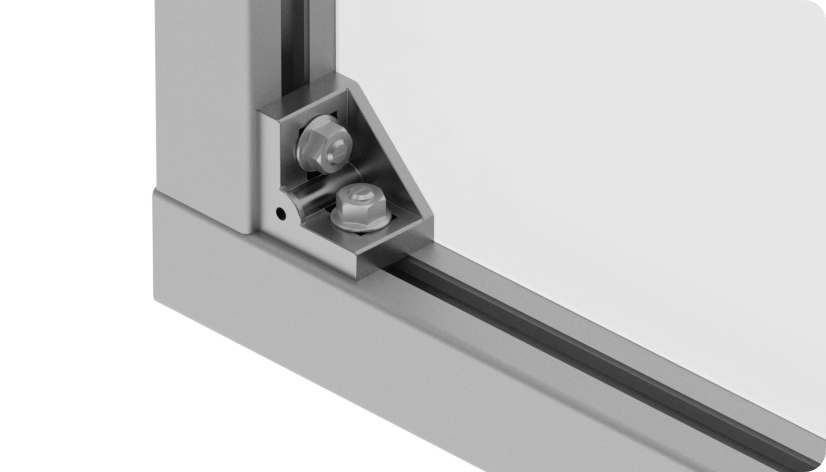

To attach panels to aluminum profiles; especially for high load bearing on the panels

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Plain

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Model: Aluminum die-cast, profile 40 + 45
Pack Quantity: 10 pieces / 10 set
Weight (g): 75.6

Variants

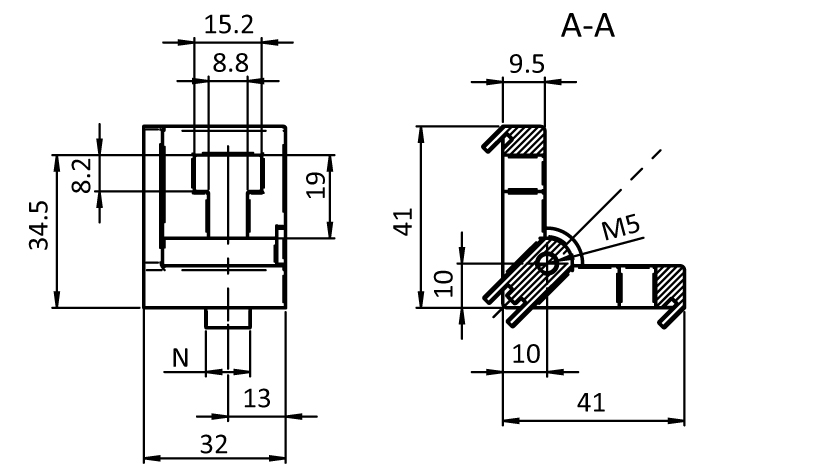

Product ID Slot N (mm) Dimensions (mm) Profile Set
094A4045 10 M5
094A4045S01 10 M5 B incl. assembly set
