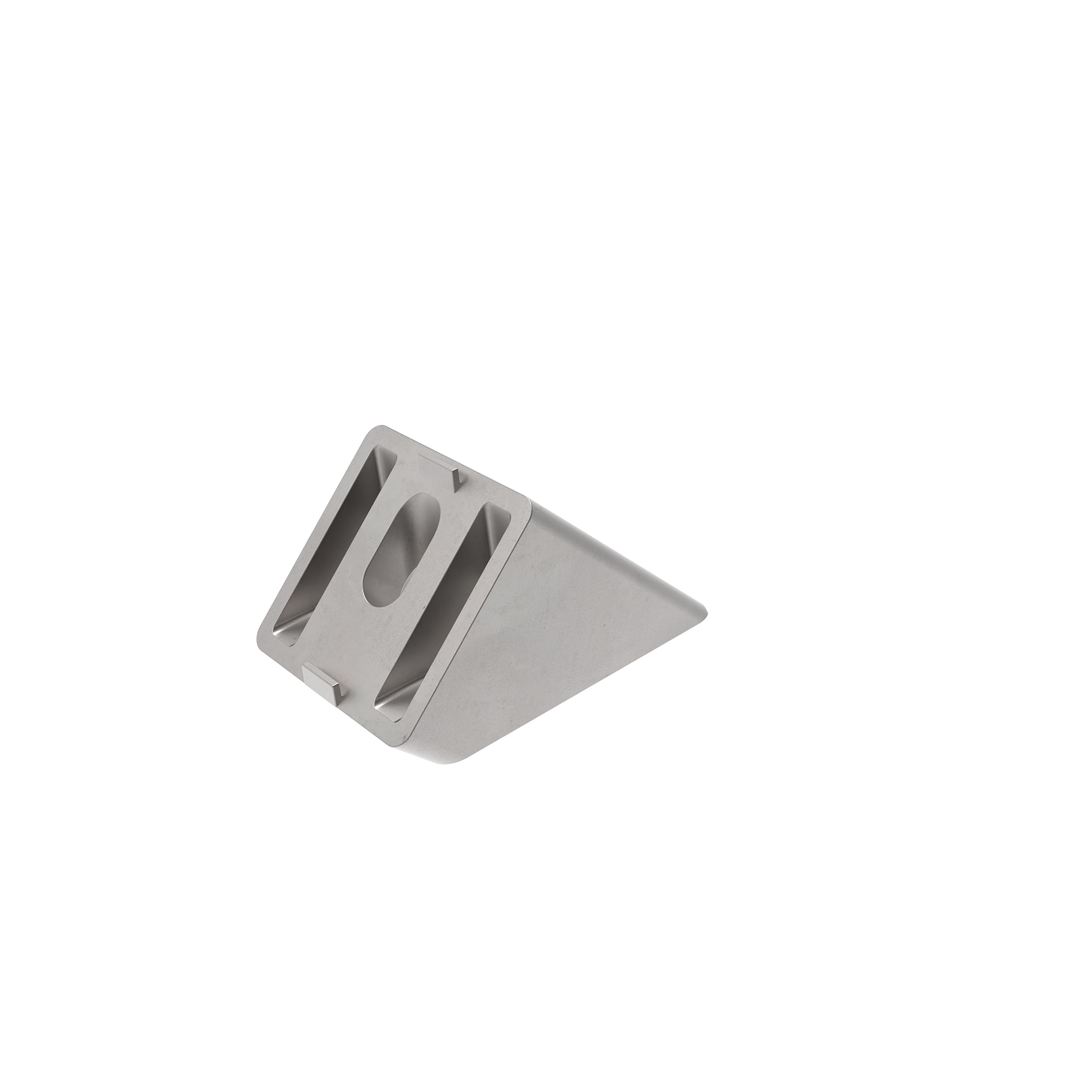

Angle Connector 38 - 1.5", 45°

Product information "Angle Connector 38 - 1.5", 45°"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

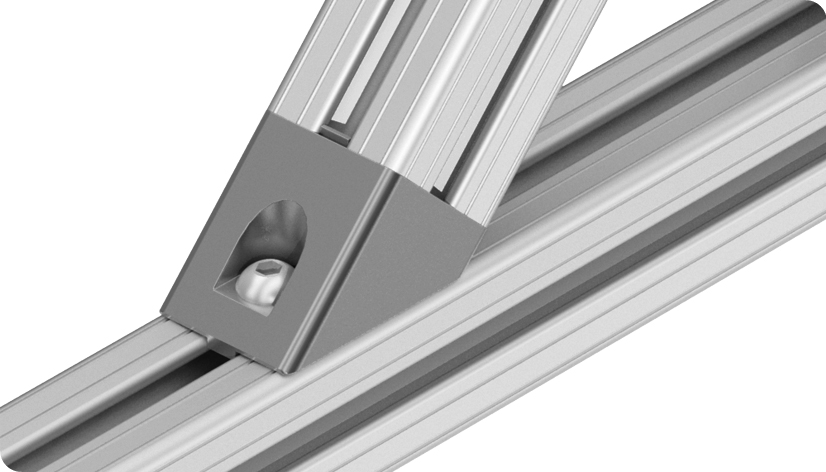

To mount a profile as bracing at a 45° angle without miter cut

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Plain / powder coated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 69.1

Variants

Product ID Slot N (mm) for Screw Color Surface
093WS38145N08 8 5/16"-18 Alu color Powder coated
093WS38145N08R 8 5/16"-18 Plain

CAD Downloads

Certificates
