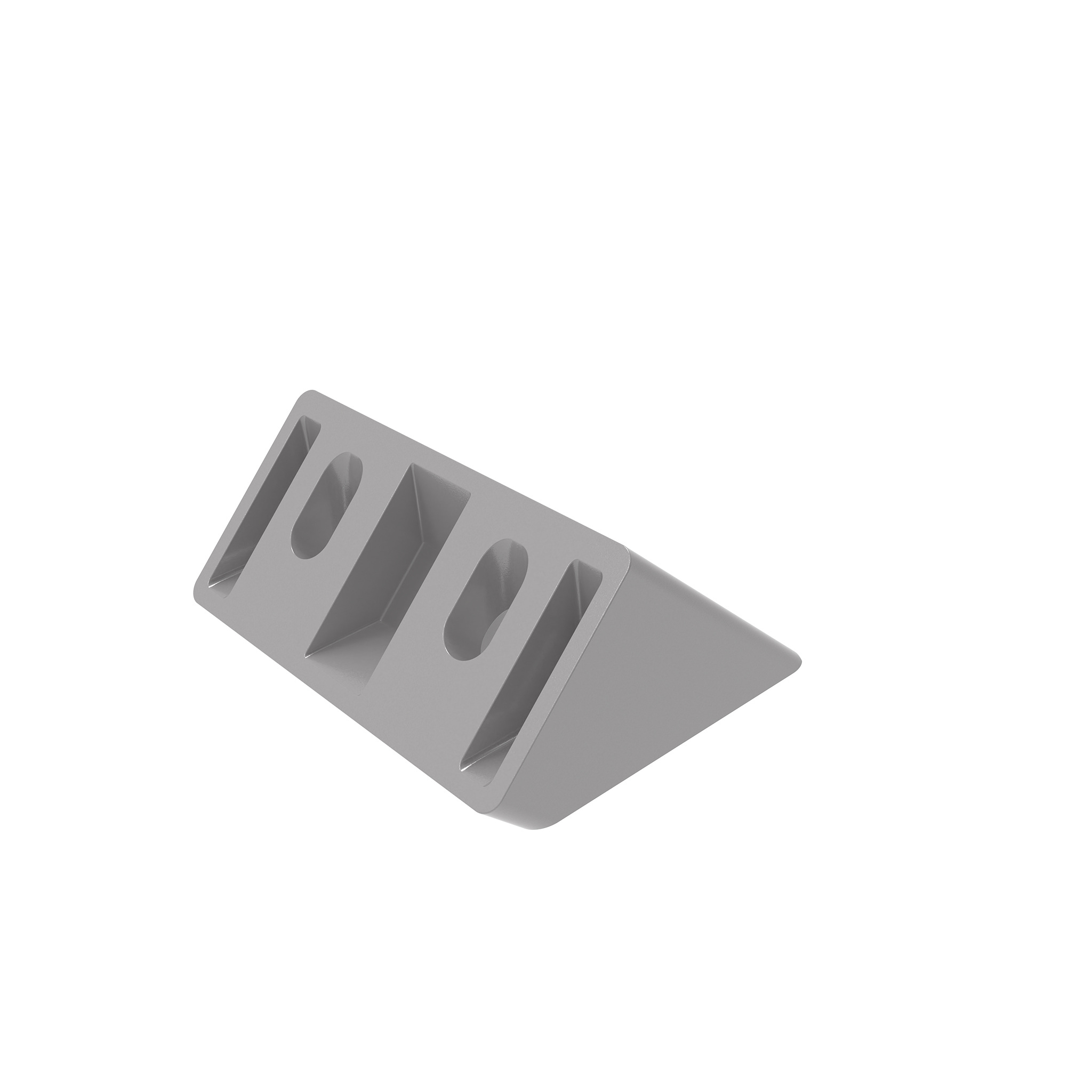

Angle Connector 76 x 38 - 3" x 1.5", 45°

Product information "Angle Connector 76 x 38 - 3" x 1.5", 45°"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

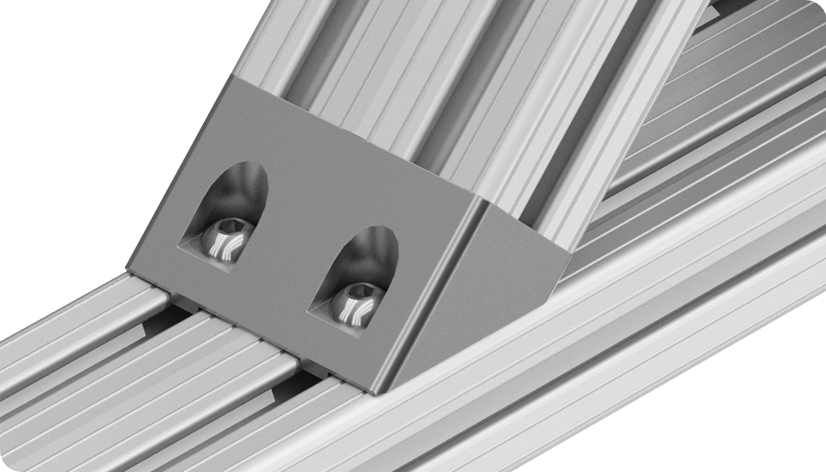

To mount a profile as bracing at a 45° angle without miter cut

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Plain / powder coated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 135.2

Variants

Product ID Color Slot N (mm) for Screw Surface
093WS76145N08 Alu color 8 5/16"-18 Powder coated
093WS76145N08R 8 5/16"-18 Plain

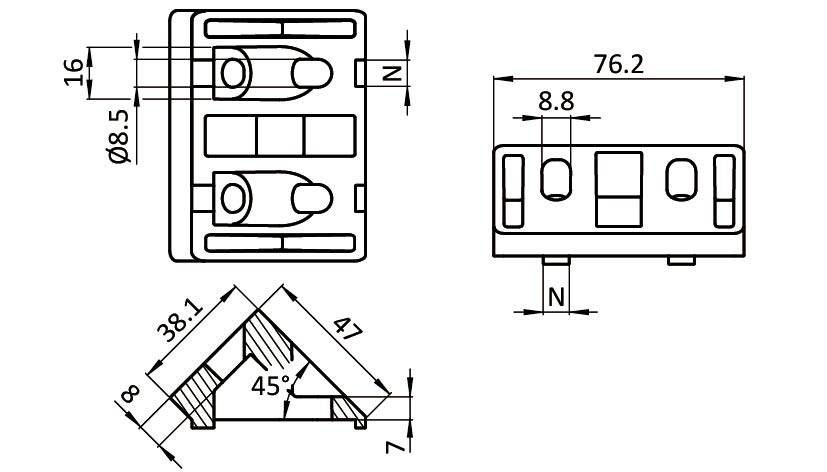

CAD Downloads

Certificates
