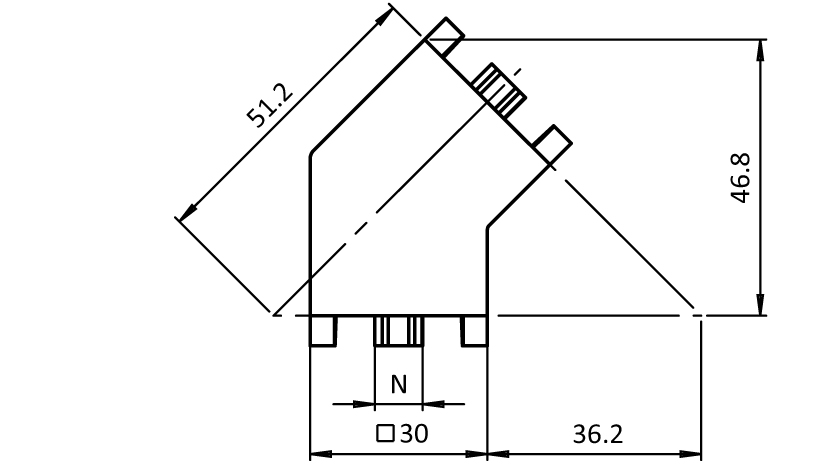

Angle Connector B 30, 45°
Product number:
093WS30145N0810S02
Product information "Angle Connector B 30, 45°"
Assembly Set:
2 self-forming screws S8 x 25 - hexalobular socket T40 ,
1 socket head screw - DIN EN ISO 4762 (DIN 912) - M6 x 12,
1 washer DIN EN ISO 7089 (DIN 125) - Form A,
1 hammer nut M6 - slot 8,
1 socket head screw - DIN EN ISO 4762 (DIN 912) - M8 x 16,
1 hammer nut M8 - slot 10
Color:
Centering pieces: Black
Cover caps: Black / alu color
Delivery Countries:
Worldwide
Description:

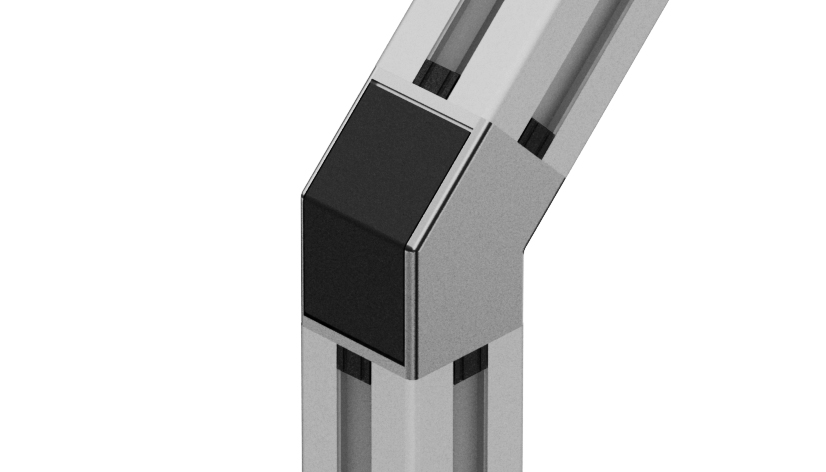

To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Centering pieces: Plastic PA, glass fiber reinforced
Cover caps: Plastic PA, glass fiber reinforced
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
2 self-forming screws S8 x 25 - hexalobular socket T40 ,
1 socket head screw - DIN EN ISO 4762 (DIN 912) - M6 x 12,
1 washer DIN EN ISO 7089 (DIN 125) - Form A,
1 hammer nut M6 - slot 8,
1 socket head screw - DIN EN ISO 4762 (DIN 912) - M8 x 16,
1 hammer nut M8 - slot 10
Color:
Centering pieces: Black
Cover caps: Black / alu color
Delivery Countries:
Worldwide
Description:
To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Centering pieces: Plastic PA, glass fiber reinforced
Cover caps: Plastic PA, glass fiber reinforced
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Model: | Aluminum die-cast |
| Pack Quantity: | 10 pieces / 10 set |
| Weight (g): | 45.0 |
