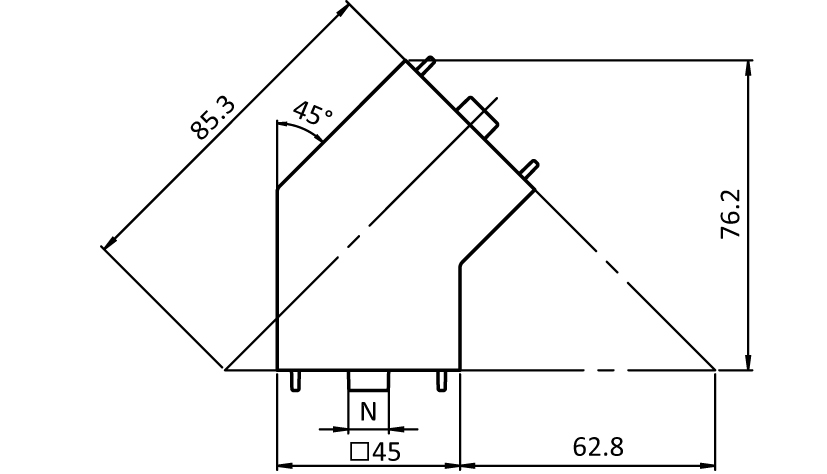

Angle Connector B 45, 45°
Part #:
093WS45145N10S02
Product information "Angle Connector B 45, 45°"

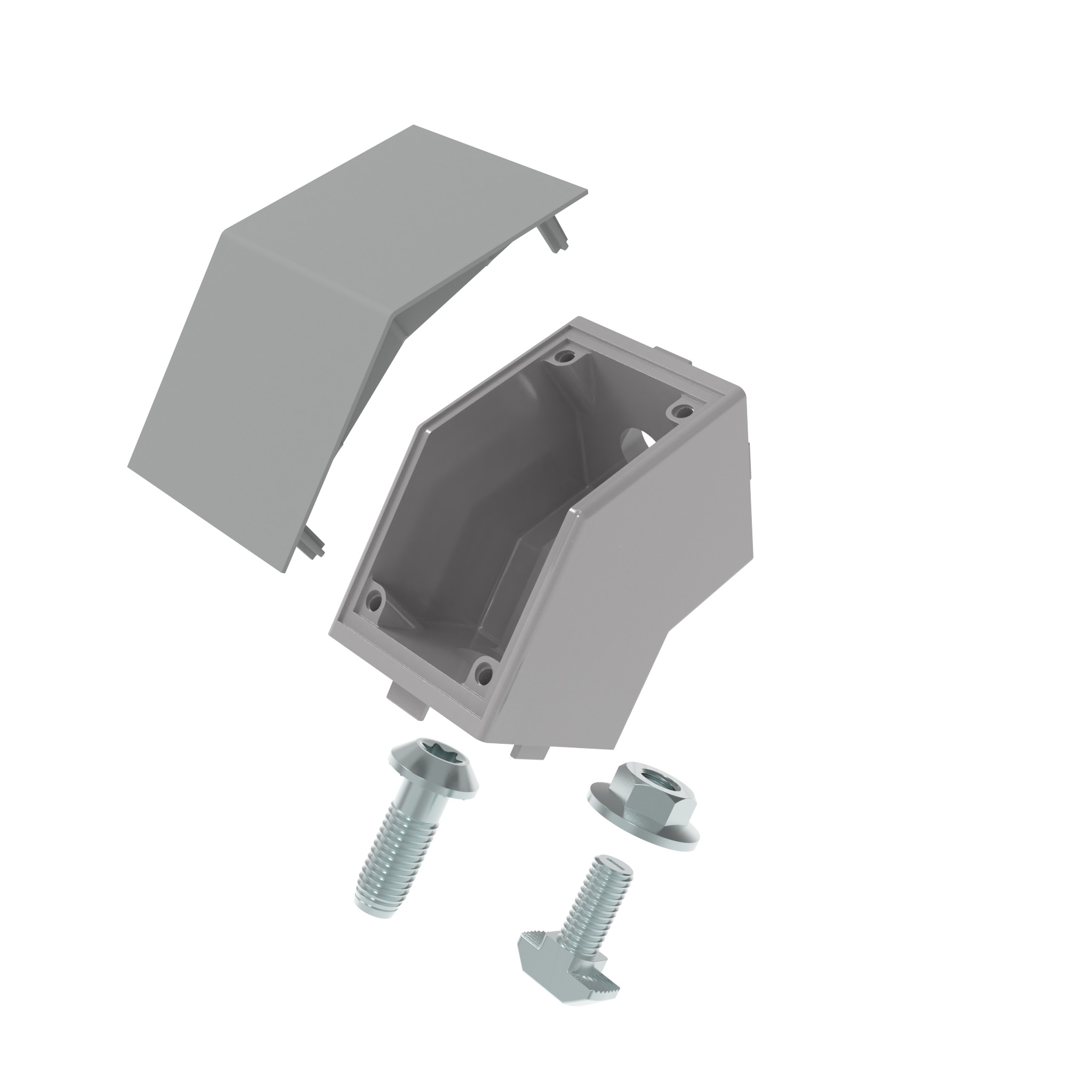

Assembly Set:
2 self-forming screws S12 x 30 - hexalobular socket T50,
1 hammer head screw M8 x 20 - slot 10,
1 flange nut M8
Color:
Cover caps: Black / gray
Delivery Countries:
Worldwide
Description:

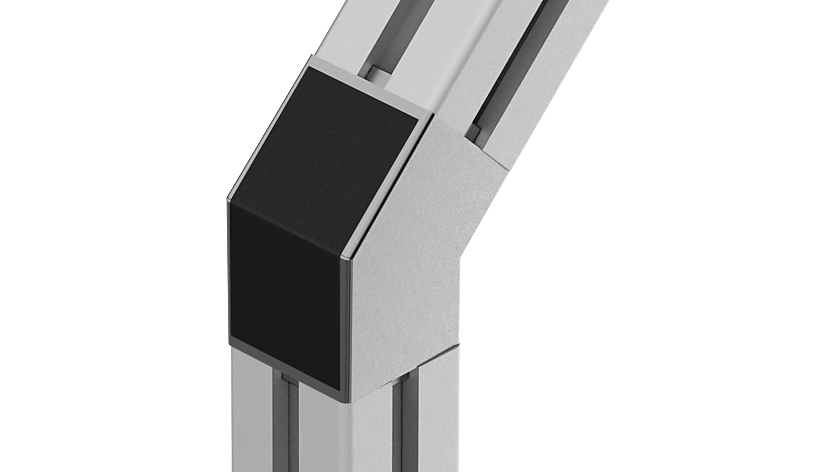

To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Cover caps: Plastic PA, glass fibre reinforced
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
2 self-forming screws S12 x 30 - hexalobular socket T50,
1 hammer head screw M8 x 20 - slot 10,
1 flange nut M8
Color:
Cover caps: Black / gray
Delivery Countries:
Worldwide
Description:
To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Cover caps: Plastic PA, glass fibre reinforced
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 76169990 |
| ERP Number: | 119258 |
| Model: | Aluminum die-cast |
| Pack Quantity: | 10 pieces / 10 set |
| Weight (g): | 231.0 |
