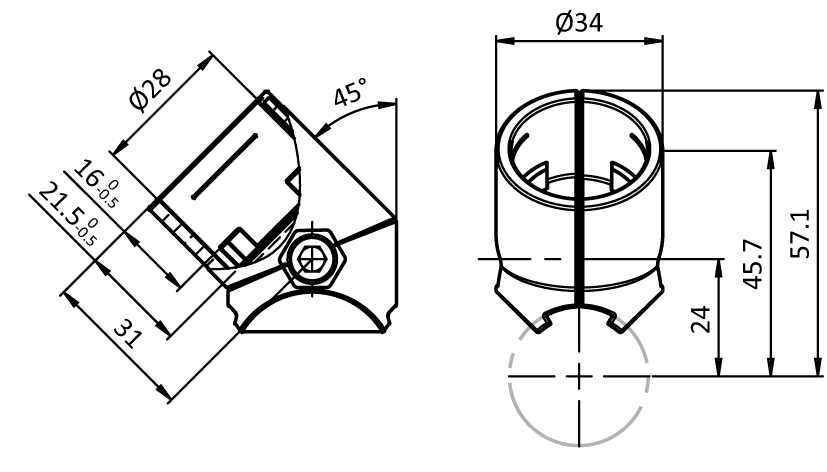

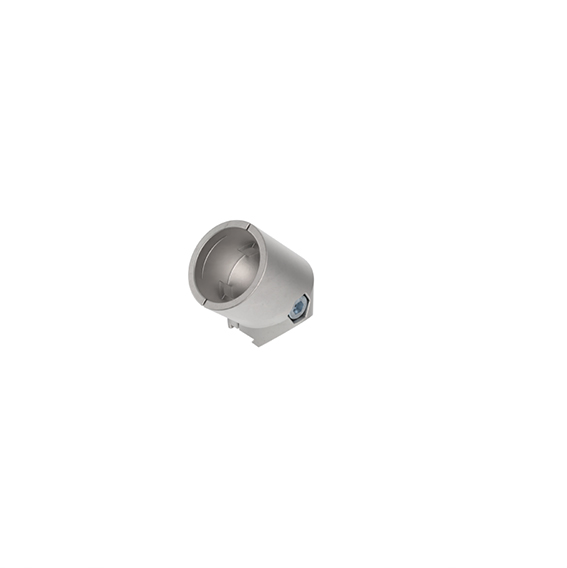

Angle Connector D28, 45° (Set)
Part #:
099RV2845S01
Product information "Angle Connector D28, 45° (Set)"
Delivery Countries:
Worldwide
Description:

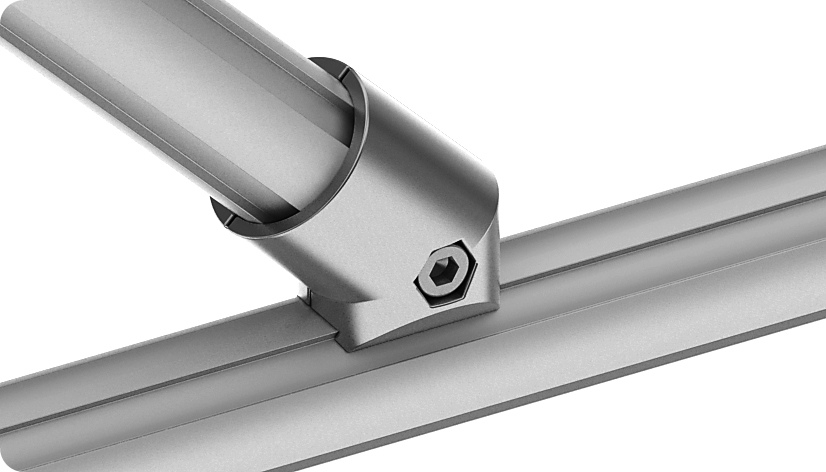

To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for angle connector D28 ,45°,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
Worldwide
Description:
To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for angle connector D28 ,45°,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 76169910 |
| ERP Number: | 124781 |
| Model: | For tubular frame profiles |
| Pack Quantity: | 10 sets |
| Weight (g): | 58.0 |
| Zolltarifnummer: | 76169910990 |
