Connectors D28, Tubular Frame Components
Adapter Piece D28 - 40 M8 (Set)
Color:Adapter piece: Alu color Centering plate: Alu colorDelivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)Material:Adapter piece: Alu die-cast Centering plate: Alu die-cast Screws: Steel Washer: Steel T-slot nut: SteelSet:1 adapter piece 1 centering plate 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut) 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole) 1 washer 8-FSt 1 T-slot nut - slot 10 - M8Surface:Adapter piece: Laquered Centering plate: Laquered Screws: Zinc plated Washer: Zinc plated T-slot nut: Zinc platedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Adapter Plate D28 (Set)
Delivery Countries:WorldwideDescription:To connect tubular frame profiles with slot 8 or 10 aluminum profilesFastening:With pan-head-screw DIN EN ISO 7380 (DIN 34805) - M8Material:Adapter plates: Aluminum die-cast Centering piece: Zinc die-castSet:1 adapter plate, 2 locating pins for slot 8 and 10Surface:PlainTip:Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01 *Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Angle Connector 2D28 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Angle Connector D28, 45° (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D28 ,45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Corner Connector 2D28 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Cross Connector D28 (Set)
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profileswith Ø 28 mm outer diameter; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Inner Ball Butt Connector D28 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for inner ball butt connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Inner Ball Connector D28 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for inner ball butt T-connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Inner T-Connector D28 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for inner T-connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

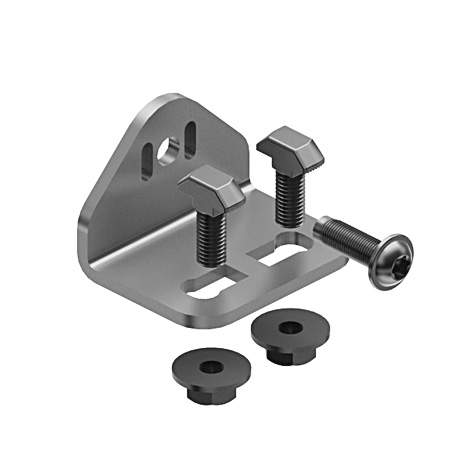

Mounting Bracket 60 x 47, D28 (Set)
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; adjustable by slotted holesMaterial:SteelSet:1 mounting bracket, 1 self-tapping screw S8 x 25 - hexalobular Socket T40, 2 hammer head screws - Nut 10 - M8 x 20, 2 flange nuts M8Surface:Zinc plated

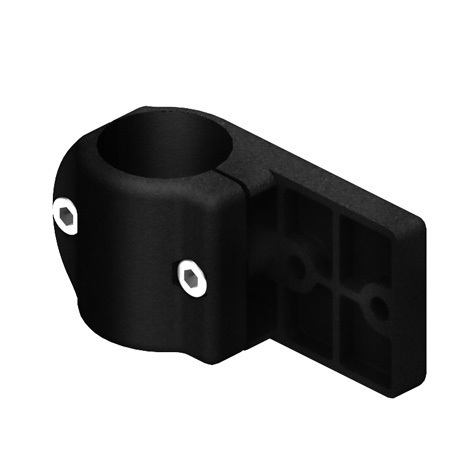

Mounting Clamp D28 (Set)
Color:Mounting clamp: BlackDelivery Countries:WorldwideDescription:To laterally connect a tubular frame profilewith Ø 28 mm outer diameter to an aluminum profile, hole spacing compatible with Ergoswiss® lift cylindersMaterial:Connector: Zinc die-cast Assembly set: SteelSet:2 components for mounting clamp D28, 2 screws DIN EN ISO 4762 (DIN 912) - M5 x 16, 2 screws DIN EN ISO 4762 (DIN 912) - M5 x 10, 2 nuts DIN EN ISO 4032 (DIN 934) - M5Surface:Mounting clamp: Powder coated Assembly set: Zinc plated
Outer Ball Butt Connector D28 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball butt connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Outer Ball Connector D28 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Outer T-Connector D28 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Parallel Clamp D28 (Set)
Delivery Countries:WorldwideDescription:To parallelly connect a tube or a tubular frame profile to a tubular frame profile with Ø 28 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel clamp D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Parallel Connector D28 (Set)
Delivery Countries:WorldwideDescription:To parallelly connect two tubular frame profileswith Ø 28 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

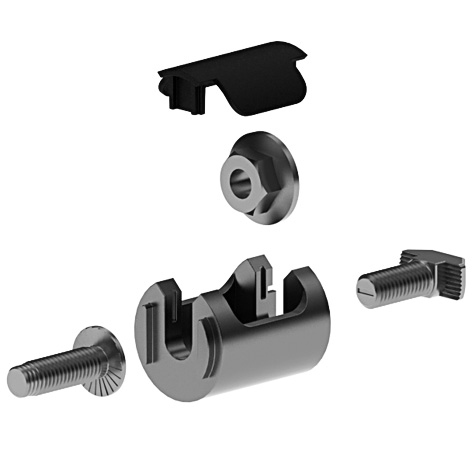

T-Connector D28 - Slot 10 (Set)
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profileMaterial:Connector: Aluminum die-cast Cover cap: Plastic PA Assembly set: SteelSet:1 T-connector D28 - slot 10, 1 cover cap, 1 self-tapping screw S8 x 25 - hexalobular socket T40, 1 flange nut M8, 1 hammer head screw - Nut 10 - M8 x 20Surface:Connector: Plain Cover cap: Black Assembly set: Zinc plated

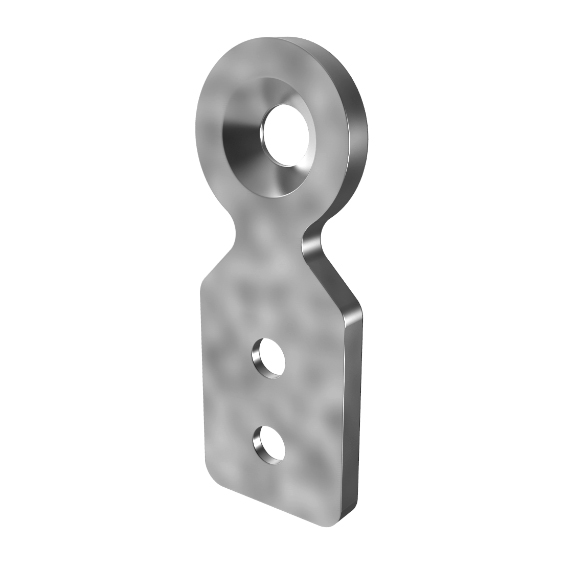

T-connector Plate D28
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profilesFastening:With countersunk screws 1x M8 and 2x M6Material:SteelSurface:Zinc platedTip:Compatible Threaded Sleeve D28 M8 see 099RV28AS02
