D30, Tubular Frame Components

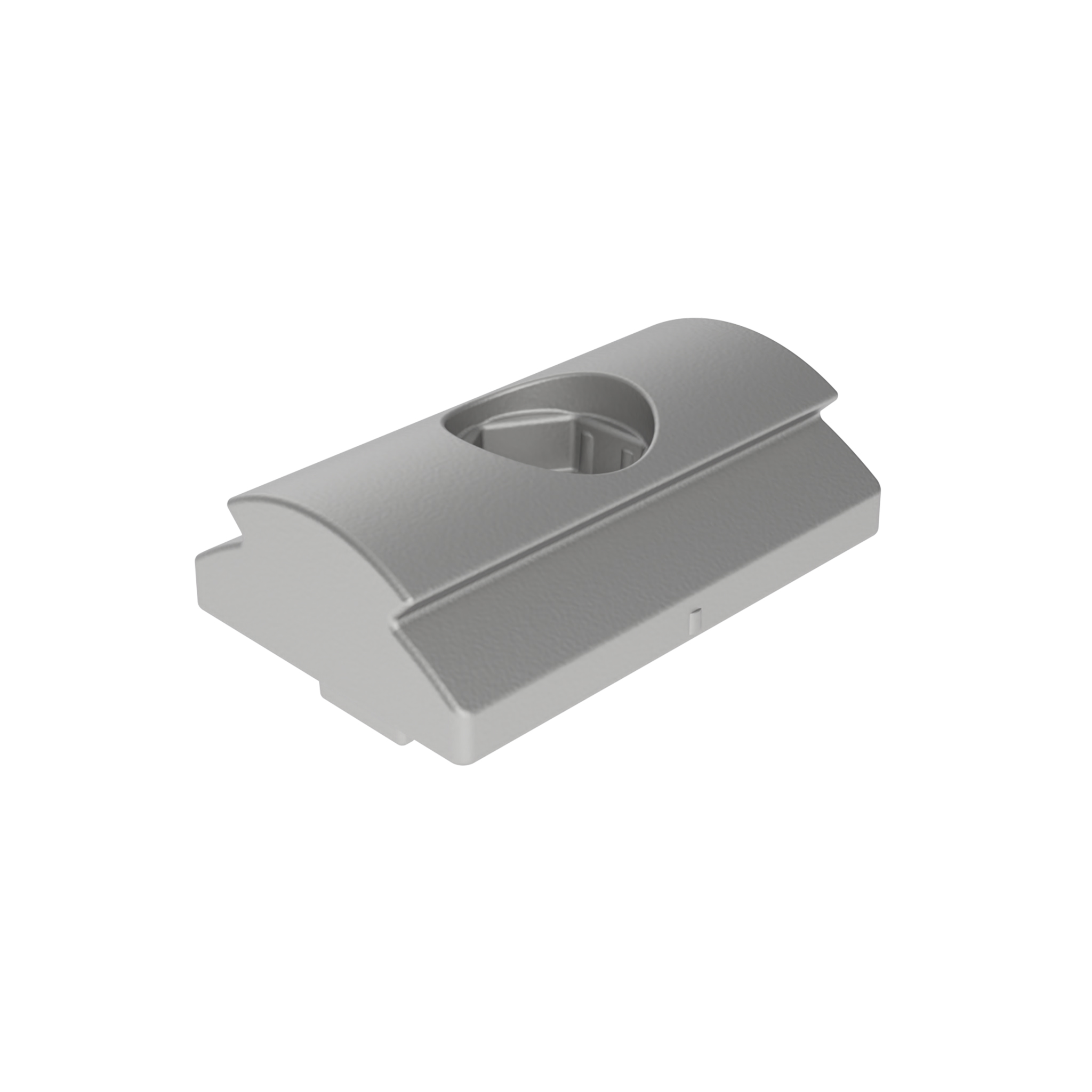

Adapter Piece D30, Slot 8
Color:V_PlainDelivery Countries:WorldwideDescription:To connect tubular frame profiles with slot 8 aluminum profilesMaterial:Aluminum die-castTip:Compatible Outer Ball Connector D30 (Set) see 099RV30KS01 Compatible Outer T-Connector D30 (Set) see 099RV3090LS01 Compatible Cross Ball Connector D30 (Set) see 099RV30KS04 Compatible Cross Connector D30 (Set) see 099RV30XS01 Compatible Parallel Connector D30 (Set) see 099RV30PS02 Compatible Angle Connector 2D30 (Set) see 099RV3090QS01 Compatible Angle Connector D30, 45° (Set) see 099RV3045S01 Compatible T-slot Nut see 096006

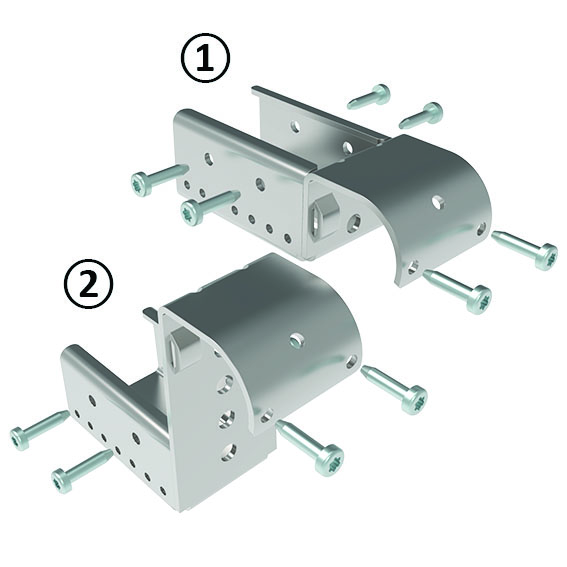

Holding Bracket XST D30
Assembly Set:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Delivery Countries:WorldwideDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated
Variable Holding Bracket XST D30
Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles XST and guiding rails XST central at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outFastening:with 5 or 6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Material:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

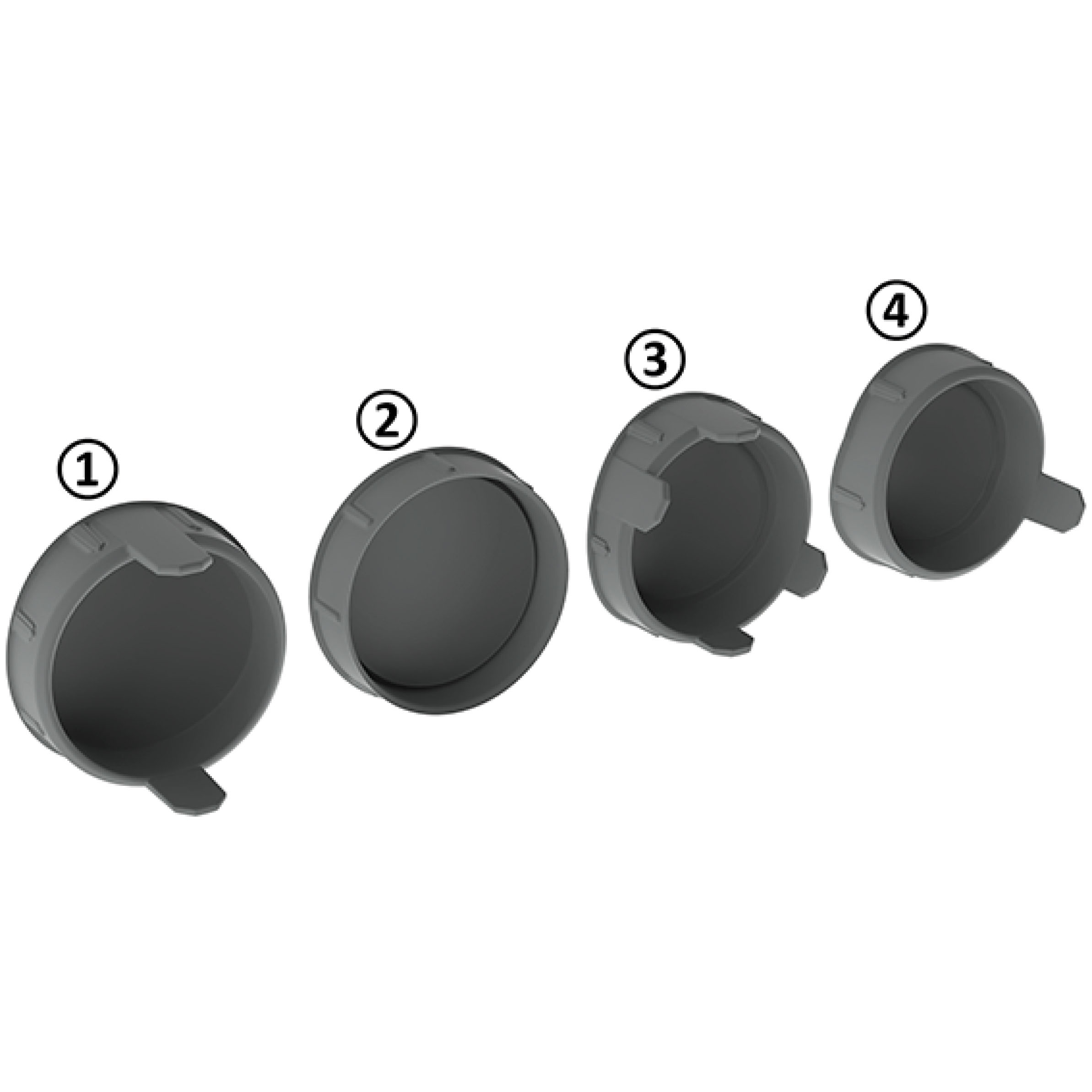

Cover Cap for Tubular Frame Connectors D30
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To cover the screw hole of connectors for tubular frame profiles with Ø 30 mm outer diameterMaterial:Plastic PA, glass fiber reinforced

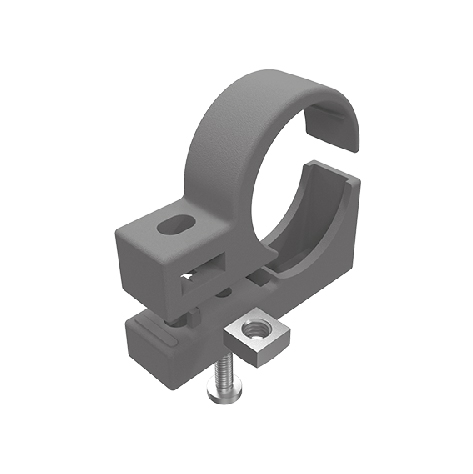

Mounting Clamp D30 (Set)
Color:Mounting clamp: Gray Spacer: GrayDelivery Countries:WorldwideDescription:To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30Material:Mounting clamp: Plastic PA Spacer: Plastic PA Assembly set: SteelSet:1 mounting clamp 1 spacer 1 square nut DIN 557 - M5 1 self-tapping screw SF4 x 12Surface:Assembly set: Zinc plated
T-Connector Plate D30 (Set)
Delivery Countries:WorldwideDescription:To connect a tubular frame profile with Ø 30 mm outer diameter with an aluminum profile at right angles; Screw connetion to the core hole M6 of the tubular frame profile Ø 30 mm or to the threaded sleeve AL D30 M6 for tubular frame profilesMaterial:SteelSet 1:1 T-connector plate, 2 T-slot nuts - slot 6 - M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 12, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Set 2:1 T-connector plate, 1 double T-slot nut - slot 8 - 2x M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 14, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Surface:Zinc plated
Panel Clip D30
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To temporarelly attach panels to tubes or tubular frame profiles with Ø 30 mm outer diameter; For screwing the surface element a hexagon nut M5 can be inserted in the panel clip D30Material:Plastic PA, glass ball reinforcedTip:Compatible Hexagon Nuts see 4DIN934M5M
Variable Holding Bracket AL D30
Assembly Set 1:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Assembly Set 2:2 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Delivery Countries:WorldwideDescription:Transition between roller track profiles with varying inclination, to mount roller track profiles AL at different angles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:SteelSurface:Zinc plated

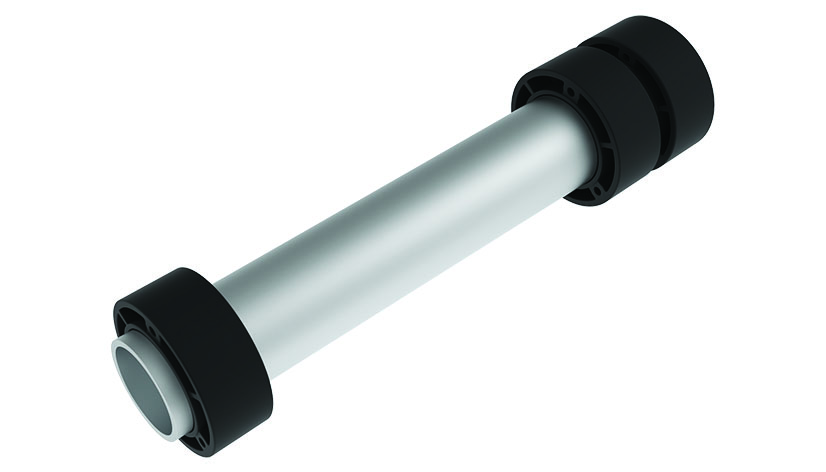

Roller Ø 46.5 for Tubular Frame Profiles
Color:BlackDelivery Countries:WorldwideDescription:For lateral guiding or supporting at the transition from roller tracksMaterial:Plastic PA, carbon fiber reinforced

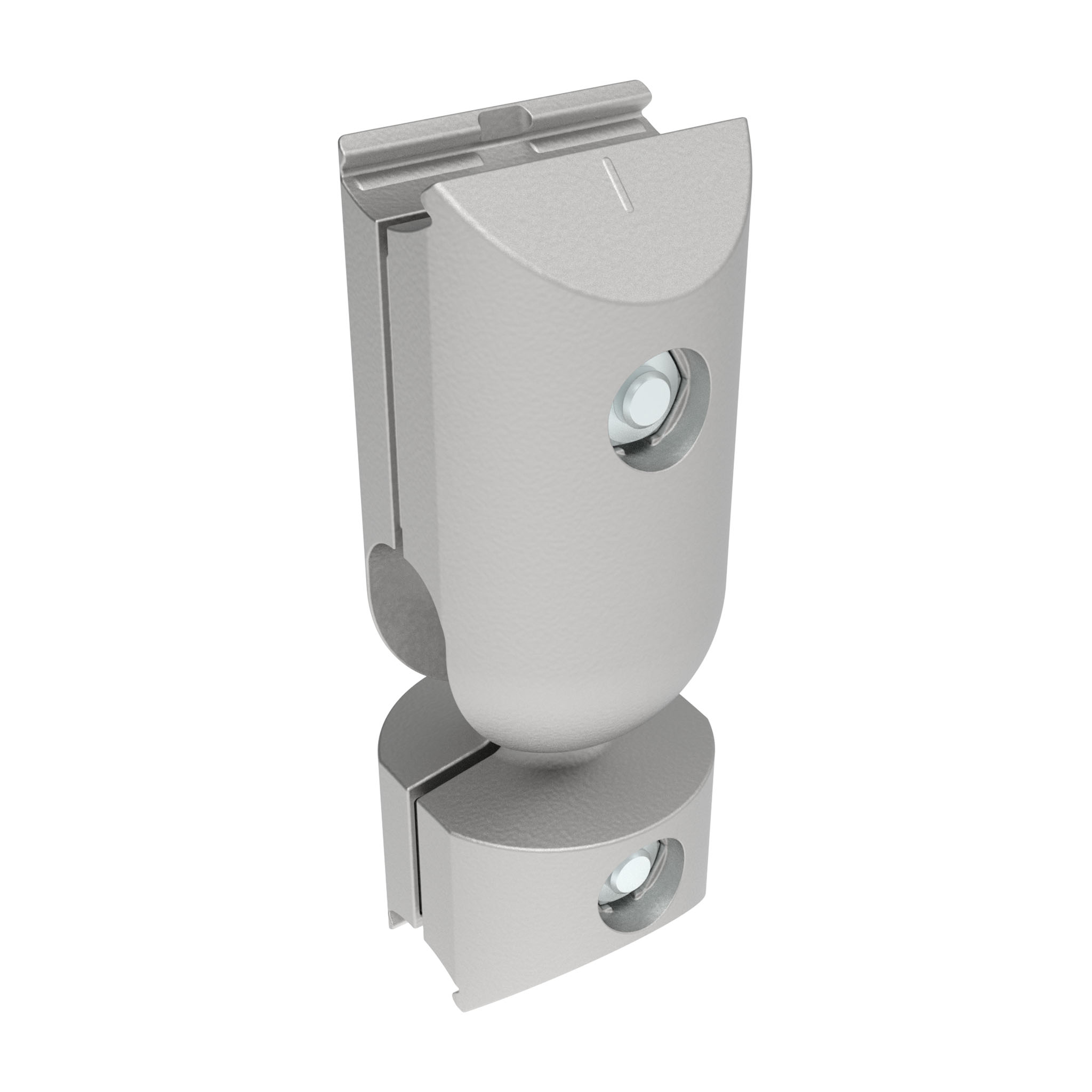

Cross Ball Connector D30 (Set)
Delivery Countries:WorldwideDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

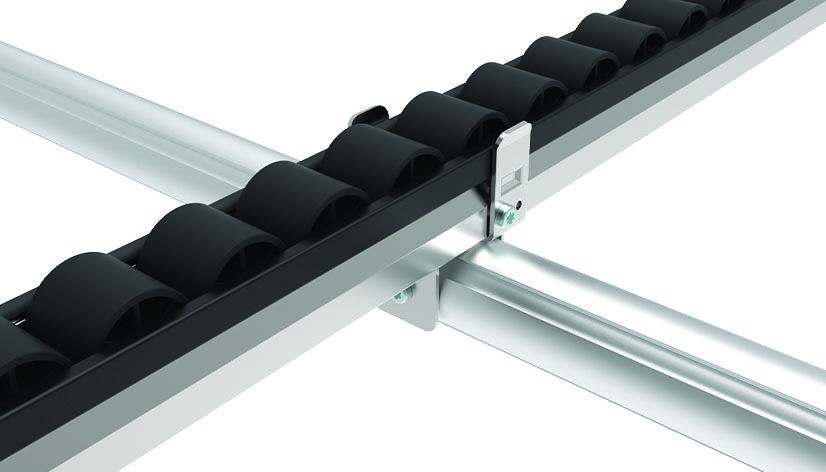

Mounting Bracket XST D30
Assembly Set:4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3,9 x 16Delivery Countries:WorldwideDescription:To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 30 mm outer diameterMaterial:SteelSpecials:Other surfaces, other colors on requestSurface:Zinc plated

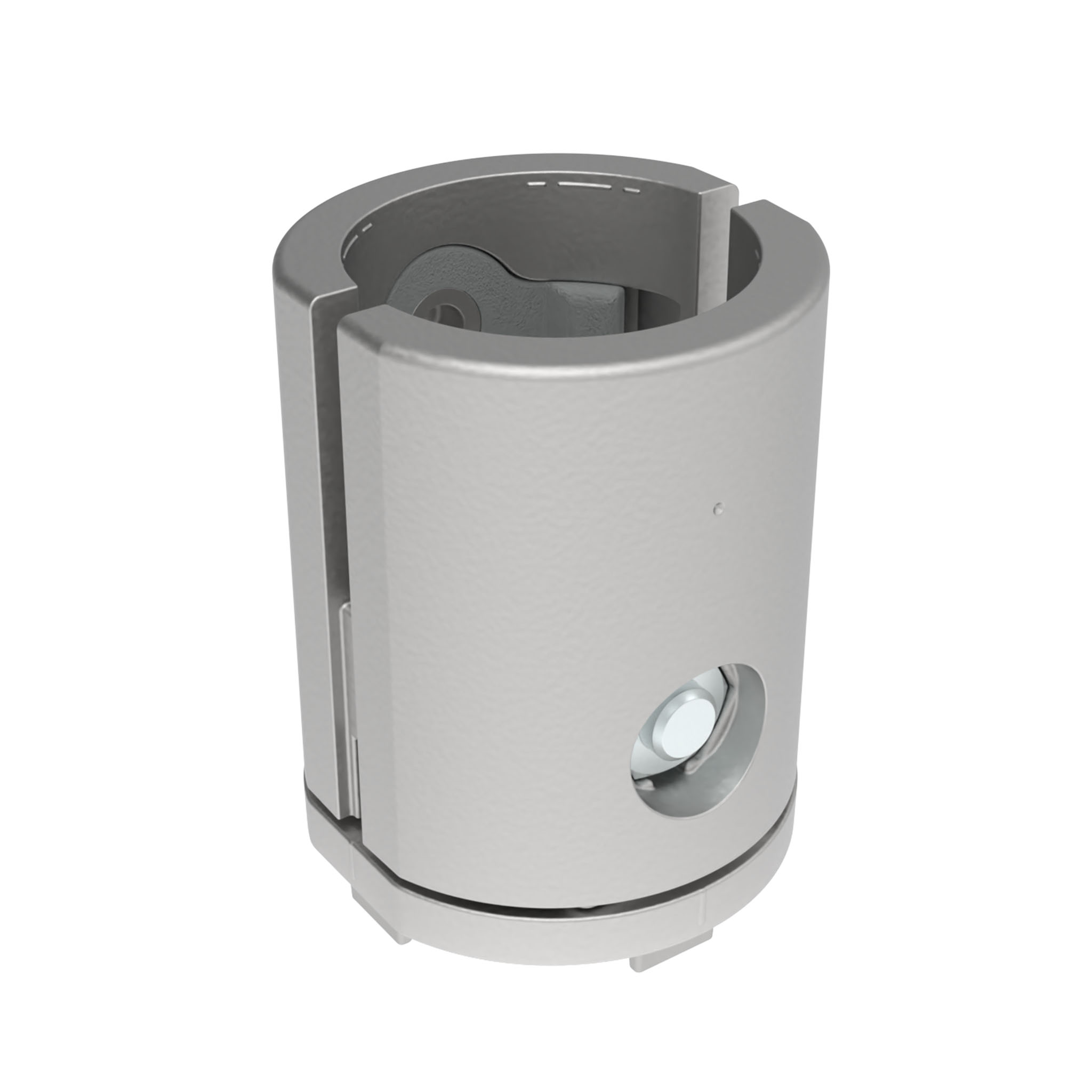

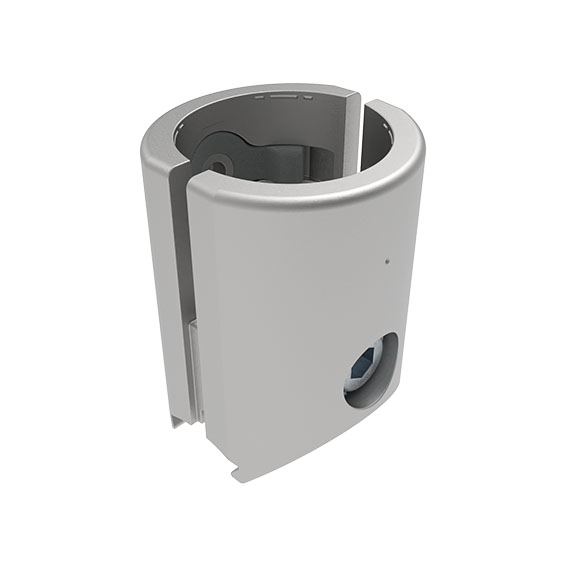

Outer T-Connector D30 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

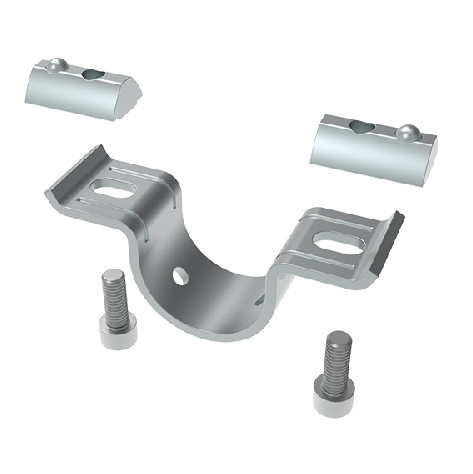

Mounting Bracket D30 (Set)
Delivery Countries:WorldwideDescription:To support an roller track AL or a aluminum profile slot 8 on a crossing tubular frame profile with Ø 30 mm outer diameterMaterial:SteelSet:1 mounting bracket, 2 T-slot nuts - slot 8 - M6, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Surface:Zinc plated

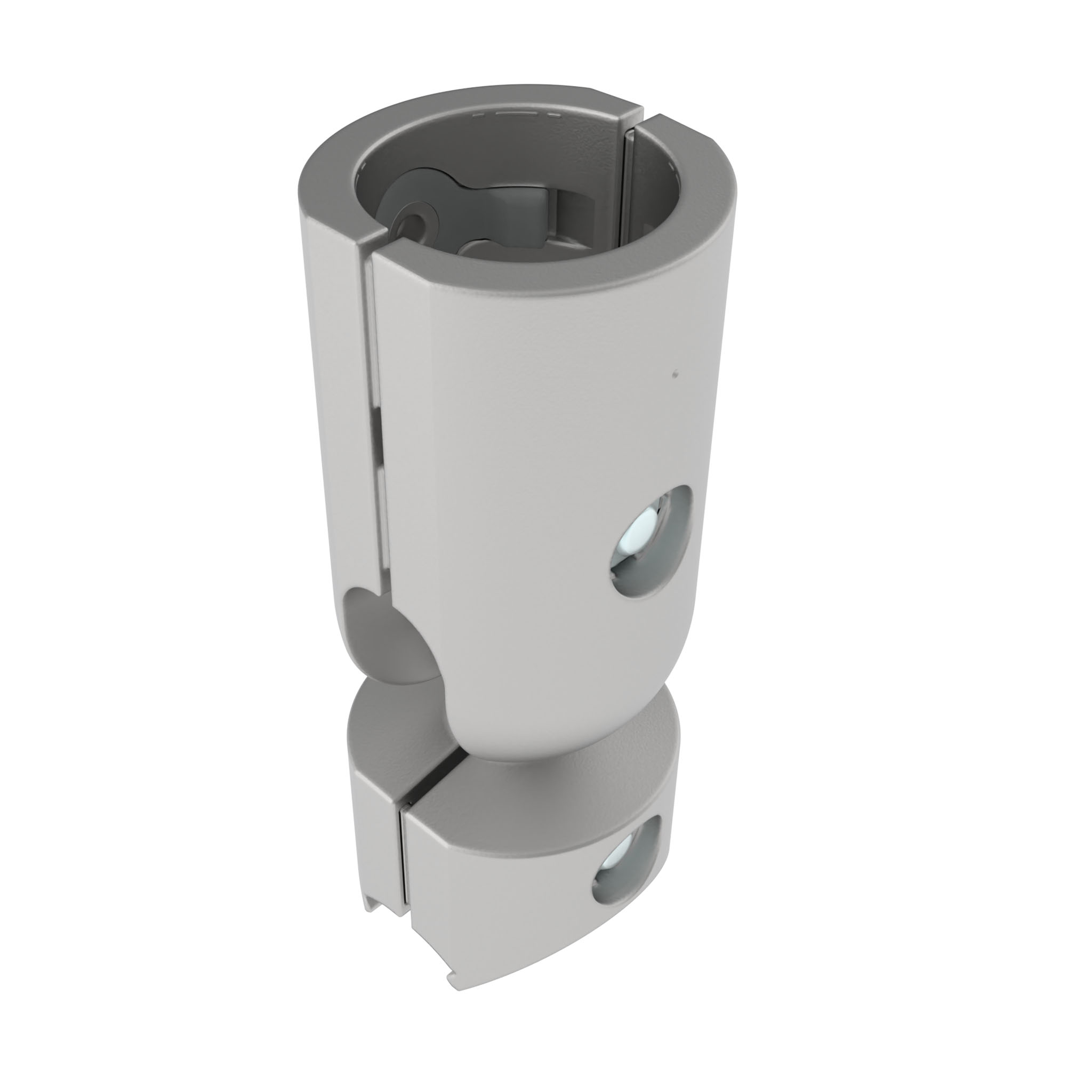

Outer Ball Connector D30 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Vario Block AL D30
Delivery Countries:WorldwideDescription:To attach panels firmly to tubular frame profiles with Ø 30 mm outer diameter; ESD electrostatical dischargingMaterial:Vario block AL: Aluminum die-cast Assembly set: SteelSet:1 vario block AL - 2-part, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 square nut DIN 557 - M6 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Specials:Other surfaces, other colors on requestSurface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07
Top Corner Suspension D30 (Set)
Delivery Countries:WorldwideDescription:For putting in plates, shelf boards or work piece carriers horizontally on tubular frame profiles with Ø 30 mm outer diameter; With holes to screw on tubular frame profile and plateMaterial:Top corner suspension: Steel Screws: SteelSet:1 top corner suspension 2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Surface:Top corner suspension: Zinc plated; Screws: Zinc platedTip:Please note for cutting table tops to size: Tubular Frame Connectors D30 require a 5 mm gap all the way around

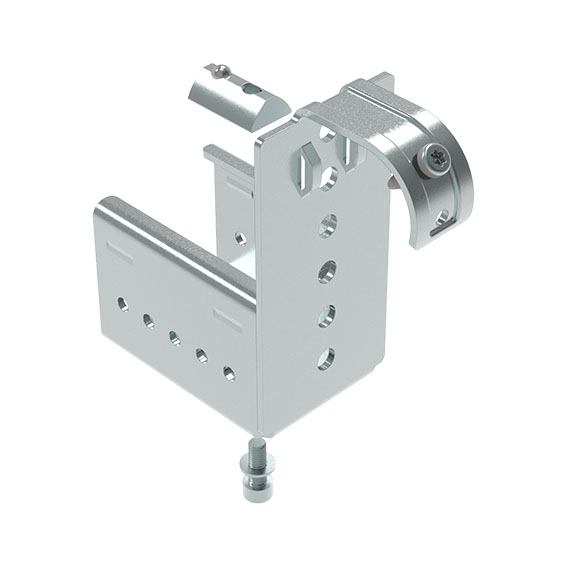

Holding Bracket AL D30
Assembly Set:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Delivery Countries:WorldwideDescription:To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:SteelSurface:Zinc plated

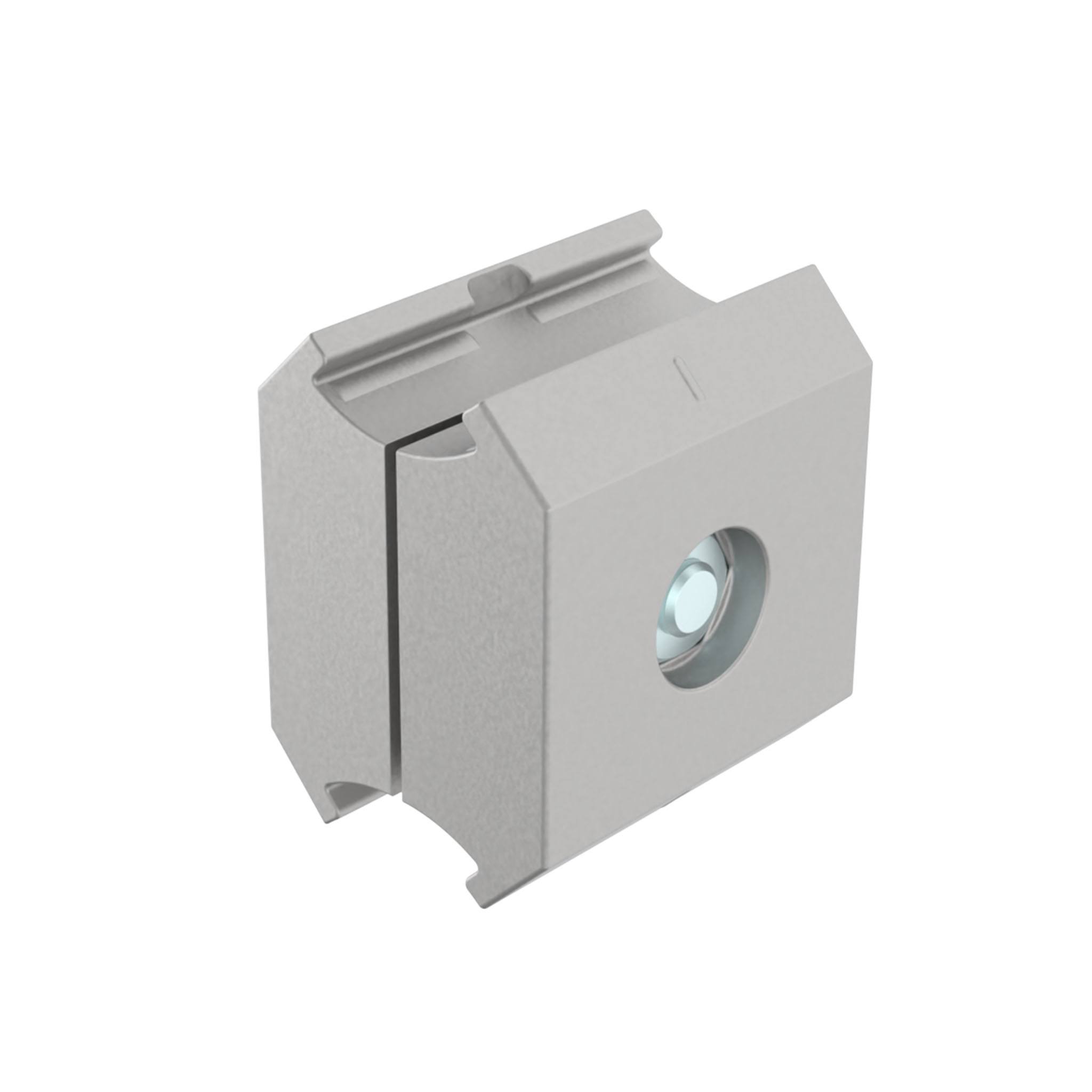

Parallel Connector D30 (Set)
Delivery Countries:WorldwideDescription:To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for parallel connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07

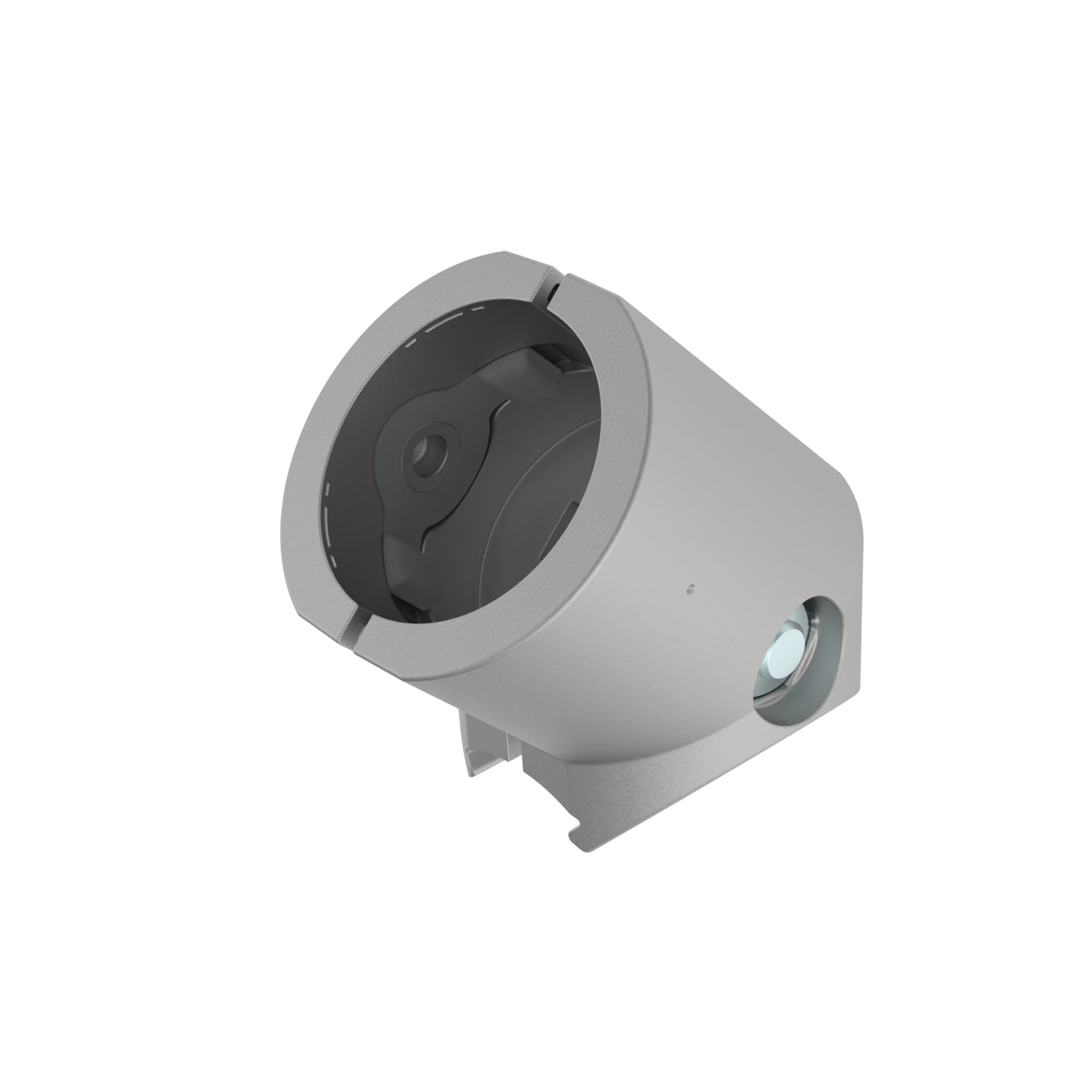

Angle Connector D30, 45° (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Outer Ball Butt Connector D30 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball butt connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Threaded Sleeve AL D30
Delivery Countries:WorldwideDescription:To fix leveling feet or casters to the front of tubular frame profiles with Ø 30 mm outer diameterMaterial:Aluminum

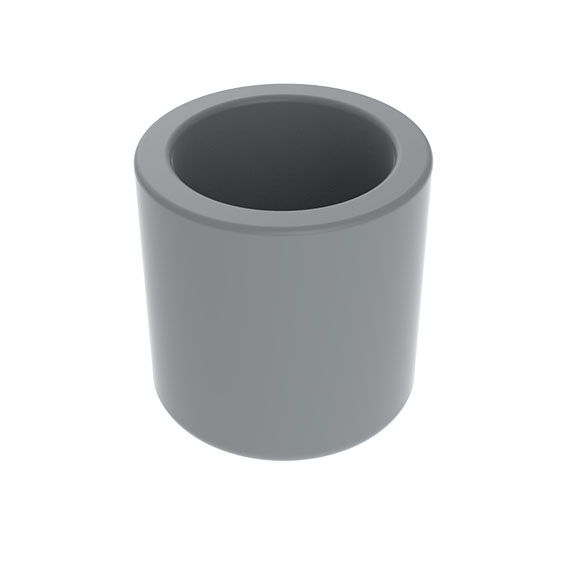

Protection Cap D30
Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To prevent damages, scratches or injuries by the end of tubular frame profiles with Ø 30 mm outer diameter; End-position damping in Karakuri/LCA applications; Prevents movement of tubular frame profiles on slippery surfaces and absorbs some vibration; Punch through safe due to added steel inlay, elastic and surrounding designMaterial:Protection cap: Plastic TPE Inlay: SteelSpecials:Other colors, other sizes on requestSurface:Inlay: Zinc plated

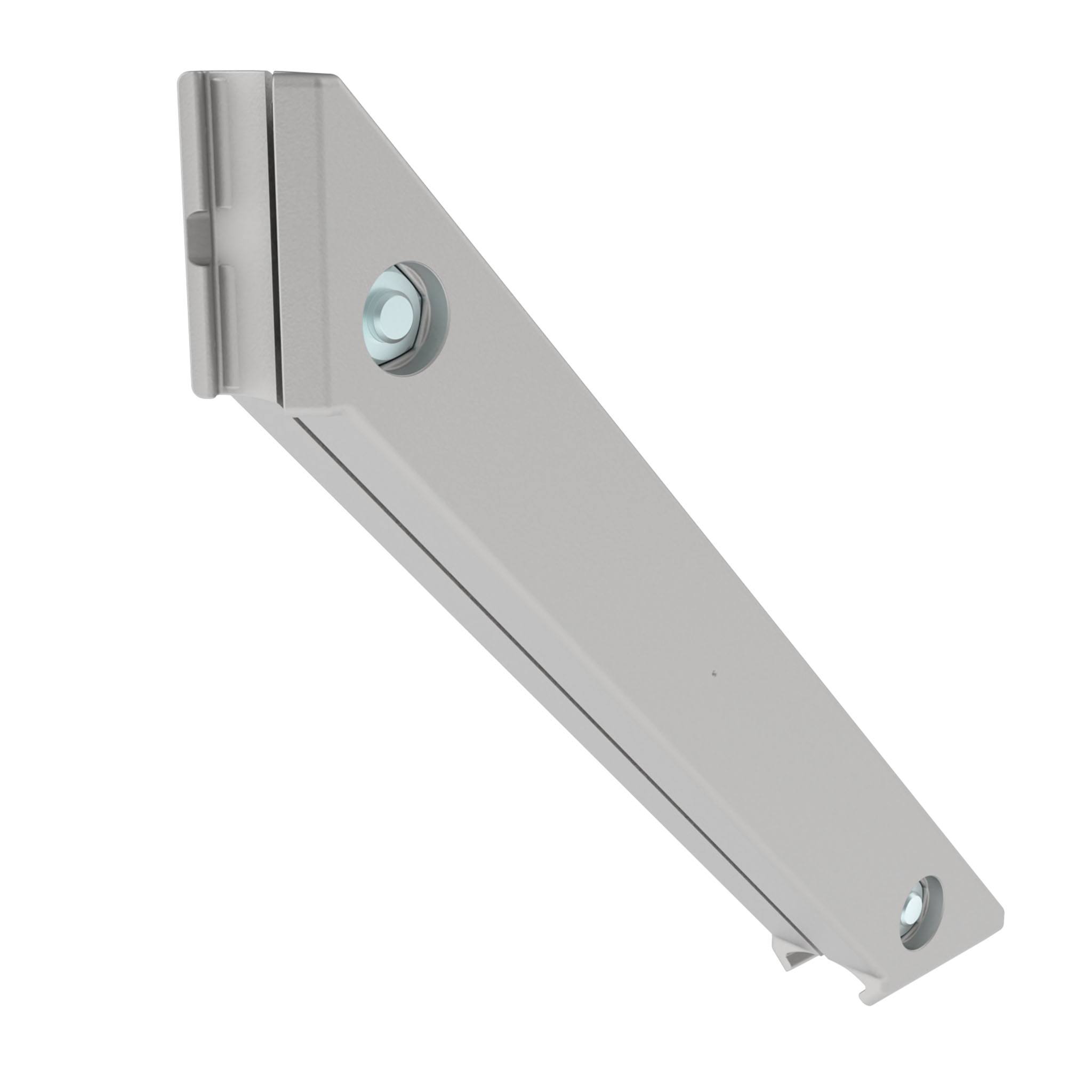

Angle Connector 2D30 (Set)
Delivery Countries:WorldwideDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Assembly set: Zinc platedTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07
Top Suspension D30 (Set)
Delivery Countries:WorldwideDescription:To mount table tops or shelf boards within a frame of tubular frame profiles with Ø 30 mm outer diameterMaterial:SteelSet:1 top suspension D30 1 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Surface:Zinc plated
