Angle Connector D30, 45° (Set)

Product information "Angle Connector D30, 45° (Set)"

Delivery Countries:
Worldwide

Description:

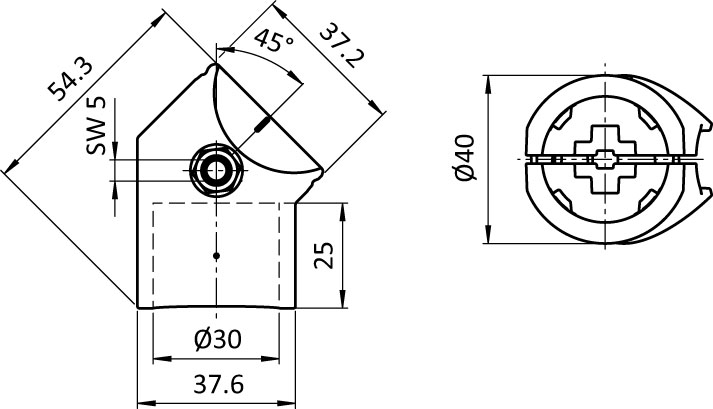

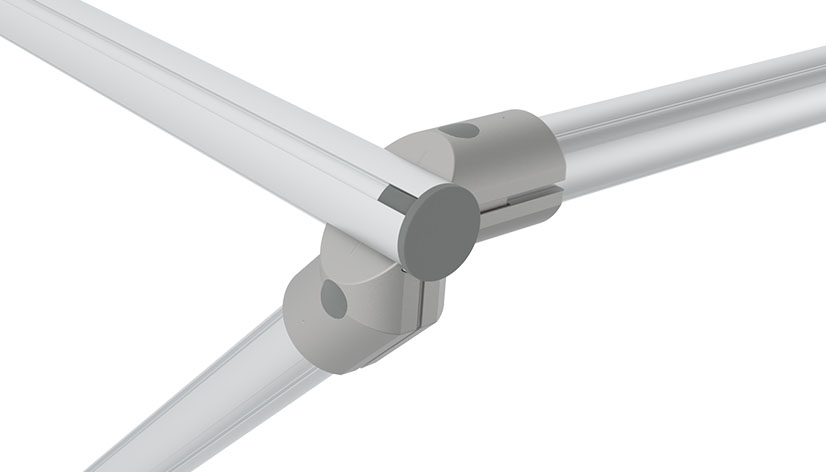

To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled set

Material:
Connector: Aluminum die-cast
Assembly set: Steel

Set:
2 components for angle connector D30, 45°,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28,
1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6

Surface:
Assembly set: Zinc plated

Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 102.0

Variants

Product ID ESD
099RV3045S01 ESD electrostatical discharging
