Mounting Clamp D30 (Set)

Product information "Mounting Clamp D30 (Set)"

Color:
Mounting clamp: Gray
Spacer: Gray

Delivery Countries:
Worldwide

Description:

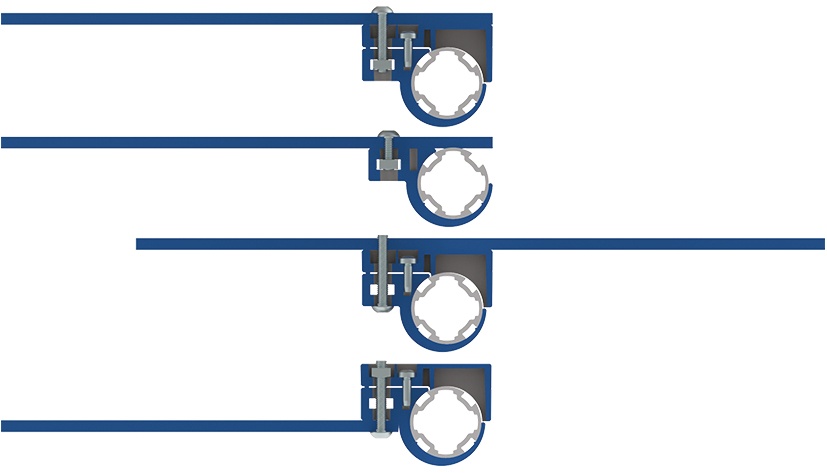

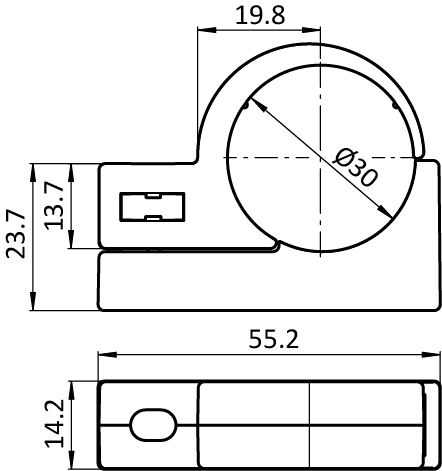

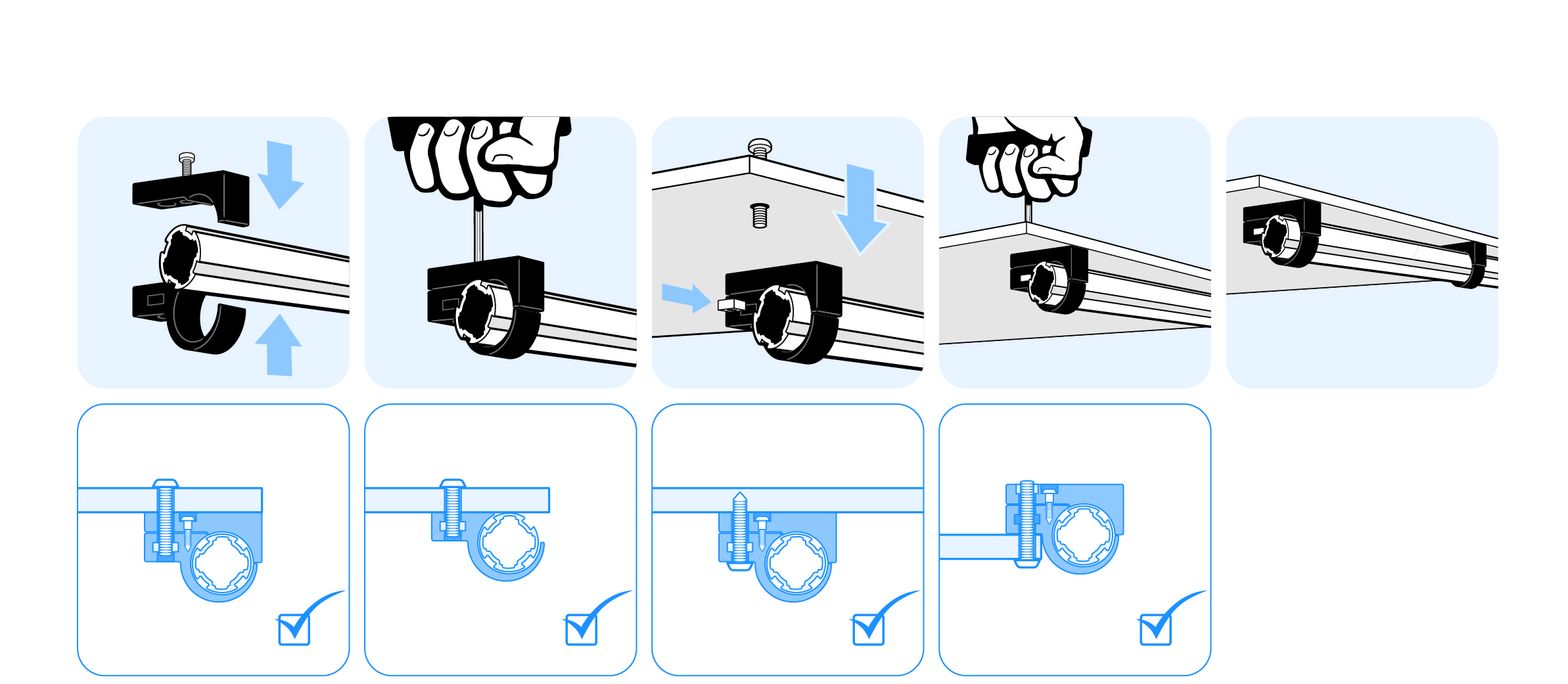

To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30

Material:
Mounting clamp: Plastic PA
Spacer: Plastic PA
Assembly set: Steel

Set:
1 mounting clamp
1 spacer
1 square nut DIN 557 - M5
1 self-tapping screw SF4 x 12

Surface:
Assembly set: Zinc plated
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 39269097
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 17.2
Zolltarifnummer: 39269097900
pA Number: 147058

Variants

Product ID Profile
093PD30NS01 I
