Top Corner Suspension D30 (Set)

Product information "Top Corner Suspension D30 (Set)"

Delivery Countries:
Worldwide

Description:

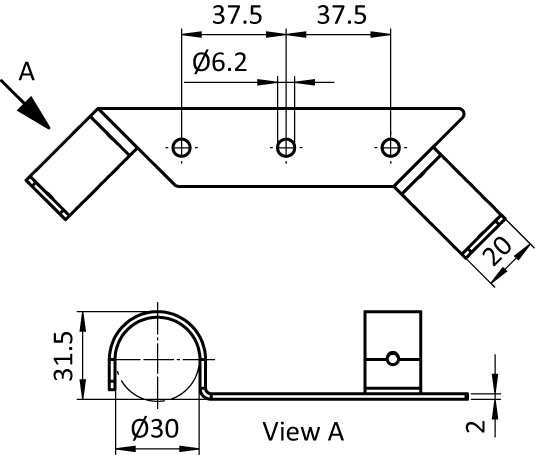

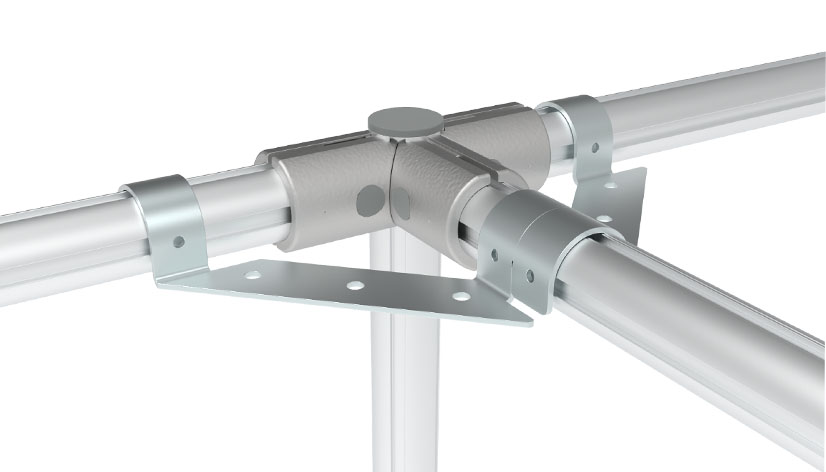

For putting in plates, shelf boards or work piece carriers horizontally on tubular frame profiles with Ø 30 mm outer diameter;
With holes to screw on tubular frame profile and plate

Material:
Top corner suspension: Steel
Screws: Steel

Set:
1 top corner suspension
2 self-drilling screws DIN 7504 form N - 3.9 x 16

Surface:
Top corner suspension: Zinc plated;
Screws: Zinc plated

Tip:
Please note for cutting table tops to size: Tubular Frame Connectors D30 require a 5 mm gap all the way around
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 73269098
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 94.0
Zolltarifnummer: 73269098900
pA Number: 146519

Variants

Product ID Profile
099RV3090QS02 I
