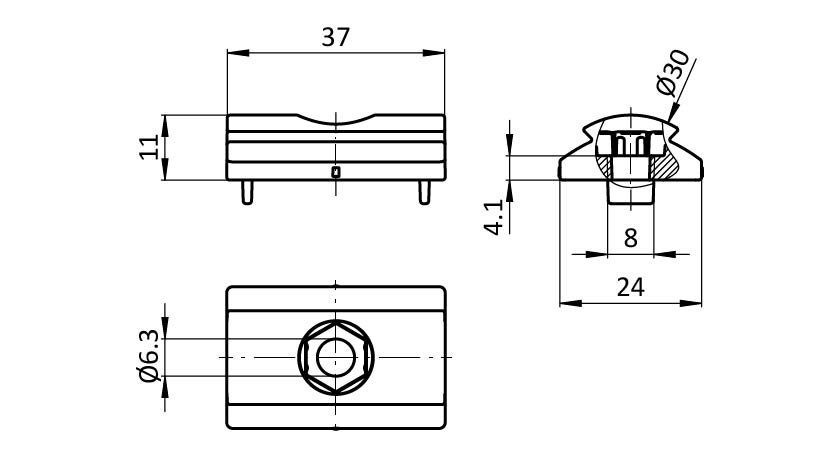

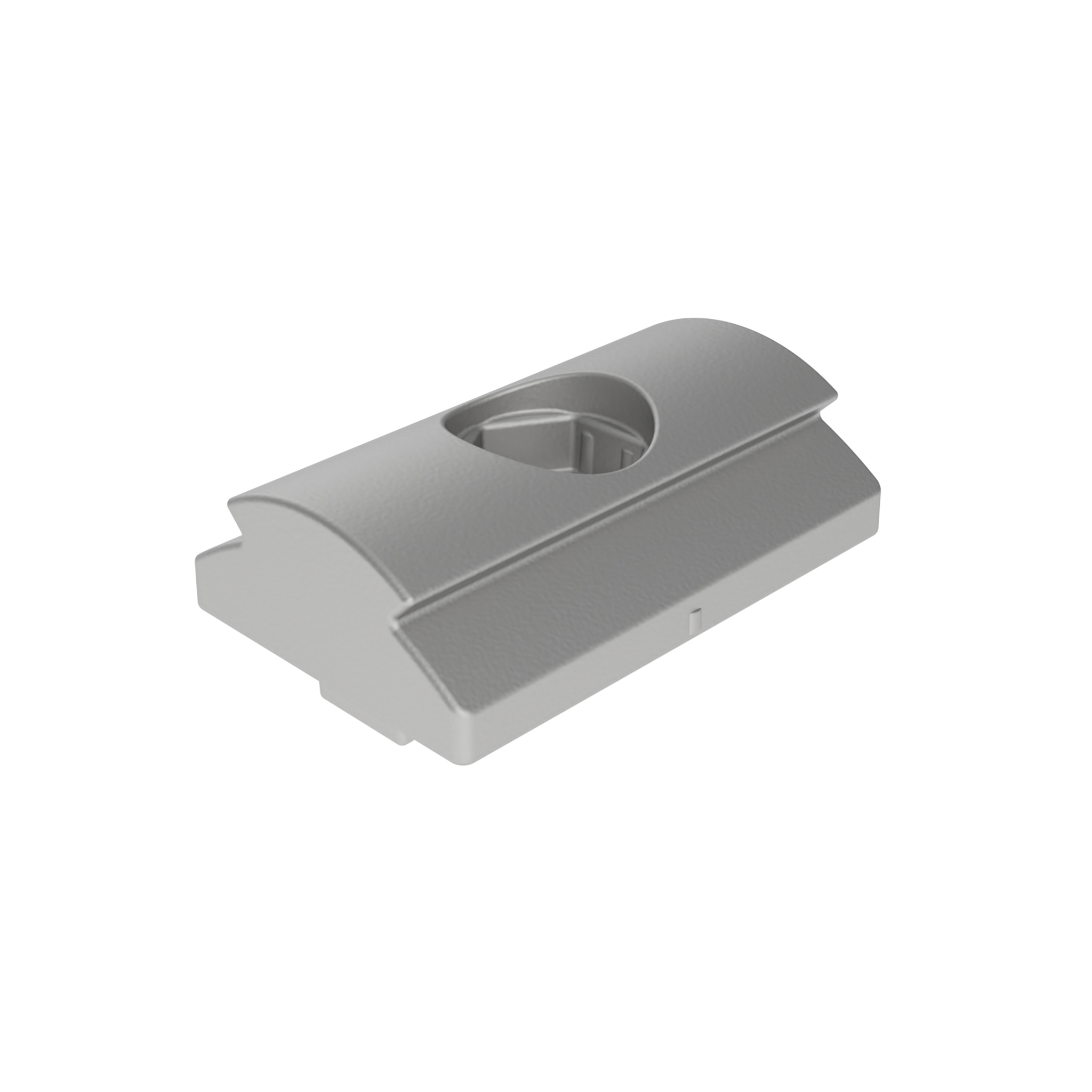

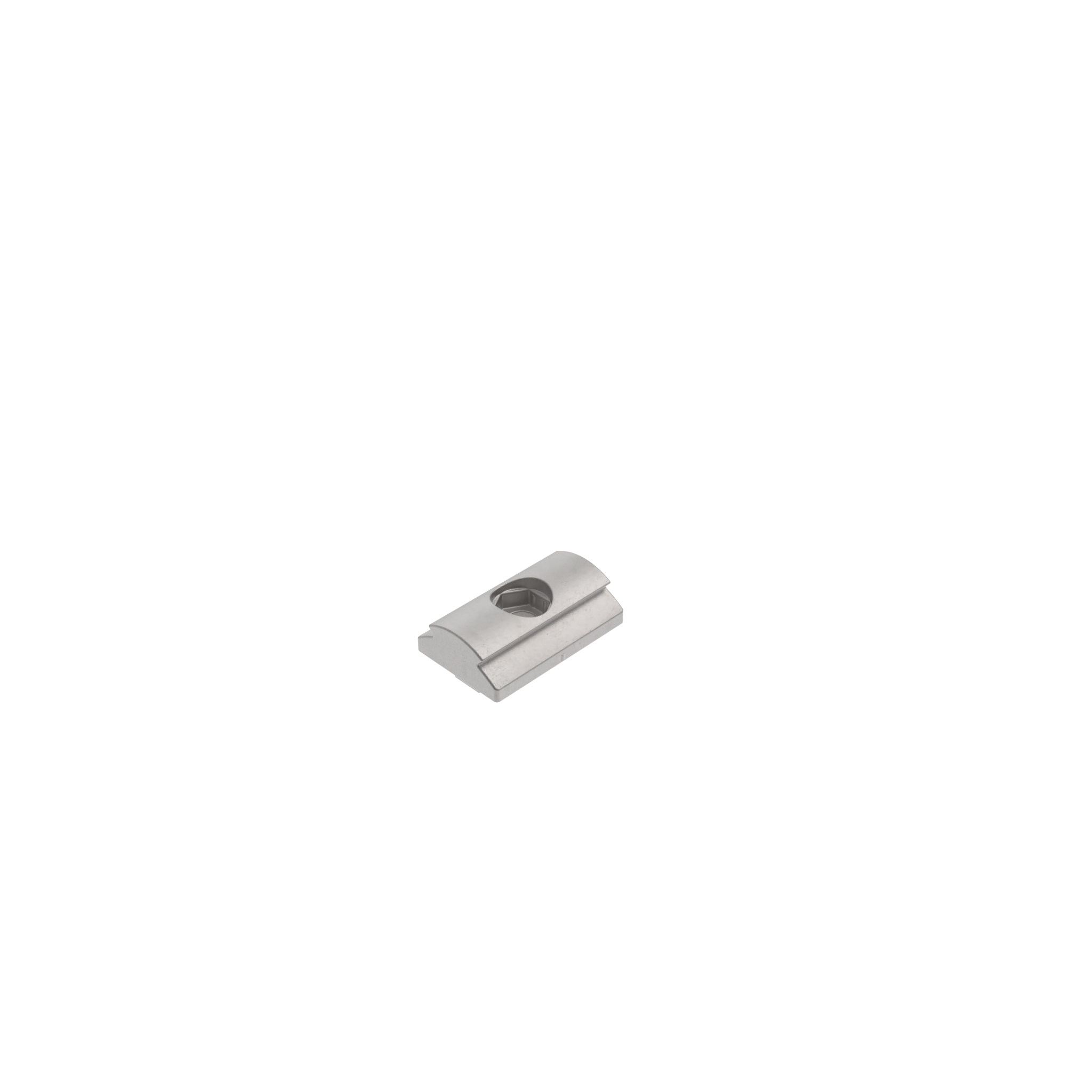

Adapter Piece D30, Slot 8
€0.00

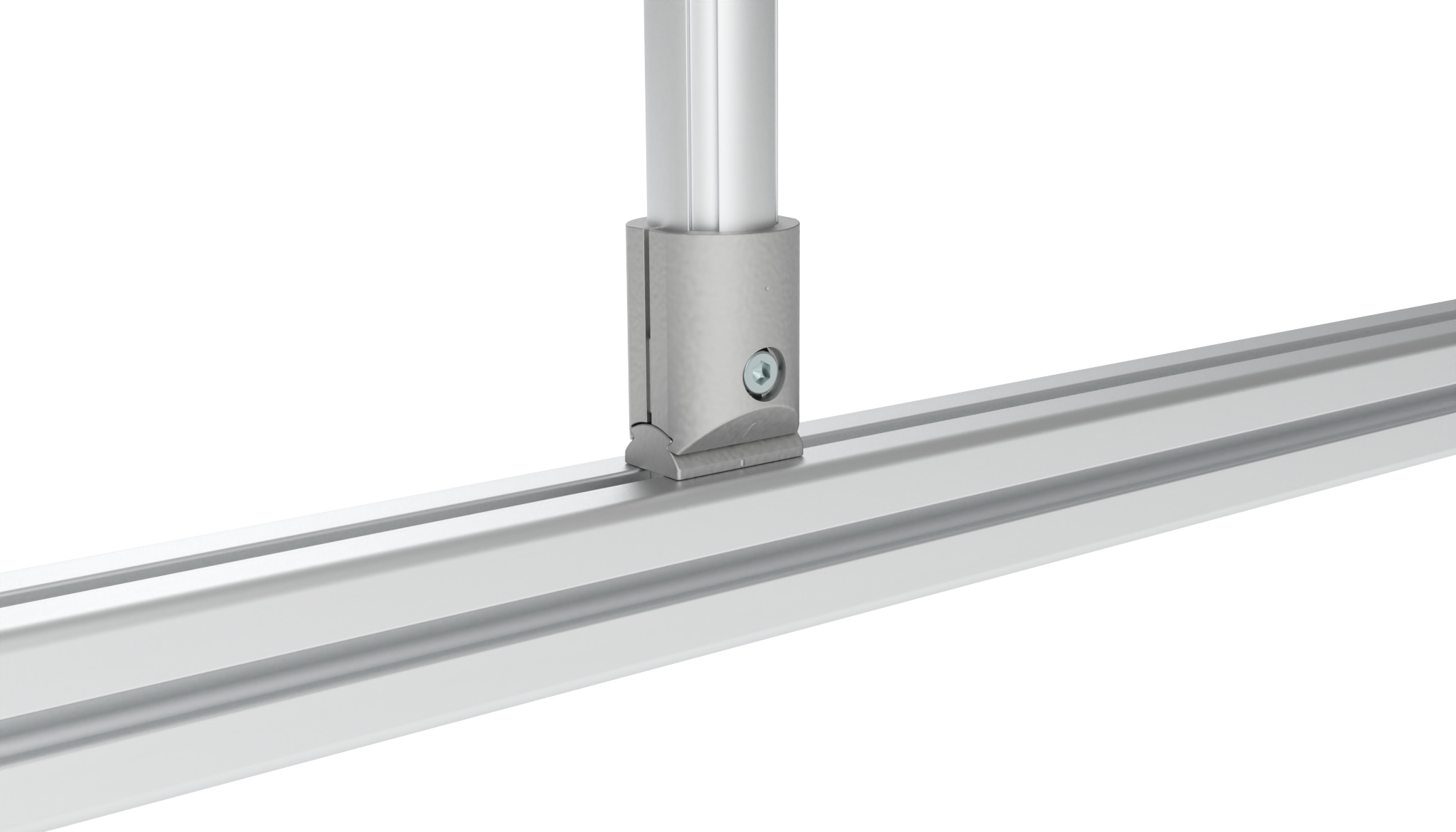

To connect tubular frame profiles with slot 8 aluminum profiles
Aluminum die-cast
Color:
V_Plain
Tip:
Compatible Outer Ball Connector D30 (Set) see 099RV30KS01
Compatible Outer T-Connector D30 (Set) see 099RV3090LS01
Compatible Cross Ball Connector D30 (Set) see 099RV30KS04
Compatible Cross Connector D30 (Set) see 099RV30XS01
Compatible Parallel Connector D30 (Set) see 099RV30PS02
Compatible Angle Connector 2D30 (Set) see 099RV3090QS01
Compatible Angle Connector D30, 45° (Set) see 099RV3045S01
Compatible T-slot Nut see 096006
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For tubular frame profiles |
| Weight (g): | 17.0 |
| ERP Number: | 200252 |
Product Portraits
Classifications
- Zolltarifnummer
- 73182900900
- Customs Tariff Number Export
- 73182900
Certificates
Matching accessories
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Assembly set: Zinc platedSet:4 components for outer ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Delivery Countries:Worldwide
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Assembly set: Zinc platedSet:2 components for outer T-connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Delivery Countries:Worldwide
Description:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Assembly set: Zinc platedSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Delivery Countries:Worldwide
Description:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Assembly set: Zinc platedSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Delivery Countries:Worldwide
Description:To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Assembly set: Zinc platedSet:2 components for parallel connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07Delivery Countries:Worldwide
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Assembly set: Zinc platedSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07Delivery Countries:Worldwide
Description:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSurface:Assembly set: Zinc platedSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Delivery Countries:Worldwide
Description:Roll-in T-slot nut with spring loaded ball Version with color code for visual identification of thread sizeMaterial:T-slot nut: Steel / stainless steel Ball standard version: Stainless steel Ball color code version: Plastic POM Spring: Spring steelSurface:T-slot nut: Zinc-plated / plain Ball standard version: Plain Spring: PlainColor:Ball color code version: Yellow, red, blue, green, blackSpecials:ESD electrostatical discharging, different lengths with multiple threads in different sizes available on requestDelivery Countries:Worldwide / North America
