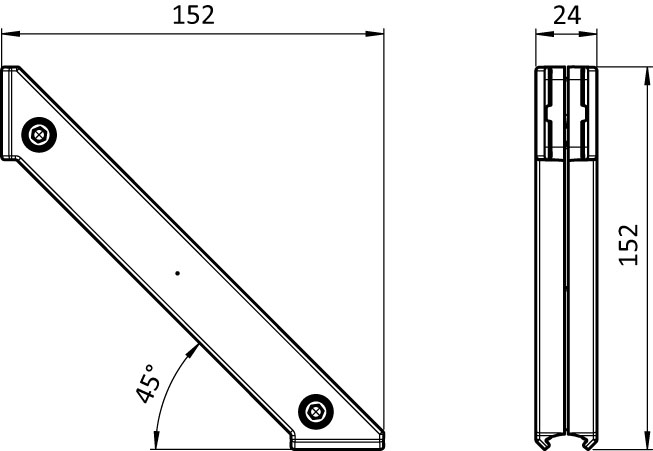

Angle Connector 2D30 (Set)

Product information "Angle Connector 2D30 (Set)"

Delivery Countries:
Worldwide

Description:

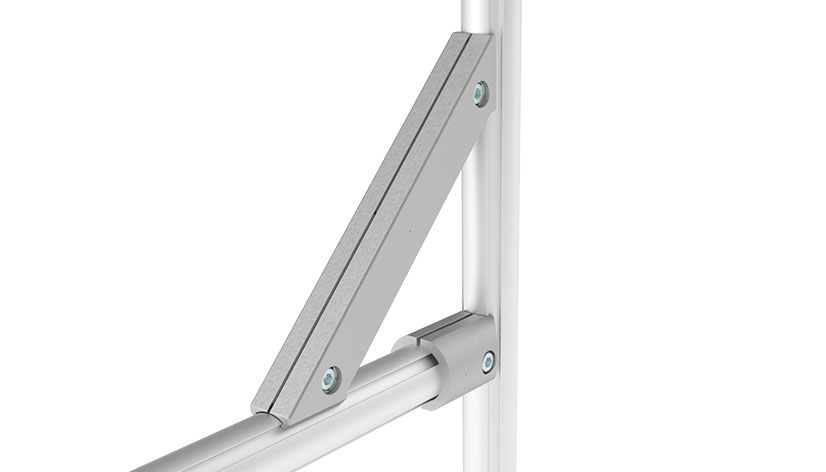

To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle;
Completely pre-assembled set

Material:
Connector: Aluminum die-cast
Assembly set: Steel

Set:
2 components for angle connector 2D30,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6

Surface:
Assembly set: Zinc plated

Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 201.8

Variants

Product ID ESD Profile
099RV3090QS01 ESD electrostatical discharging I
