Cover Cap for Tubular Frame Connectors D30

Product information "Cover Cap for Tubular Frame Connectors D30"

Color:
Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

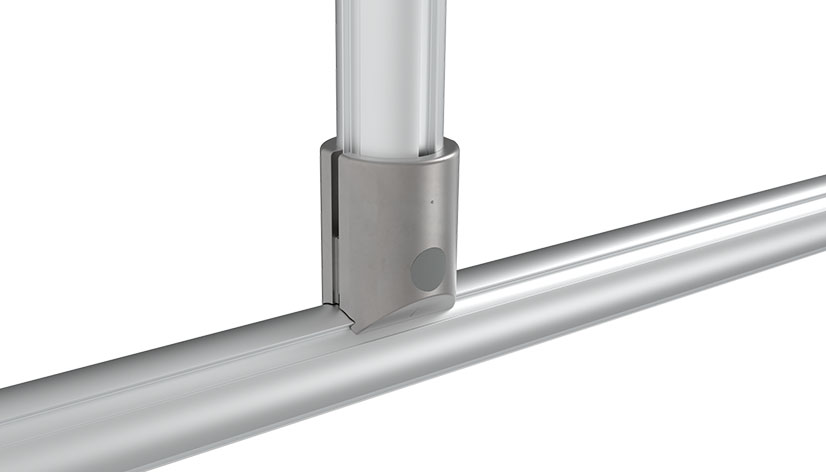

To cover the screw hole of connectors for tubular frame profiles with Ø 30 mm outer diameter

Material:
Plastic PA, glass fiber reinforced
(ECLASS 6.0): 23079202
(ECLASS 7.0): 23079202
(ECLASS 8.0): 23079202
(ECLASS 9.0): 23079202
(ECLASS 10.0): 23079202
(ECLASS 11.0): 23111302
(ECLASS 12.0): 23111302
(ECLASS 13.0): 23111302
Customs Tariff Number Export: 39269097
Model: For tubular frame profiles
Pack Quantity: 100 pieces
Weight (g): 0.17
Zolltarifnummer: 39269097900
pA Number: 147125

Variants

Product ID Profile Fig.
099RV30CC06 I
099RV30CC07 I
099RV30CC09 I

CAD Downloads

Certificates
